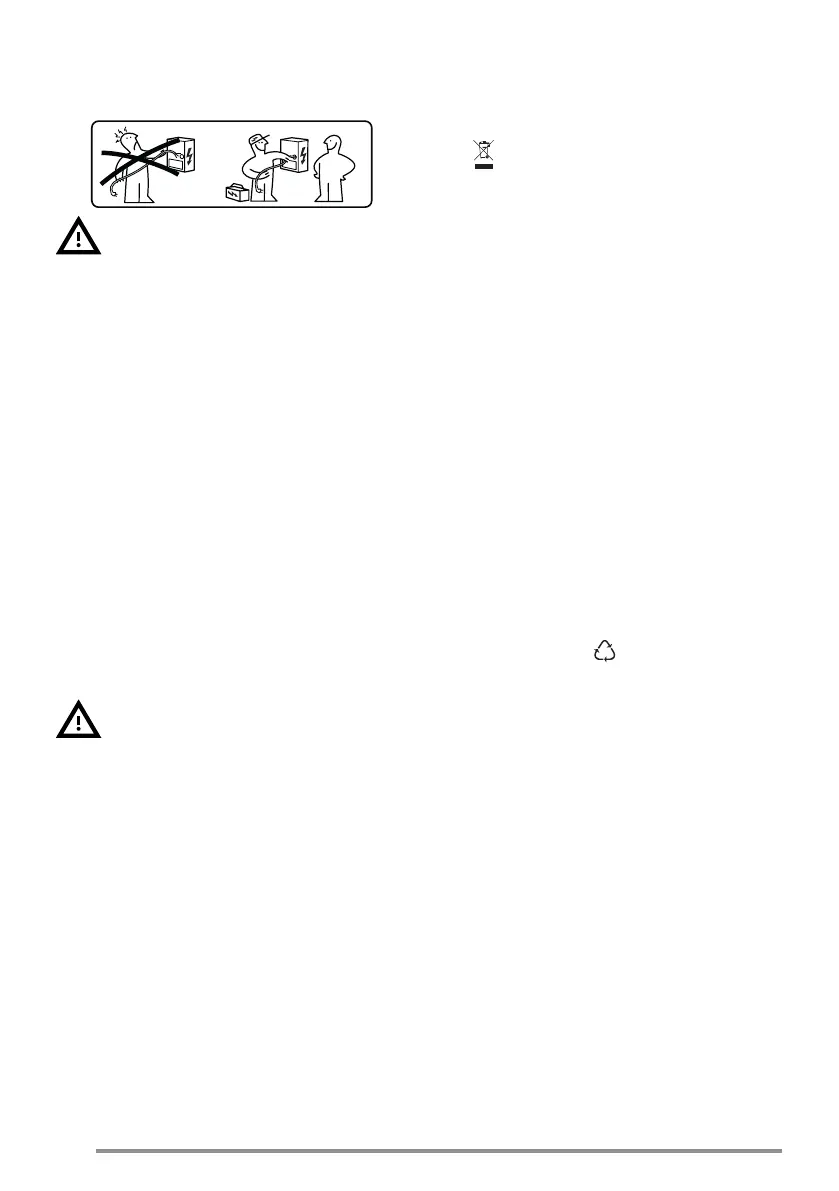

5. ELECTRICAL
CONNECTIONS
WARNING: All electrical connec-
tions must be carried out by an au-
thorised installer.
• Follow the connection diagram (on
the under side of the product).
• This appliance has a "Y" type con-
nection. It is advisable to use a 3 x 4
mm² H05V2V2-F power cable, with
minimum conductor section: 4 mm².
External cable diameter: min 8 mm -
max 12 mm.
• The connection terminals can be ac-
cessed by removing the junction box
cover.
• Check that the domestic power sup-
ply characteristics (voltage, max-
imum power and current) are compat-
ible with those of the appliance.
• Connect the appliance as outlined in
the installation manual (in compliance
with the standard supply voltages in
force under national law).
Attention! Do not weld any of the
cables!
For TWO-PHASE and THREE-PHASE
connections:
• Obtain a 5 x 2.5mm² H05V2V2-F type
power cable.
• Minimum section of conductors: 2.5
mm².
• External diameter of the power cable:
min 7 mm - max 15 mm.
• If using the 5 x 2.5 mm² H05V2V2-F
power cable, follow the instructions
below: for three-phase connection,
separate the 2 wires and remove the
blue sheaths from the grey wires.
6. ENVIRONMENTAL
ASPECTS
Disposal of household appliances
The symbol on the product or pack-
aging indicates that the product must
not be disposed of with normal domestic
waste. The product must be disposed of
at a specialist recycling centre for elec-
trical and electronic components. By en-
suring that this product is disposed of
correctly, you will help prevent possible
negative consequences for the environ-
ment and health that might result from
its improper disposal. For more detailed
information on how to recycle this
product, please contact your local muni-
cipal offices, local waste disposal ser-
vice or the shop from which the product
was purchased.
The appliance complies with directive
2012/19/EU relating to reduction in the
use of dangerous substances in elec-
trical and electronic appliances and
waste disposal.
Disposal of packaging materials
Materials with the symbol can be re-
cycled. Dispose of the packaging in spe-
cial recycling collection bins.
Energy saving
You can save energy during everyday
cooking if you follow hints outlined be-
low.
• When you heat water, only use the
quantity you require.
• If it is possible, always put the lids on
the cookware.
• Place the pan on the hob before you
switch it on.
• Put smaller pans on the smaller cook-
ing areas.
• Put the pans directly in the centre of
the cooking area.
• Use residual heat to keep the food
warm or melt it.
8
