10

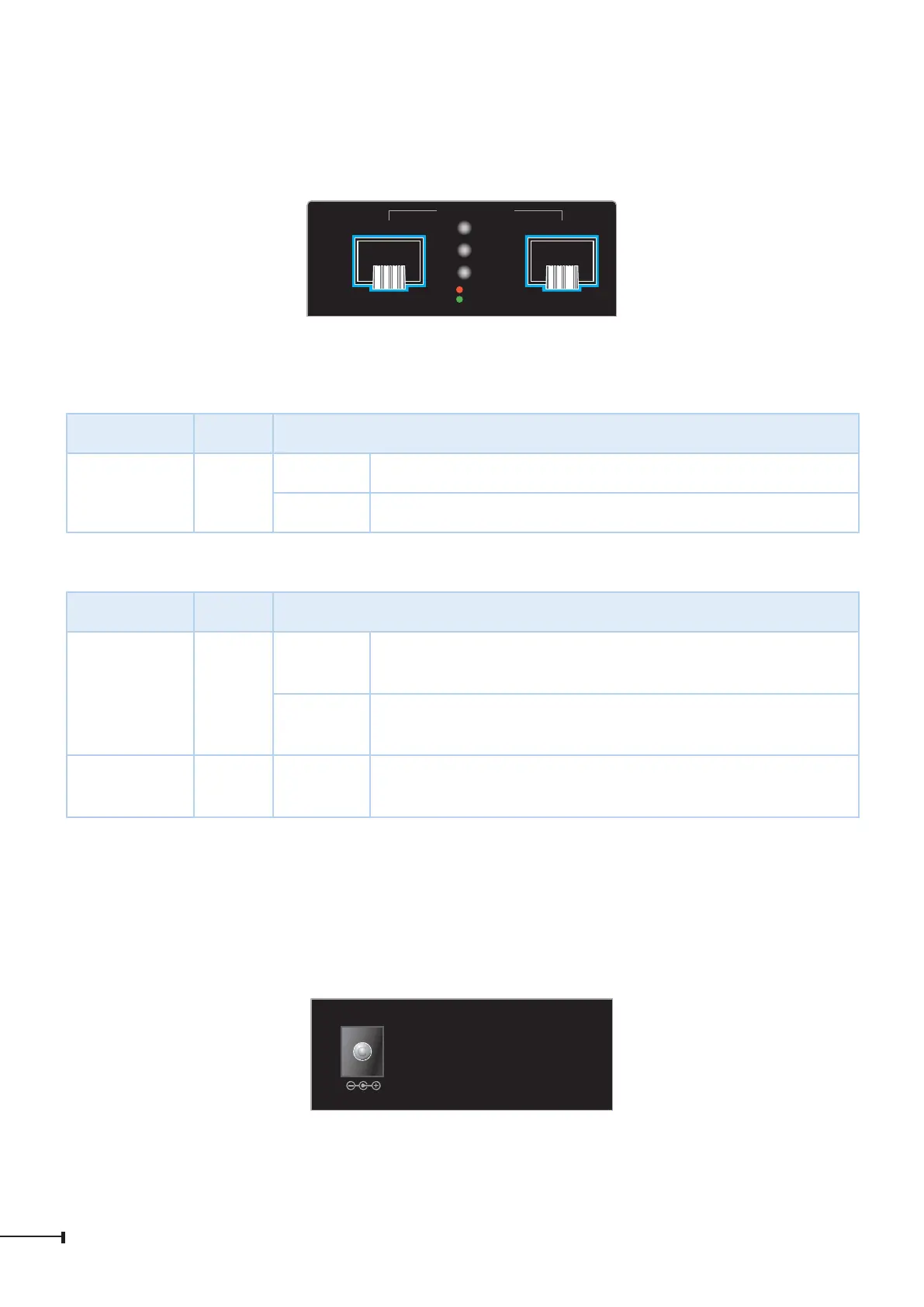

2.2 Converter Front Panel and LED Indicators
Figure 2-2 shows the front panel of the Media Converter.
10G/2.5G/1G/100
1 2
PWR
1
2
100/10G
1G/2.5G
10 Gigabit Ethernet Converter
XT-815A
Figure 2-2: XT-815A Front Panel
System
LED Color Function
PWR Green
Lights Power ON
O Power OFF
10GBASE-X SFP+ Interface
LED Color Function
1G/2.5G
LNK/ACT
Green
Lights
To indicate the port is running at 1000Mbps or
2500Mbps.
Blink
To indicate that the Switch is actively sending or
receiving data over that port.
10G/100
LNK/ACT
Amber Lights
To indicate the port is running at 10Gbps or
100Mbps and successfully established.
2.3 Rear Panel
The rear panel of the XT-815A consists of one DC jack, which accepts input power
with 5V DC, 2A.
5V DC
Figure 2-3: One DC jack for DC power input
