User’s Manual of WGS-4215 Series
17
Modbus TCP provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP protocol, the WGS-4215-Series can easily integrate with SCADA systems, HMI systems
and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet
switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring
and maintenance of the entire factory.

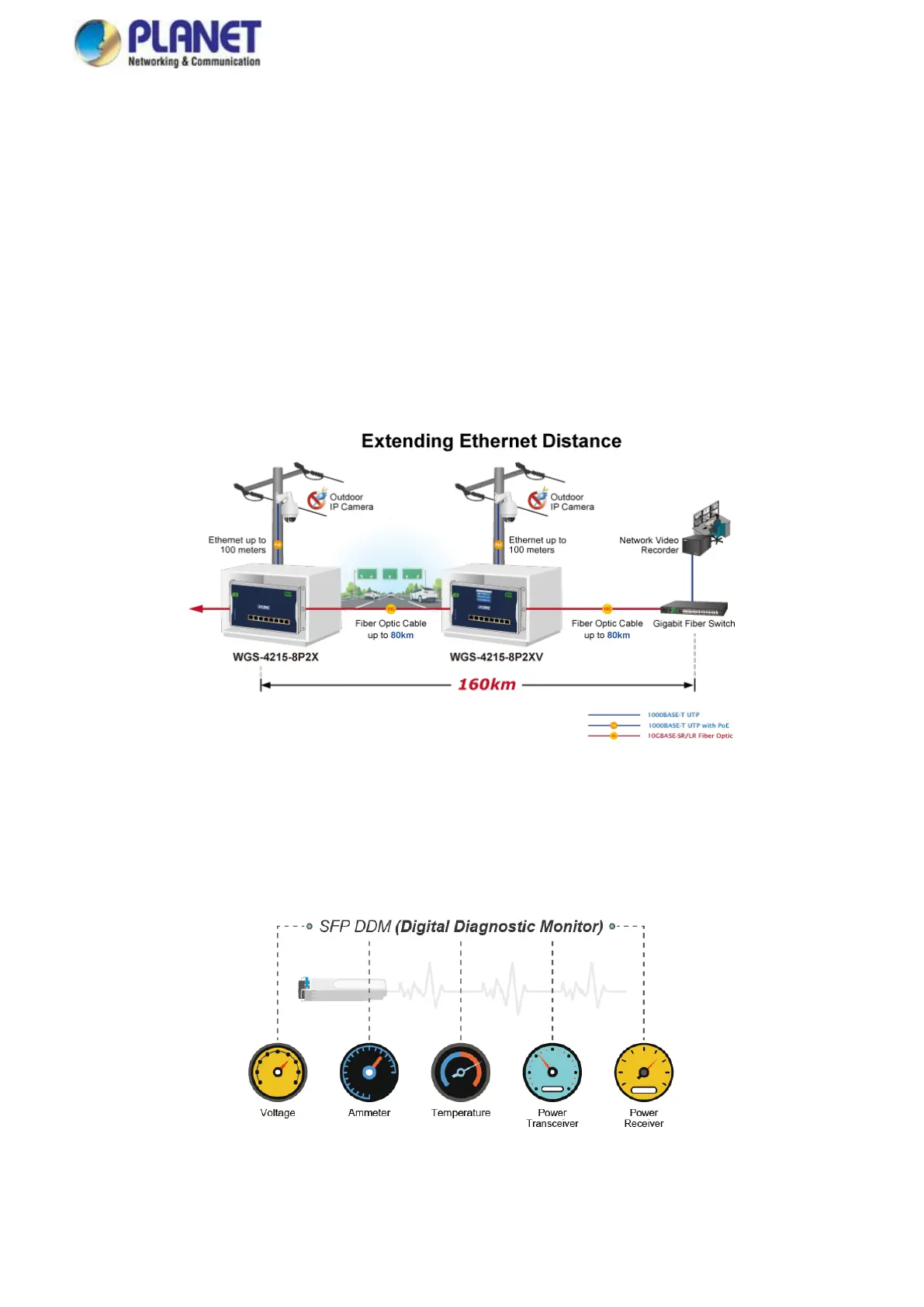

Flexibility and Extension Solution
The additional two SFP slots built in the WGS-4215-Series support multi-speed, 100BASE-FX, 1GBASE-SX/LX, 2.5GBASE-X
and 10GBASE-X SFP+ (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose
the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The
distance can be extended from 550 meters (multi-mode fiber) to 20/40/80 kilometers (single-mode fiber or WDM fiber). They are
well suited for applications within the enterprise data centers and distributions.
Intelligent SFP Diagnosis Mechanism
The WGS-4215-Series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily
monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and
transceiver supply voltage.
