12
4. Hardware Installation
This section describes how to install the Industrial Media Converter and makes
connections to it. Please read the following sections and perform the procedures in
the order being presented.
This section describes the functionalities of the Industrial Media Converter’s
components and guides you to installing it on the DIN rail and wall. Basic knowledge
of networking is assumed. Please read this chapter completely before continuing.
4.1 Wiring the Power Inputs

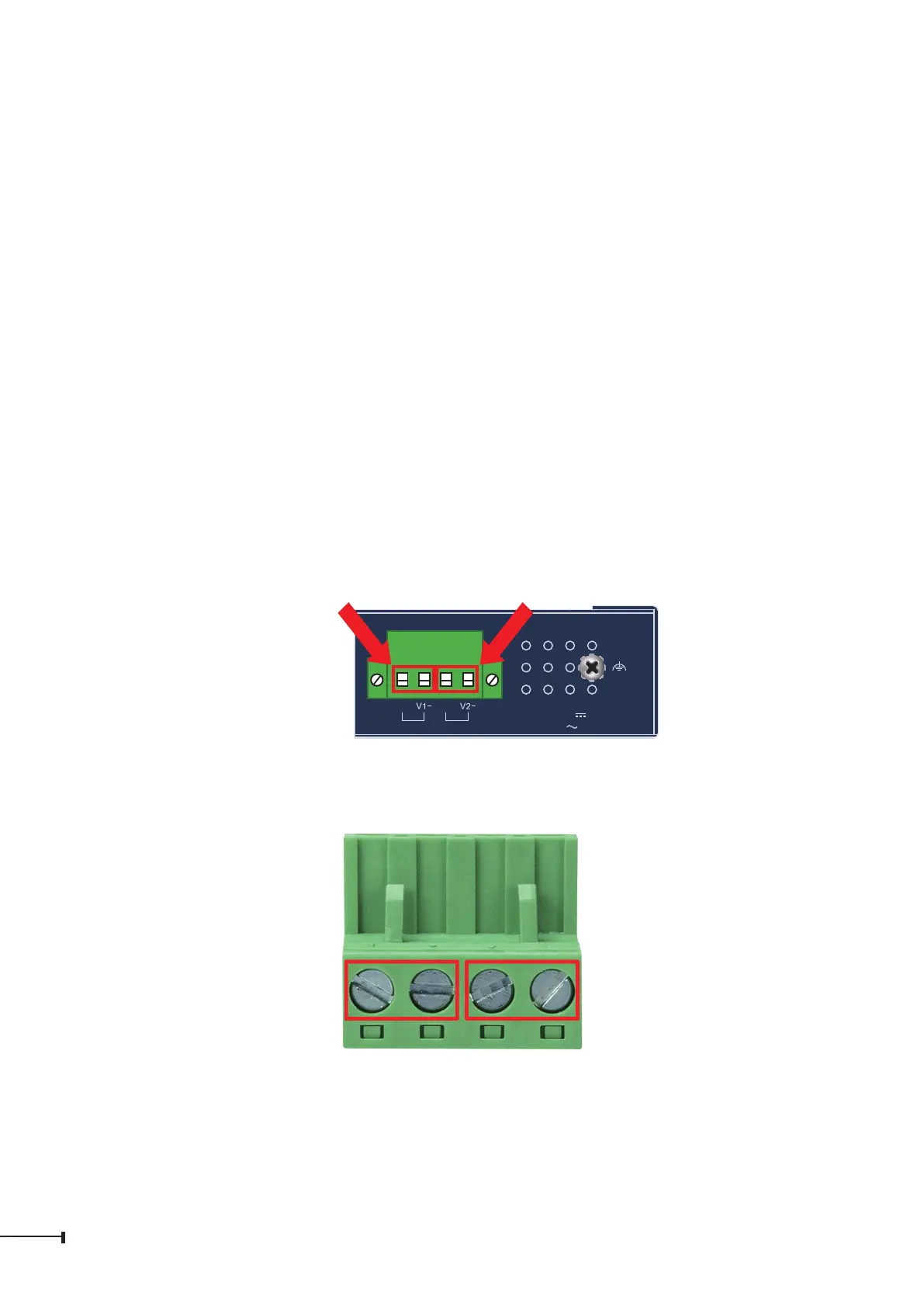

The 4-contact terminal block connector on the top panel of Industrial Media
Converter is used for two DC redundant power inputs. Please follow the steps below
to insert the power wire.
1. Insert positive/negative DC power wires into Contacts 1 and 2 for power 1 or 5
and 6 for power 2.
V1+
PWR1
V2+
PWR2
DC Input : 9-48V
, 1A max.
AC Input : 24V
, 1A max.
1 2 3 4
V1 +V1-
V2 +V2-
2. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4
Power 1 Power 2
+ - + -
