3.2 Converter Front Panel and LED Indicators

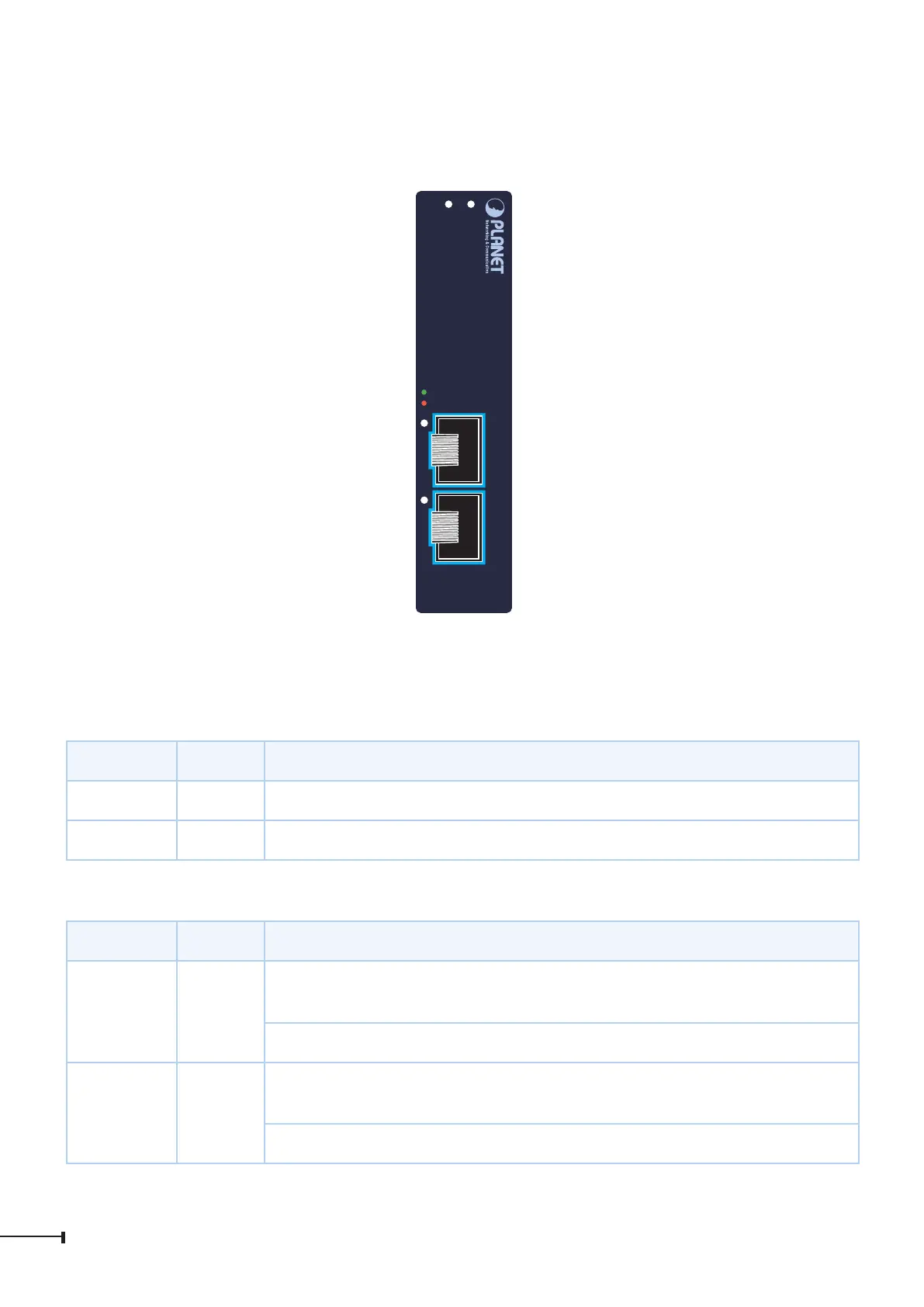

Figure 3-1 shows the front panel of the Industrial Media Converter.
1
2
10G/2.5G/1G/100
1G/2.5G
100/10G
LNK/ACT
LNK/ACT
P2 P1
IXT-815AT
Figure 3-1: IXT-815AT Front Panel
LED Denition
System and Power
LED Color Function
P1 Green Lights to indicate the Industrial Media Converter has power.
P2 Green Lights to indicate the Industrial Media Converter has power.
Per 10GBASE-X SFP+ Interface
LED Color Function
1G/2.5G
LNK/ACT
Green
Lit: Indicates that the ber optic port is successfully
connecting to the network at 1000Mbps or 2500Mbps.
Blink: Indicates the ber port is receiving or sending data.
10G/100
LNK/ACT
Amber
Lit: Indicates that the ber optic port is successfully
connecting to the network at 10Gbps or 100Mbps.
Blink: Indicates the ber port is receiving or sending data.
