7
10/100/1000BASE-T Interface
LED Color Function
1000
LNK/ACT
Green
Lights to indicate the port is running at 1000Mbps and
successfully established.
Blinks to indicate that the Switch is actively sending or receiving
data over that port.
10/100
LNK/ACT
Amber
Lights to indicate the port is running at 10/100Mbps and
successfully established.
Blinks to indicate that the Switch is actively sending or receiving
data over that port.
SFP Interface (IGS-820TF-PN only)
LED Color Function
1000
LNK/ACT
Green
Lights to indicate the port is running at 1000Mbps and
successfully established.
Blinks to indicate that the Switch is actively sending or receiving
data over that port.
100
LNK/ACT
Amber
Lights to indicate the port is running at 100Mbps and
successfully established.
Blinks to indicate that the Switch is actively sending or receiving
data over that port.
3.3 Switch Upper Panel
The upper panels of the Industrial Gigabit PROFINET Switches consist of one
terminal block connector within two power input.
DC Input: 9-48V
, 1A max.
AC Input: 24V
, 0.5A max.
V1+ V2+
PWR2PWR1
1 2 3 4

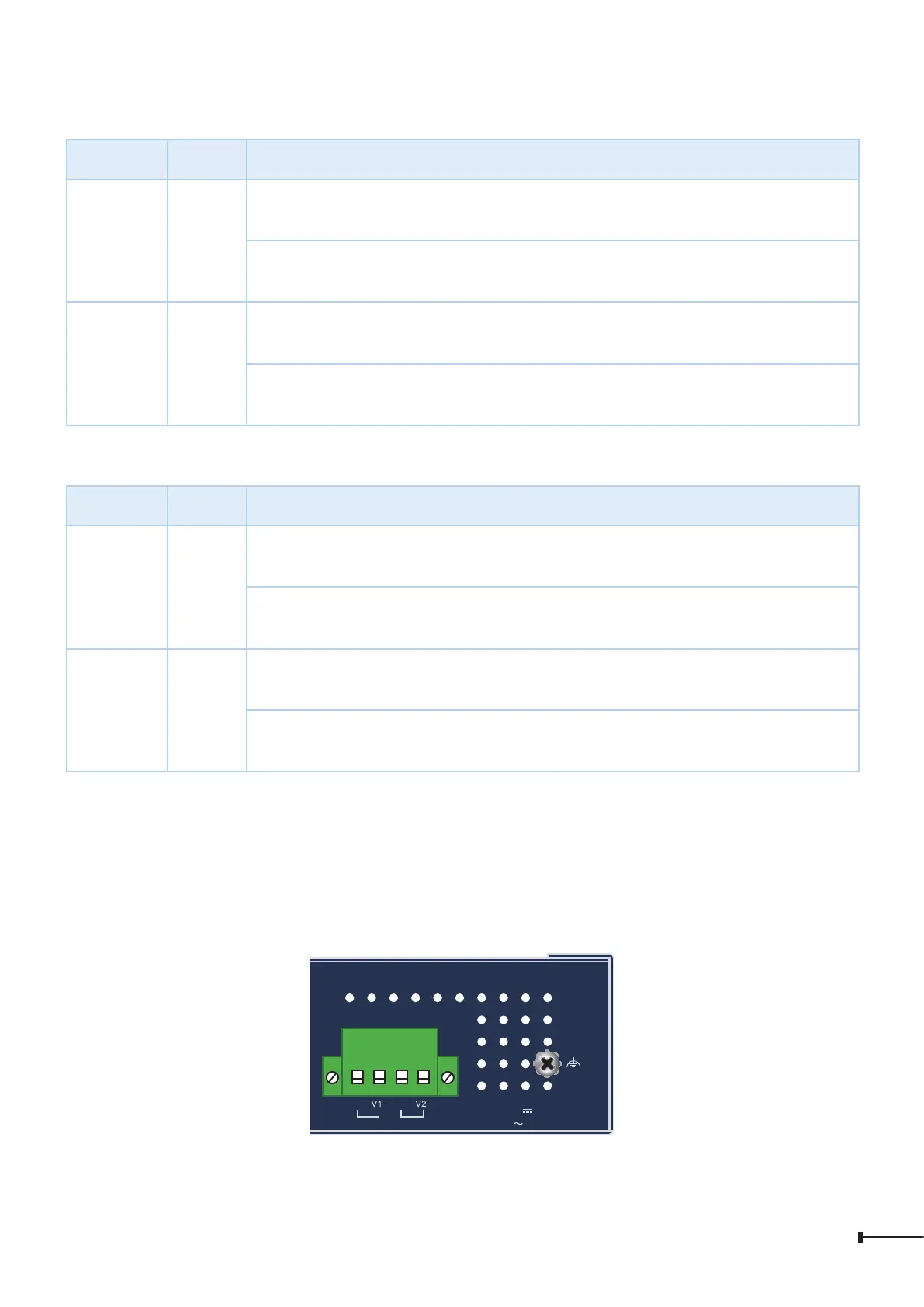

Figure 3: Top View (IGS-800T-PN & IGS-820TF-PN)
