User’s Manual of IGS-5225 series
67

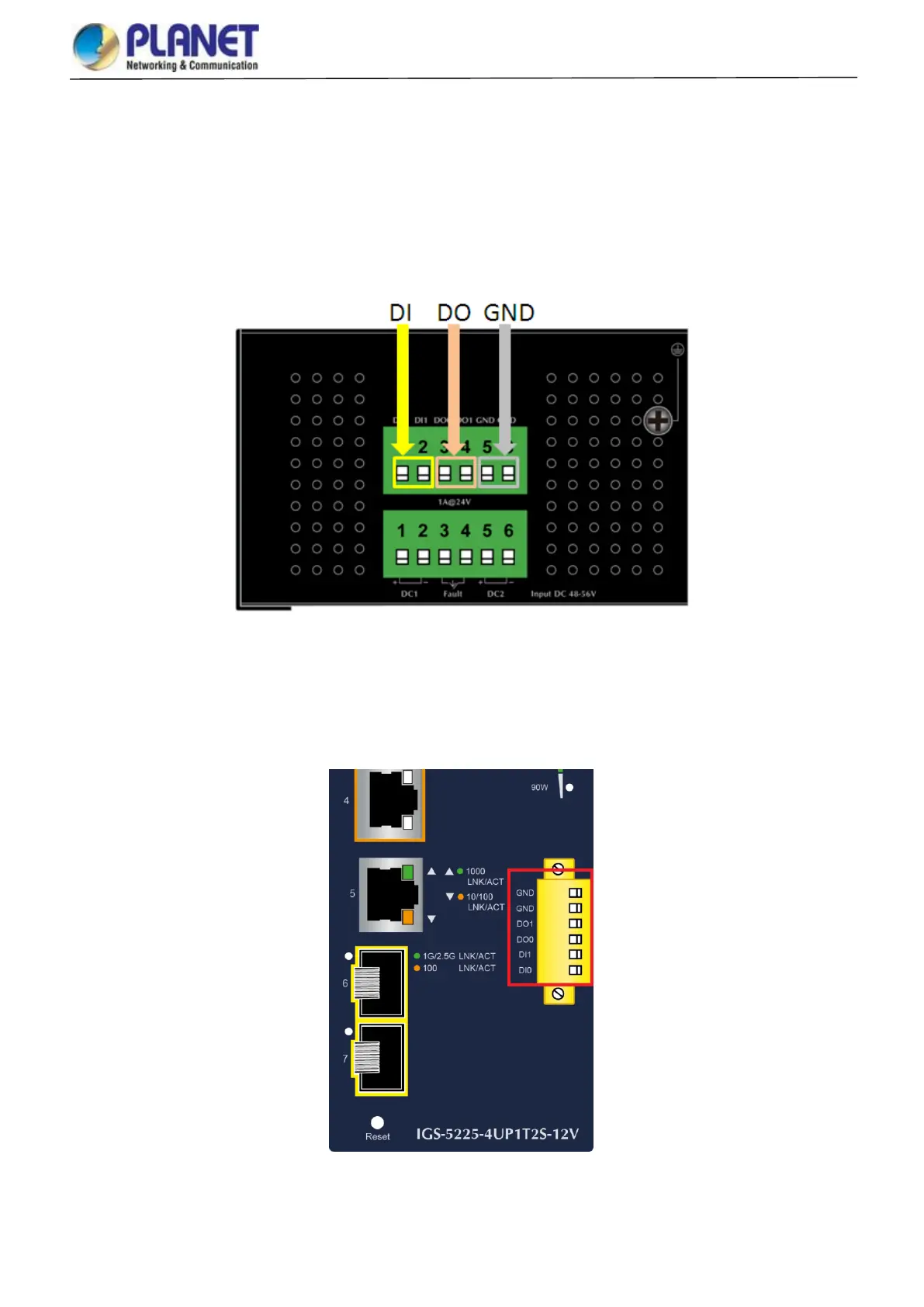

2.1.6 Wiring the Digital Input/Output
The 6-contact terminal block connector on the rear panel of IGS Series is used for Digital Input and Digital Output. Please
follow the steps below to insert wire.
1. The IGS-5225-4UP1T2S/ IGS-5225-8P2T2S/ IGS-5225-8P4S/ IGS-5225-8P4S-12V offers two DI and DO groups. 1 and
2 are DI groups; 3 and 4 are DO groups; and 5 and 6 are GND (ground).
Figure 2-18: Wiring the Redundant Power Inputs
2. The IGS-5225-4UP1T2S-12V offers two DI and DO groups. 1 and 2 are DI groups; 3 and 4 are DO groups; and 5 and 6
are GND (ground).
Figure 2-19: Wiring the Redundant Power Inputs
