User’s Manual of IGS-5225 series
65

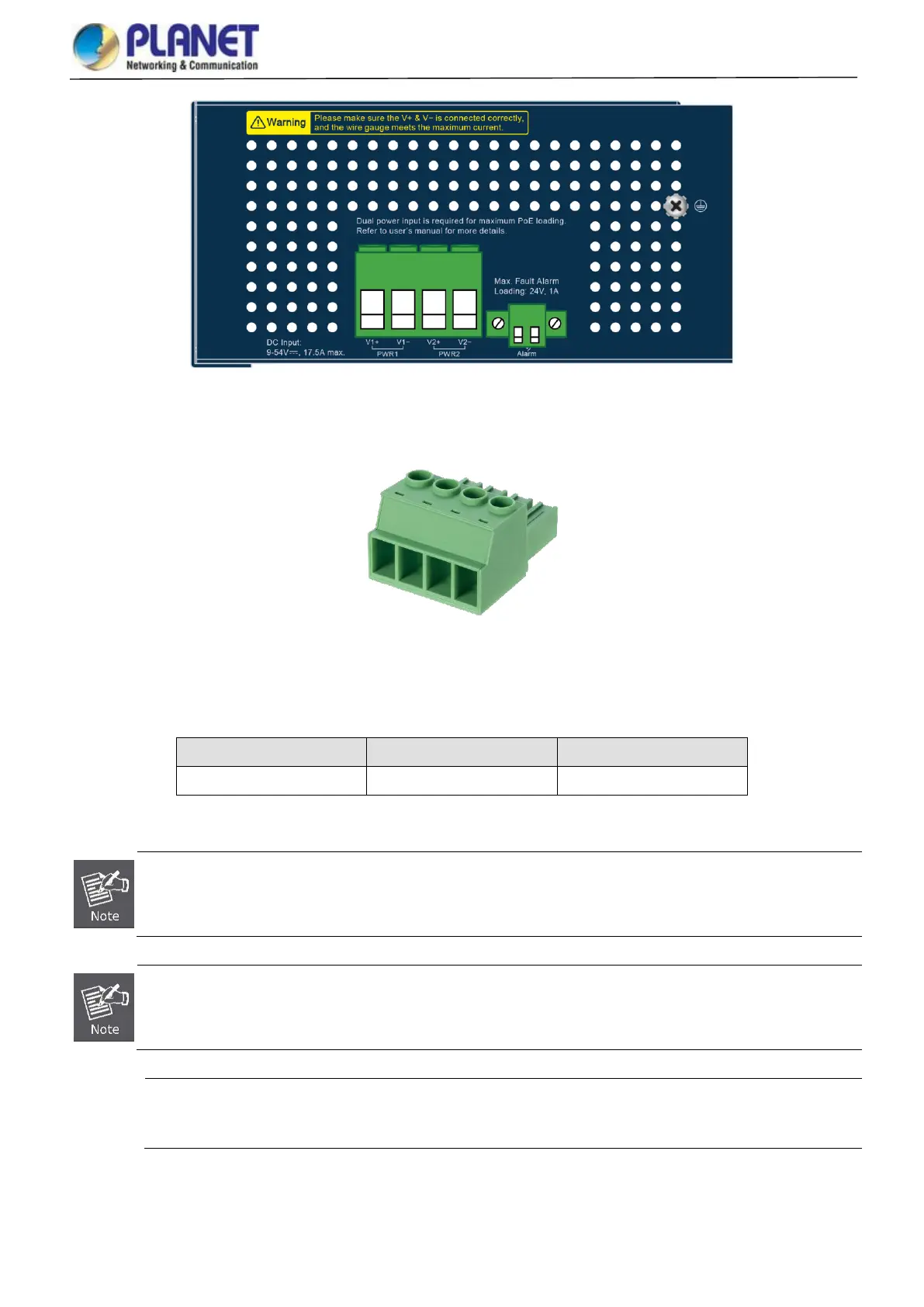

Figure 2-17: IGS-5225-4UP1T2S-12V Upper Panel
1
2
3
4
V+
V-
V+
V-
Power 1
Power 2
Model Name
Positive (+) Pin
Negative (-) Pin
IGS-5225-4UP1T2S-12V
Pin 1/3
Pin 2/4
1. For the IGS-5225-4UP1T2S-12V, the wire gauge for the terminal block should be in the range from 12 to 20 AWG.
2. Please check the wire’s AWG and ampere specification before connecting PLANET Industrial Managed Switch.
Please pay attention to the electrical wire thickness and refer to Appendix B: "Recommended Use of Connected
Wires" in the User’s Manual.
CAUTION
PWR1 and PWR2 must provide the same DC voltage for power load balance while operating with dual power
input.
