User’s Manual of IGS-5225 series
345
4.4.5 QCL
4.4.5.1 QoS Control List
This page shows the QoS Control List(QCL), which is made up of the QCEs. Each row describes a QCE that is defined. The
maximum number of QCEs is 256 on each switch.
Click on the lowest plus sign to add a new QCE to the list. The QoS Control List screen in Figure 4-4-5-1 appears.

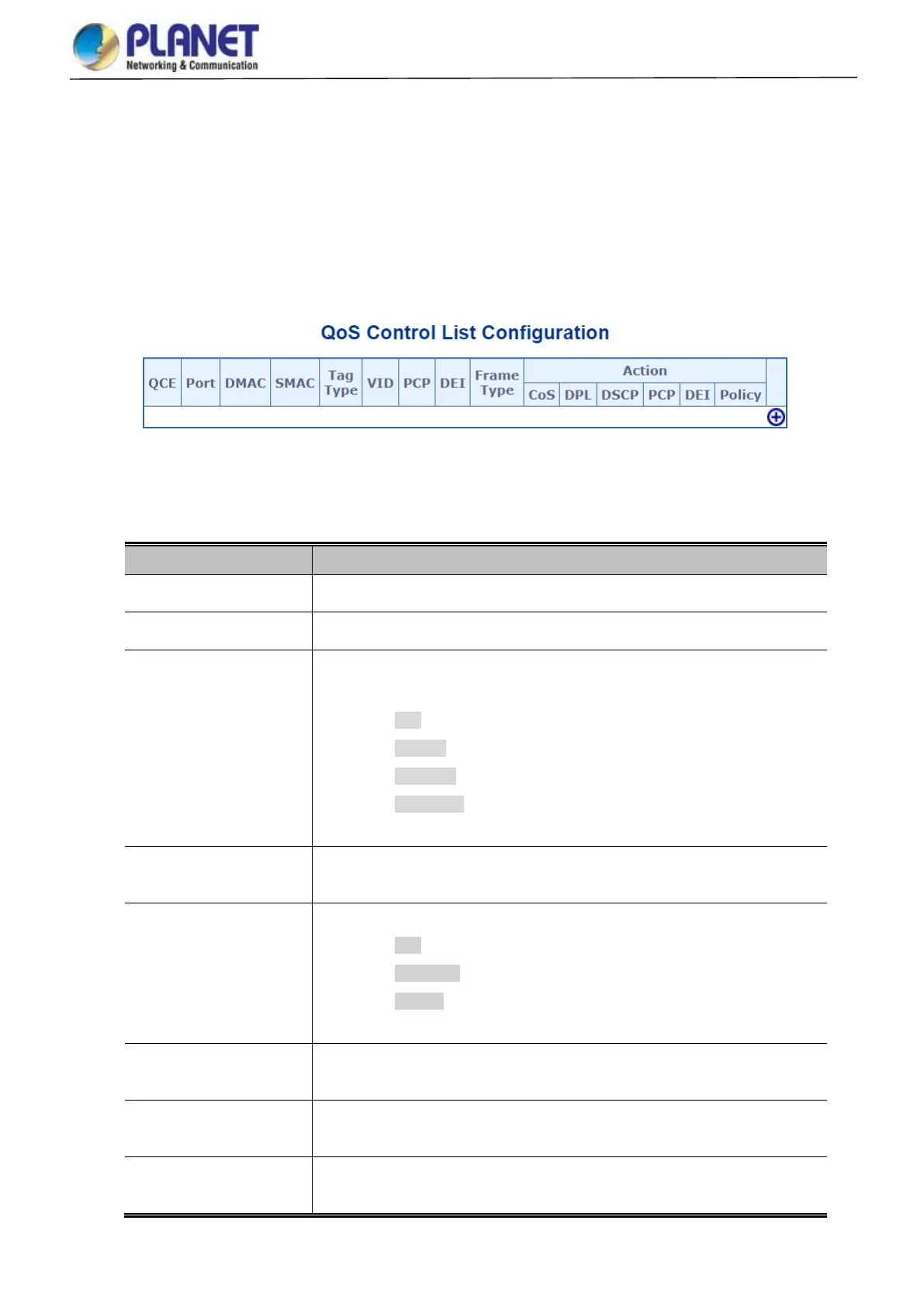

Figure 4-4-5-1: QoS Control List Configuration Page Screenshot
The page includes the following fields:
Object
Description
QCE#
Indicates the index of QCE.
Port
Indicates the list of ports configured with the QCE.
DMAC
Specify the type of Destination MAC addresses for incoming frame. Possible
values are:
■ Any: All types of Destination MAC addresses are allowed.
■ Unicast: Only Unicast MAC addresses are allowed.
■ Multicast: Only Multicast MAC addresses are allowed.
■ Broadcast: Only Broadcast MAC addresses are allowed.
The default value is 'Any'.
SMAC
Displays the OUI field of Source MAC address, i.e. first three octet (byte) of
MAC address.
Tag Type
Indicates tag type. Possible values are:
■ Any: Match tagged and untagged frames.
■ Untagged: Match untagged frames.
■ Tagged: Match tagged frames.
The default value is 'Any'
VID
Indicates (VLAN ID), either a specific VID or range of VIDs. VID can be in the
range 1-4095 or 'Any'
PCP
Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5, 6, 7) or range(0-
1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'.
DEI
Drop Eligible Indicator: Valid value of DEI can be any of values between 0, 1 or
'Any'.
