User’s Manual of IGS-5225 series
322

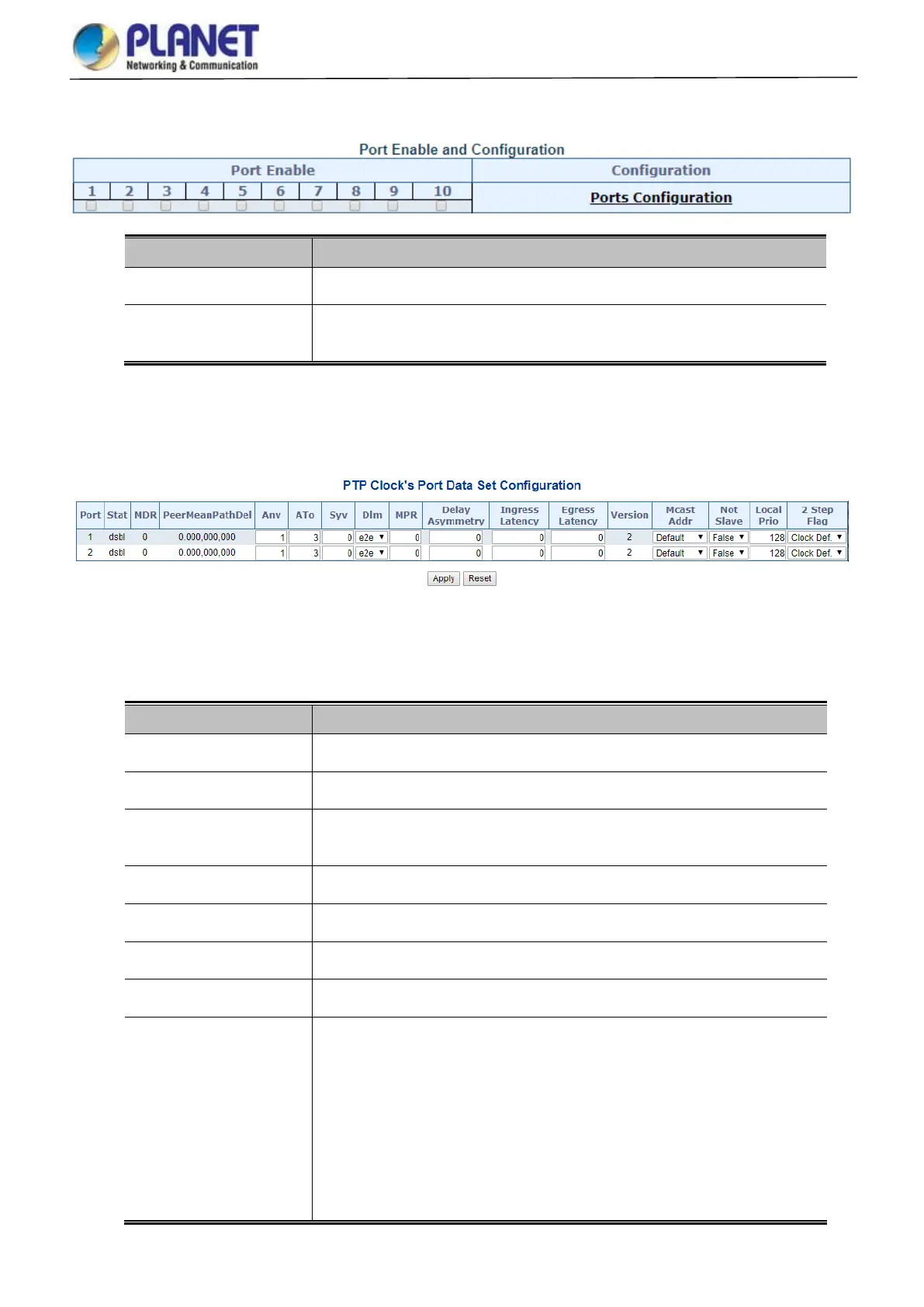

Port Enable and Configuration
Object
Description
Port Enable
Set check mark for each port configured for this Clock Instance.
Configuration
Click 'Ports Configuration' to edit the port data set for the ports assigned to
this clock instance.
The port data set is defined in the IEEE 1588 Standard. It holds three groups of data: the static members, the dynamic
members, and configurable members which can be set here.
Port Data Set
Object
Description
Port
Static member port Identity : Port number [1..max port no]
Stat
Dynamic member portState: Current state of the port.
MDR
Dynamic member log Min Delay Req Interval: The delay request interval
announced by the master.
Peer Mean Path Del
The path delay measured by the port in P2P mode. In E2E mode this value is 0
Anv
The interval for issuing announce messages in master state. Range is -3 to 4.
ATo
The timeout for receiving announce messages on the port. Range is 1 to 10.
Syv
The interval for issuing sync messages in master. Range is -7 to 4.
Dlm
Configurable member delayMechanism:
The delay mechanism used for the port:
e2e End to end delay measurement
p2p Peer to peer delay measurement.
Can be defined per port in an Ordinary/Boundary clock.
In a transparent clock all ports use the same delay mechanism, determined by
the clock type.
