User’s Manual of IGS-5225 series
303

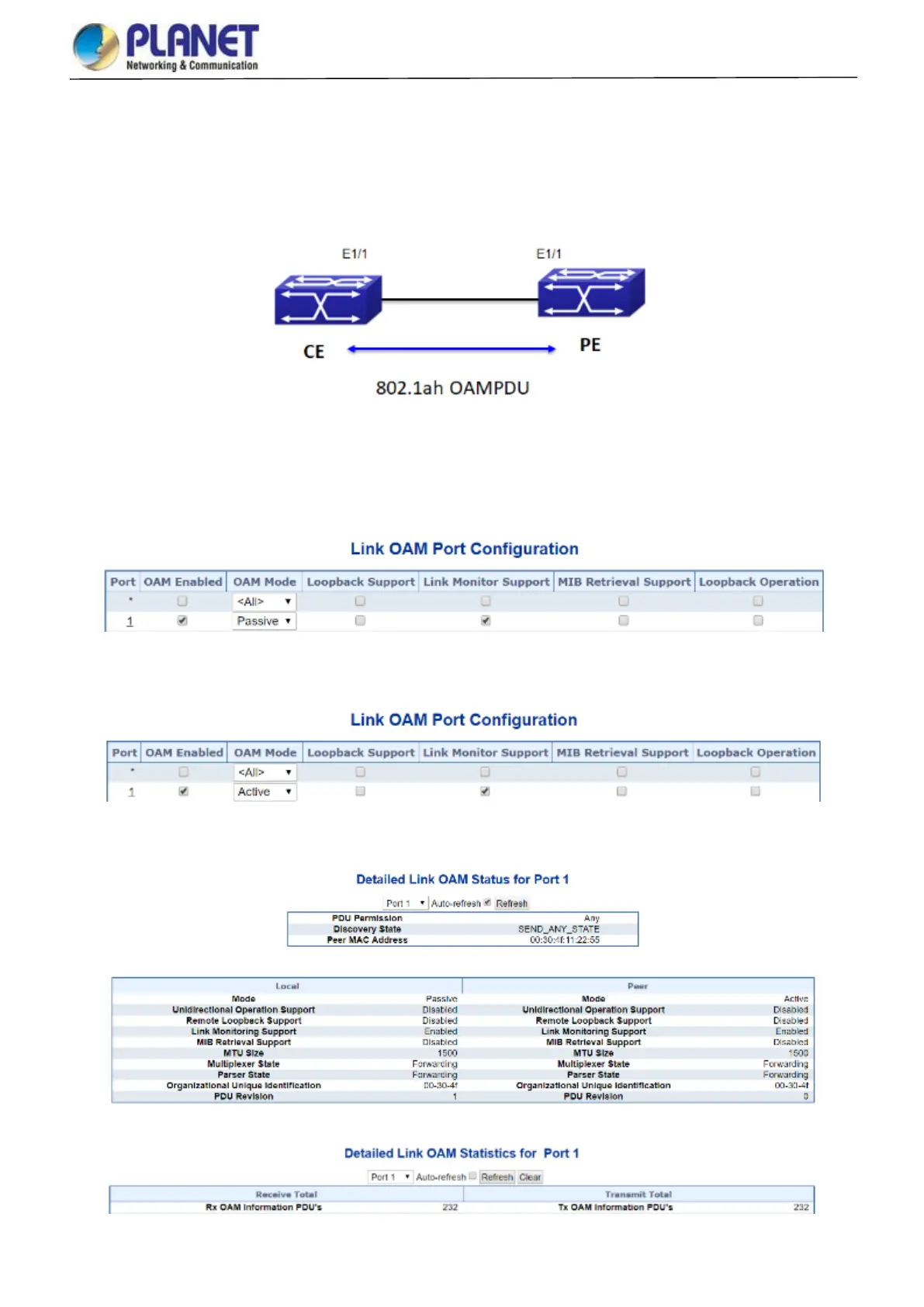

4.3.17.7 Link-OAM Example
CE and PE devices with point-to-point link enable EFM OAM to monitor “the First Mile” link performance. It will report the log
information to network management system when occurring fault event and use remote loopback function to detect the link in
necessary instance
Figure 4-3-17-7: Typical OAM application topology
The configuration of link-oam is quite simple.
Step 1. Set CE as Passive OAM mode
Step 2. Set PE as Active OAM mode
Step 3. Check OAM status and statistic from CE device
