User’s Manual of IGS-5225 series
285
4.3.14 MAC Address Table
Switching of frames is based upon the DMAC address contained in the frame. The Industrial Managed Switch builds up a
table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC
address in the frame ). This table contains both static and dynamic entries. The static entries are configured by the network
administrator if the administrator wants to do a fixed mapping between the DMAC address and switch ports.
The frames also contain a MAC address (SMAC address ), which shows the MAC address of the equipment sending the
frame. The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses.
Dynamic entries are removed from the MAC table if no frame with the corresponding SMAC address have been seen after a
configurable age time.
4.3.14.1 MAC Table Configuration
The MAC Address Table is configured on this page. Set timeouts for entries in the dynamic MAC Table and configure the static
MAC table here. The MAC Address Table Configuration screen in Figure 4-3-14-1 appears.

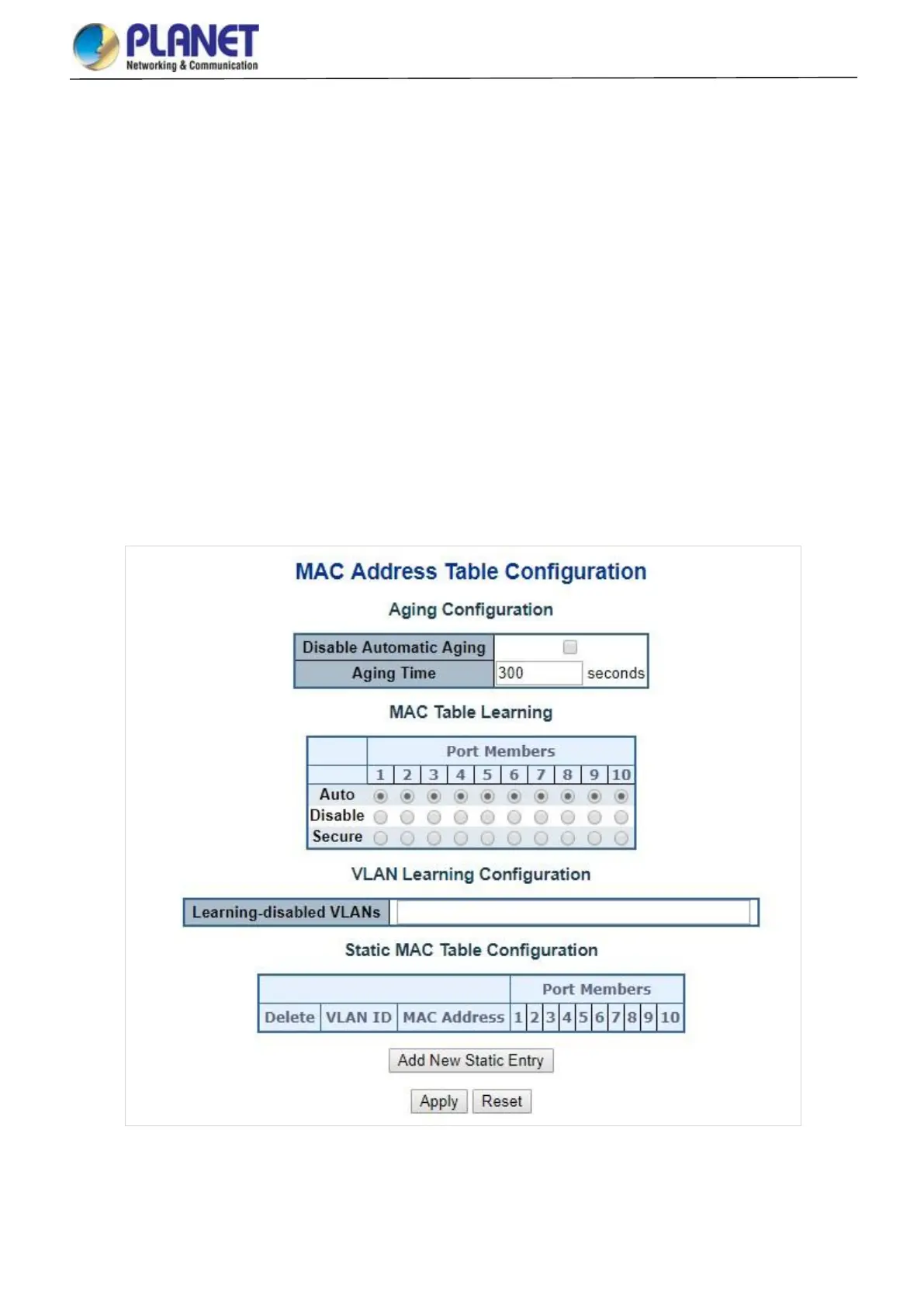

Figure 4-3-14-1: MAC Address Table Configuration Page Screenshot
