User’s Manual of IGS-5225 series
214
4.3.6.3 Protocol-based VLAN
This page allows you to add new Protocol to Group Name (each protocol can be part of only one Group) mapping
entries as well as allow you to see and delete already mapped entries for the switch .

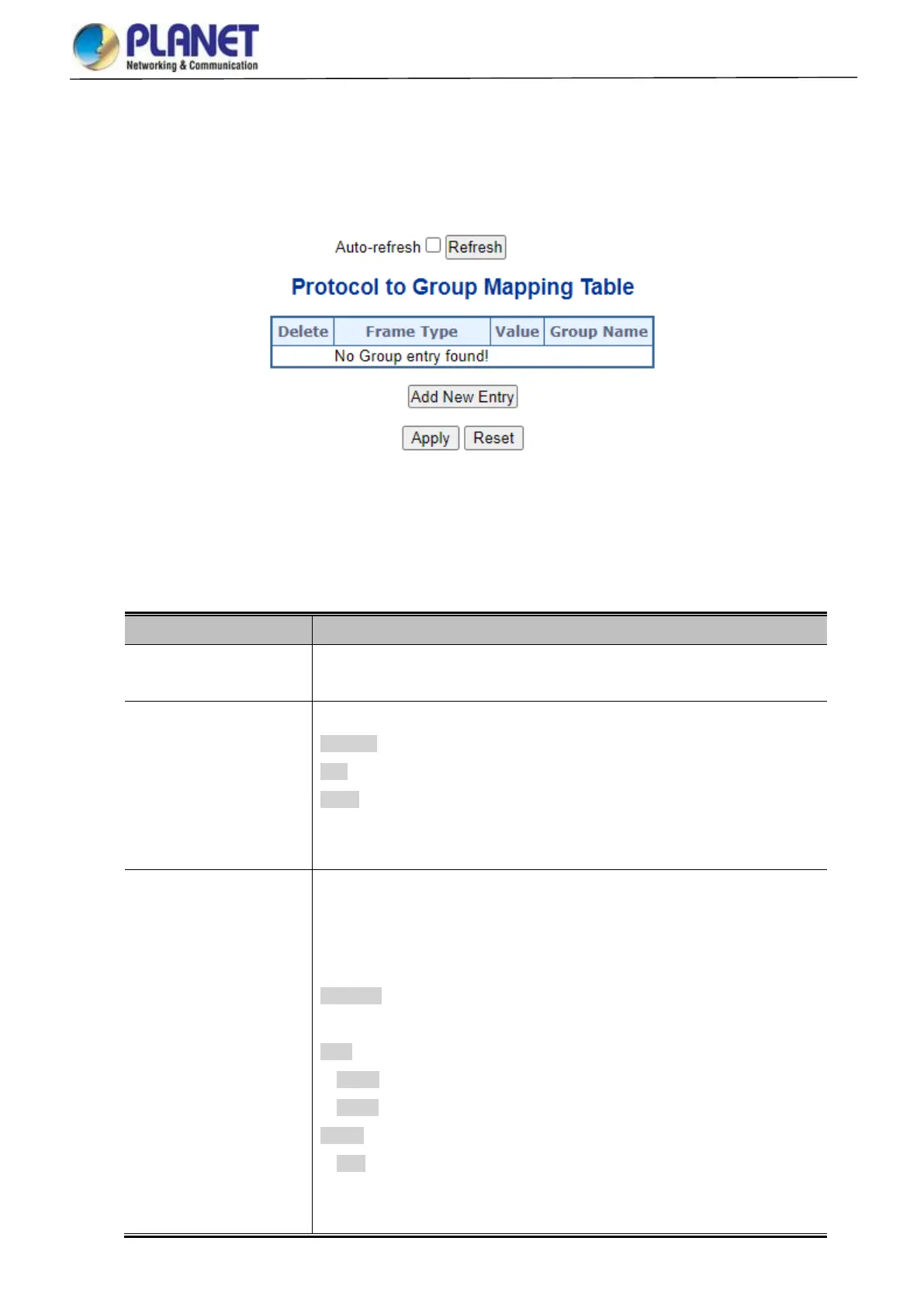

Figure 4-3-6-3: Protocol to Group Mapping Table
The following table shows the items on this page.
Object
Description
Delete
To delete a Protocol to Group Name map entry, check this box. The entry will be
deleted from the switch during the next Save.
Frame Type
Frame Type can have one of the following values:
1. Ethernet
2. LLC
3. SNAP
Note: When changing the Frame type field, the valid value of the following text
field will vary depending on the new frame type you selected.
Value
Valid value that can be entered in this text field depends on the option selected
from the preceding Frame Type selection menu.
Below are the criteria for the three different Frame Types:
1. Ethernet: Value in the text field when Ethernet is selected as a Frame Type is
called etype. Valid values for etype range between 0x0600 and 0xffff
2. LLC: Valid value in this case is comprised of two different sub-values.
a. DSAP: 1-byte long string (0x00-0xff)
b. SSAP: 1-byte long string (0x00-0xff)
3. SNAP: Valid value in this case is also comprised of two different sub-values.
a. OUI: OUI (Organizationally Unique Identifier) is a parameter in the format of
xx-xx-xx where each pair (xx) in the string is a hexadecimal value ranging
between 0x00 and 0xff.
