User’s Manual of IGS-5225 series
202
4.3.4 VLAN Translation
4.3.4.1 Port to Group Configuration
This page allows you to configure switch Ports to use a given VLAN Translation Mapping Group. This will enable
all VLAN Translation mappings of that group (if any) on the selected switch port.
The displayed settings are:

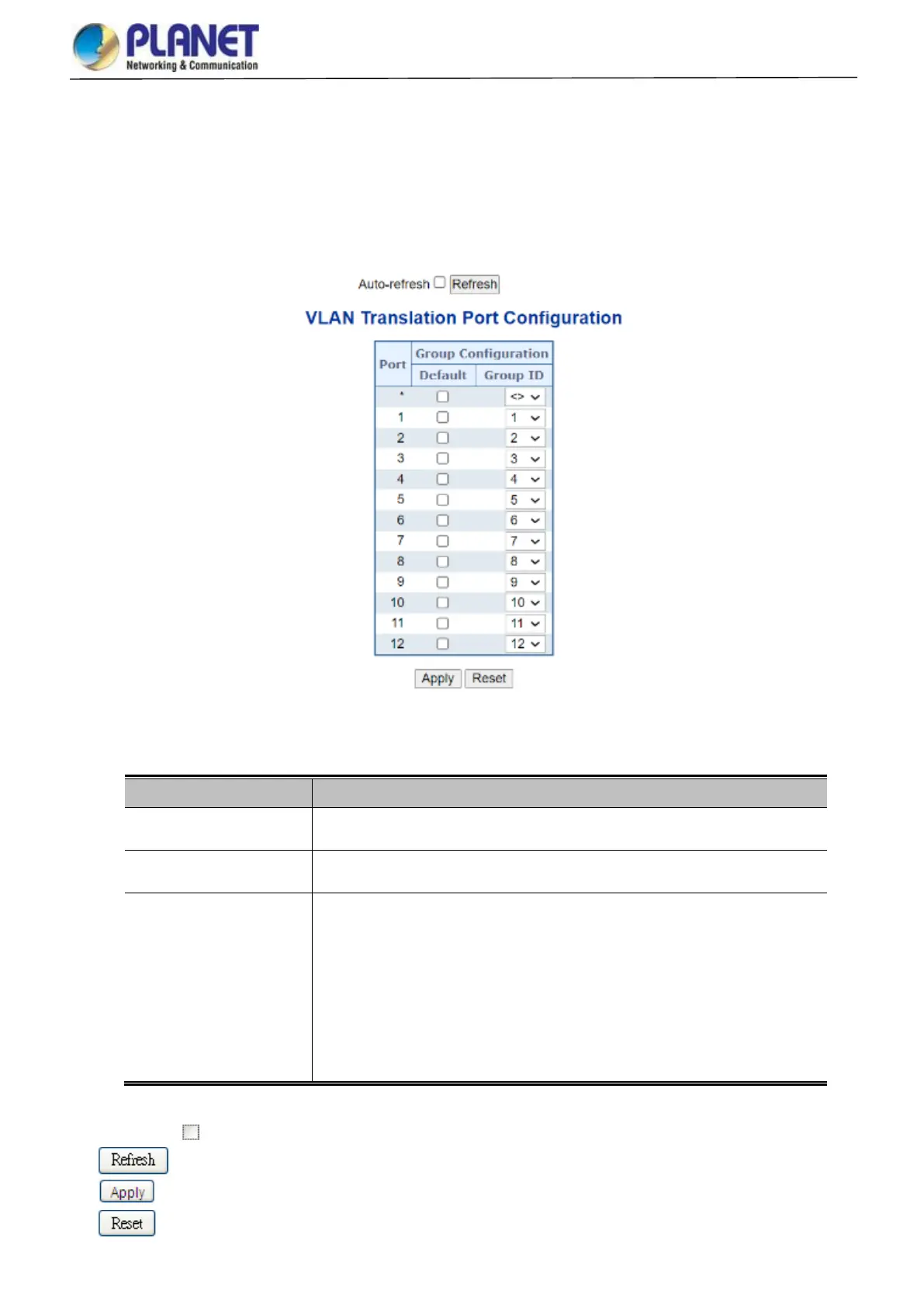

Figure 4-3-3-5: VLAN Translation Port Configuration Page Screenshot
The displayed settings are:
Object
Description
Port
The Port column shows the list of ports for which you can configure the VLAN
Translation Mapping Group.
Default
To set the switch port to use the default VLAN Translation Group click the
checkbox and press Save.
Group ID
The VLAN Translation mappings are organized into Groups, identified by the
Group ID. This way a port is configured to use a number of VLAN Translation
mappings easily by simply configuring it to use a given group. Then number of
possible groups in a switch is equal to the number of ports present in this switch.
A port can be configured to use any of the groups, but only one at any given
time. Multiple ports can be configured to use the same group. A valid Group ID is
an integer value from 1 to 12.
Note: By default, each port is set to use the group with Group ID equal to the
port number. For example, port #1 is by default set to use group with GID = 1.
Buttons
Auto-refresh : Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
: Click to apply changes.
: Click to undo any changes made locally and revert to previously saved values.
