User’s Manual of IGS-5225 series
199
4.3.3.4 VLAN Membership Status
This page provides an overview of membership status for VLAN users. The VLAN Membership Status screen in Figure 4-3-3-3
appears.

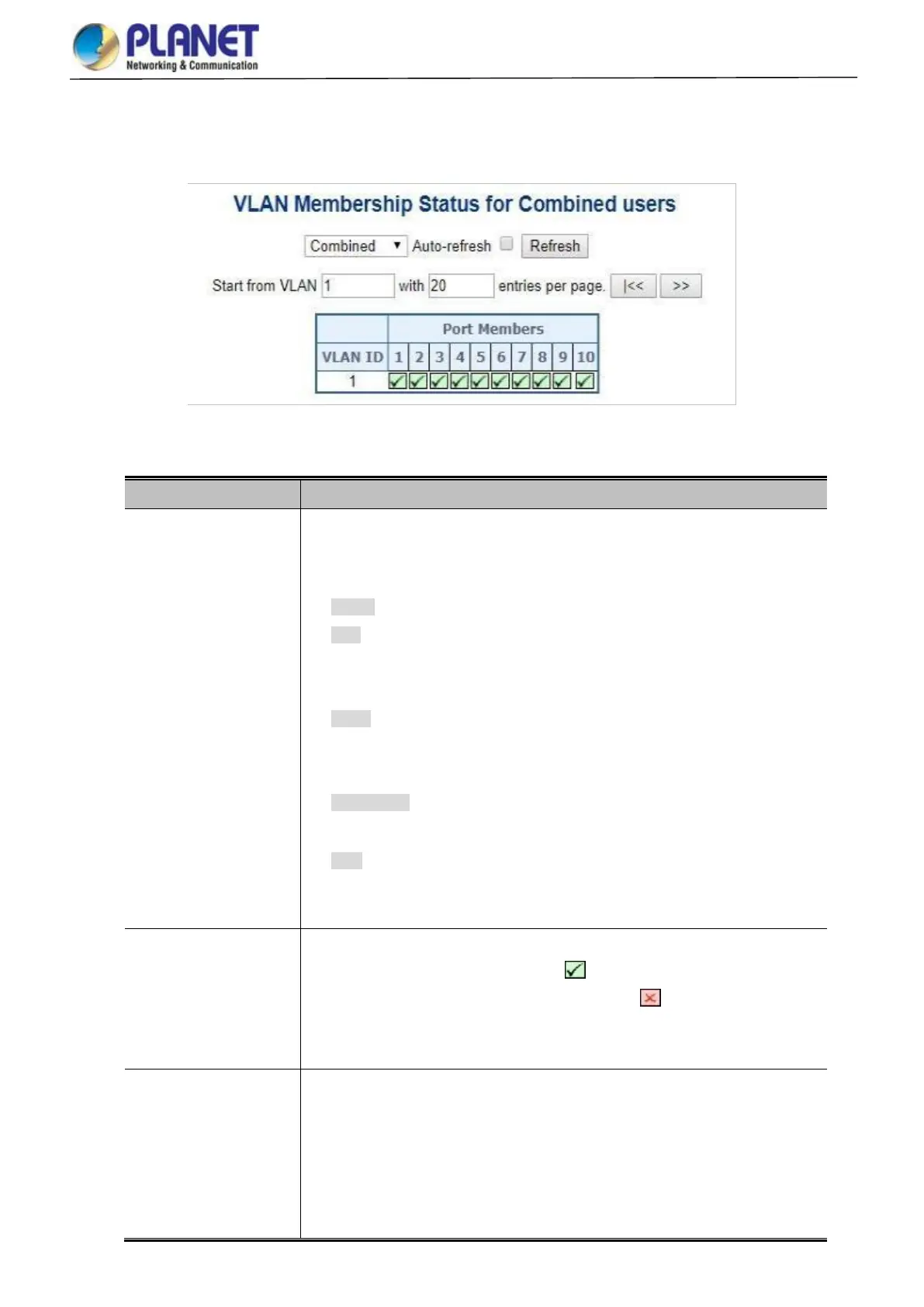

Figure 4-3-3-3: VLAN Membership Status for Static User Page Screenshot
The page includes the following fields:
Object
Description
VLAN User
A VLAN User is a module that uses services of the VLAN management
functionality to configure VLAN memberships and VLAN port configuration such
as PVID, UVID. Currently we support following VLAN :
- Admin : This is referred as static.
- NAS : NAS provides port-based authentication, which involves
communications between a Supplicant, Authenticator, and an Authentication
Server.
- GVRP : GVRP (GARP VLAN Registration Protocol or Generic VLAN
Registration Protocol) is a protocol that facilitates control of virtual local area
networks (VLANs) within a larger network .
- Voice VLAN : Voice VLAN is a VLAN configured specially for voice traffic
typically originating from IP phones.
- MVR : MVR is used to eliminate the need to duplicate multicast traffic for
subscribers in each VLAN. Multicast traffic for all channels is sent only on a
single (multicast) VLAN.
Port Members
A row of check boxes for each port is displayed for each VLAN ID.
If a port is included in a VLAN, an image will be displayed.
If a port is included in a Forbidden port list, an image will be displayed.
If a port is included in a Forbidden port list and dynamic VLAN user register VLAN
on same Forbidden port, then conflict port will be displayed as conflict port.
VLAN Membership
The VLAN Membership Status page shall show the current VLAN port members
for all VLANs configured by a selected VLAN User (selection shall be allowed by a
Combo Box). When ALL VLAN Users are selected, it shall show this information
for all the VLAN Users, and this is by default. VLAN membership allows the
frames classified to the VLAN ID to be forwarded on the respective VLAN member
ports.
