User’s Manual of IGS-5225 series
194
4.3.3.3 VLAN Port Configuration
This page is used for configuring the Industrial Managed Switch port VLAN. The VLAN per Port Configuration page contains
fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port
Configuration page. All untagged packets arriving to the device are tagged by the ports PVID.
Understand nomenclature of the Switch
■ IEEE 802.1Q Tagged and Untagged
Every port on an 802.1Q compliant switch can be configured as tagged or untagged.
Tagged:
Ports with tagging enabled will put the VID number, priority and other VLAN information into
the header of all packets that flow into those ports. If a packet has previously been tagged, the
port will not alter the packet, thus keeping the VLAN information intact. The VLAN information
in the tag can then be used by other 802.1Q compliant devices on the network to make
packet-forwarding decisions.
Untagged:
Ports with untagging enabled will strip the 802.1Q tag from all packets that flow into those
ports. If the packet doesn't have an 802.1Q VLAN tag, the port will not alter the packet. Thus,
all packets received by and forwarded by an untagging port will have no 802.1Q VLAN
information. (Remember that the PVID is only used internally within the Switch). Untagging is
used to send packets from an 802.1Q-compliant network device to a non-compliant network
device.
Frame Income
Frame Leave
Income Frame is tagged
Income Frame is untagged
Leave port is tagged
Frame remains tagged
Tag is inserted
Leave port is untagged
Tag is removed
Frame remain untagged
Table 4-3-3-1: Ingress / Egress Port with VLAN VID Tag / Untag Table
Global VLAN Configuration

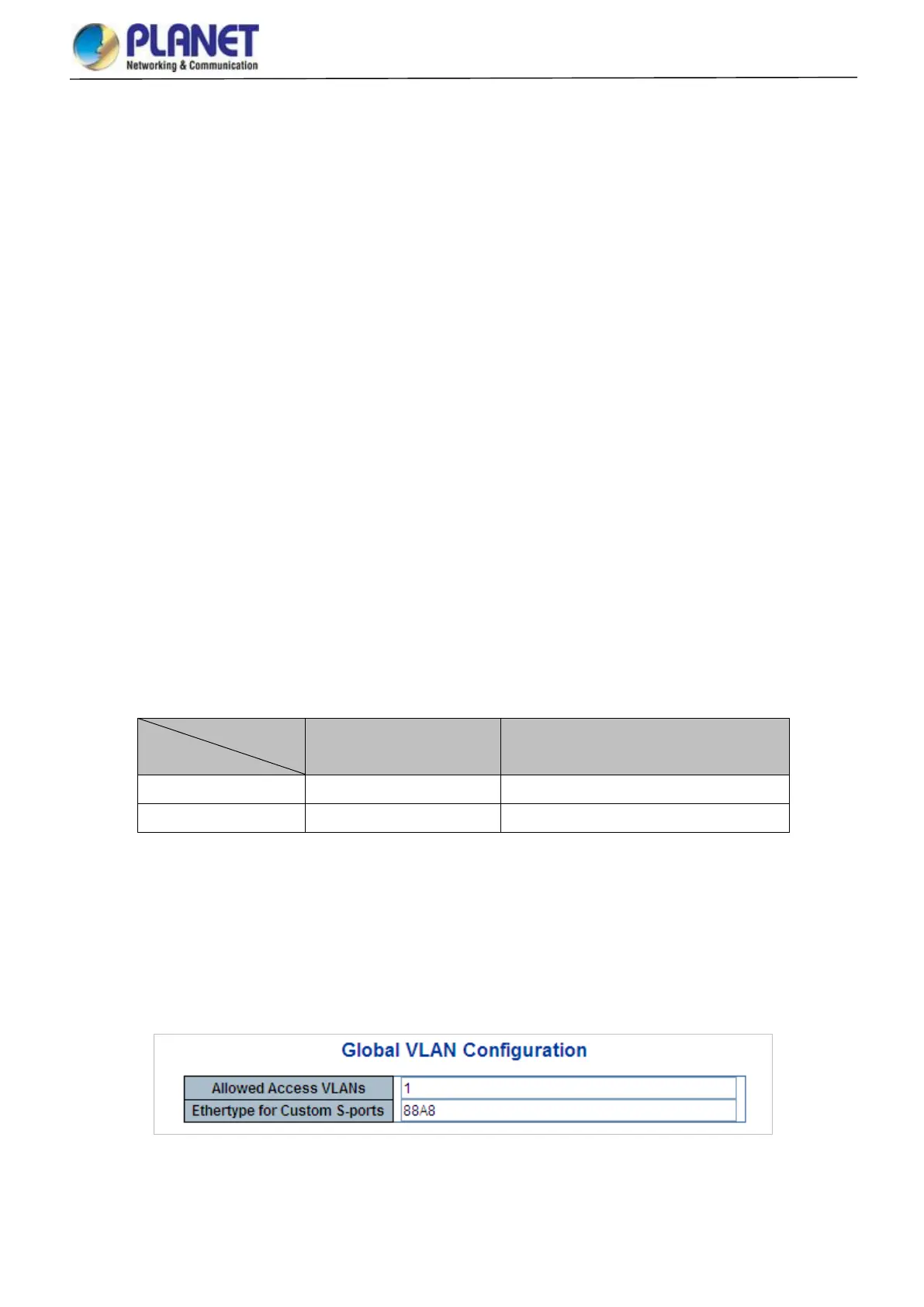

The Global VLAN Configuration screen in Figure 4-3-3-1 appears.
Figure 4-3-3-1 : Global VLAN Configuration Screenshot
