User’s Manual of IGS-5225 series
186
4.3.2.8 LACP Port Status
This page provides a status overview of LACP status for all ports. The LACP Internal Port Status screen in Figure 4-3-2-9
appears.

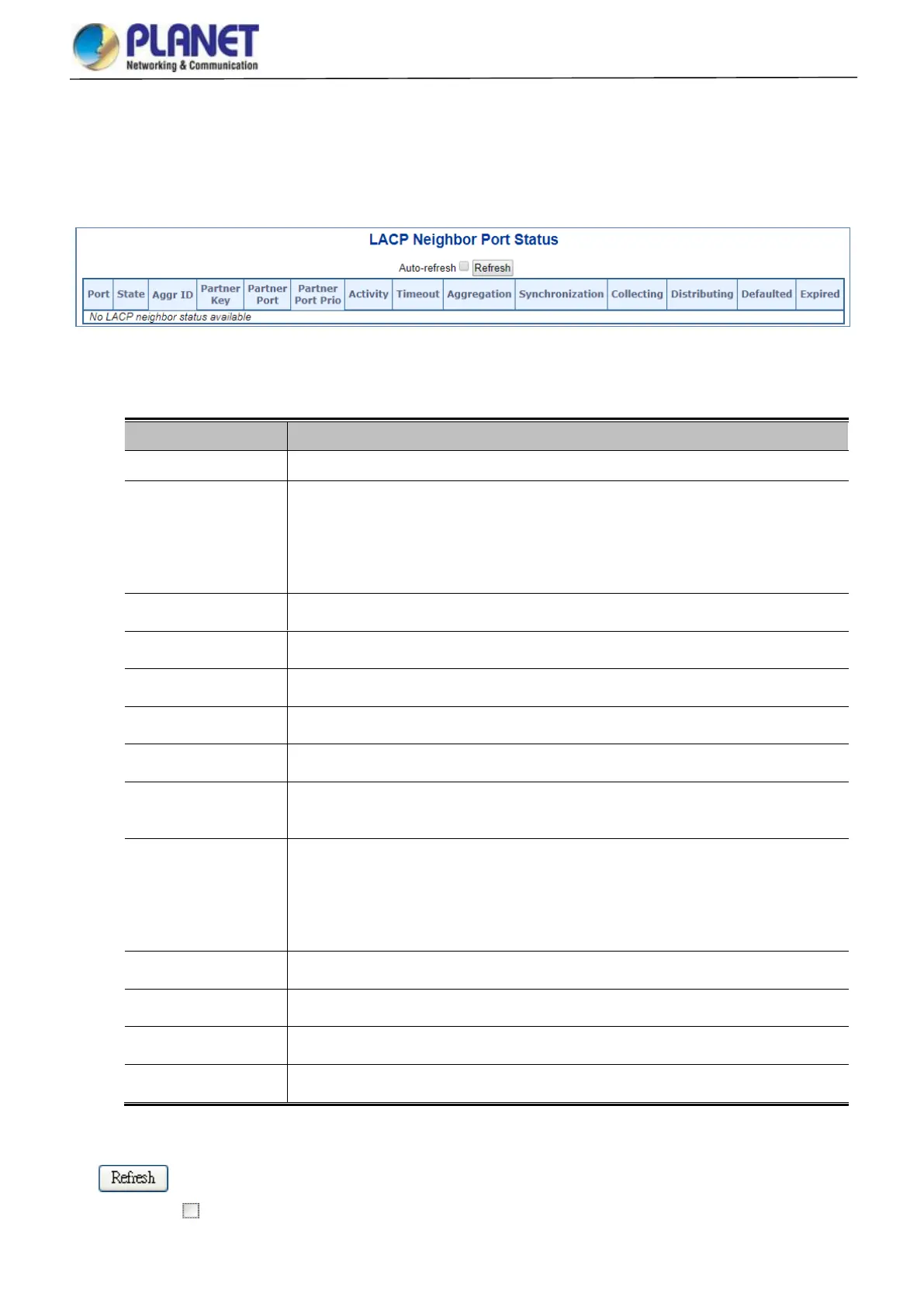

Figure 4-3-2-9: LACP Neighbor Port Status Page Screenshot
The page includes the following fields:
Object
Description
Port
The switch port number.
State
The current port state:
Down: The port is not active.
Active: The port is in active state.
Standby: The port is in standby state.
Aggr ID
The aggregation group ID which the port is assigned to.
Partner Key
The key assigned to this port by the partner.
Partner Priority
The priority assigned to this partner port .
Activity
The LACP mode of the group (Active or Passive).
Timeout
The timeout mode configured for the port (Fast or Slow).
Aggregation
Show whether the system considers this link to be "aggregateable"; i.e., a potential
candidate for aggregation.
Synchronization
Show whether the system considers this link to be "IN_SYNC"; i.e., it has been
allocated to the correct LAG, the group has been associated with a compatible
Aggregator, and the identity of the LAG is consistent with the System ID and operational
Key information transmitted.
Collecting
Show if collection of incoming frames on this link is enabled.
Distributing
Show if distribution of outgoing frames on this link is enabled.
Defaulted
Show if the Actor's Receive machine is using Defaulted operational Partner information.
Expired
Show if that the Actor's Receive machine is in the EXPIRED state.
Buttons
: Click to refresh the page immediately.
Auto-refresh : Automatic refresh occurs every 3 seconds.
