User’s Manual of IGS-5225 series
169
4.3.1.4 SFP Module Information
The Industrial Managed Switches have supported the SFP module with digital diagnostics monitoring (DDM) function.
This feature is also known as digital optical monitoring (DOM). You can check the physical or operational status of an SFP
module via the SFP Module Information page.
This page shows the operational status, such as the transceiver type, speed, wavelength, optical output power, optical input
power, temperature, laser bias current and transceiver supply voltage in real time. You can also use the hyperlink of port no. to
check the statistics on a specific interface. The SFP Module Information screen in Figure 4-3-1-4 appears.

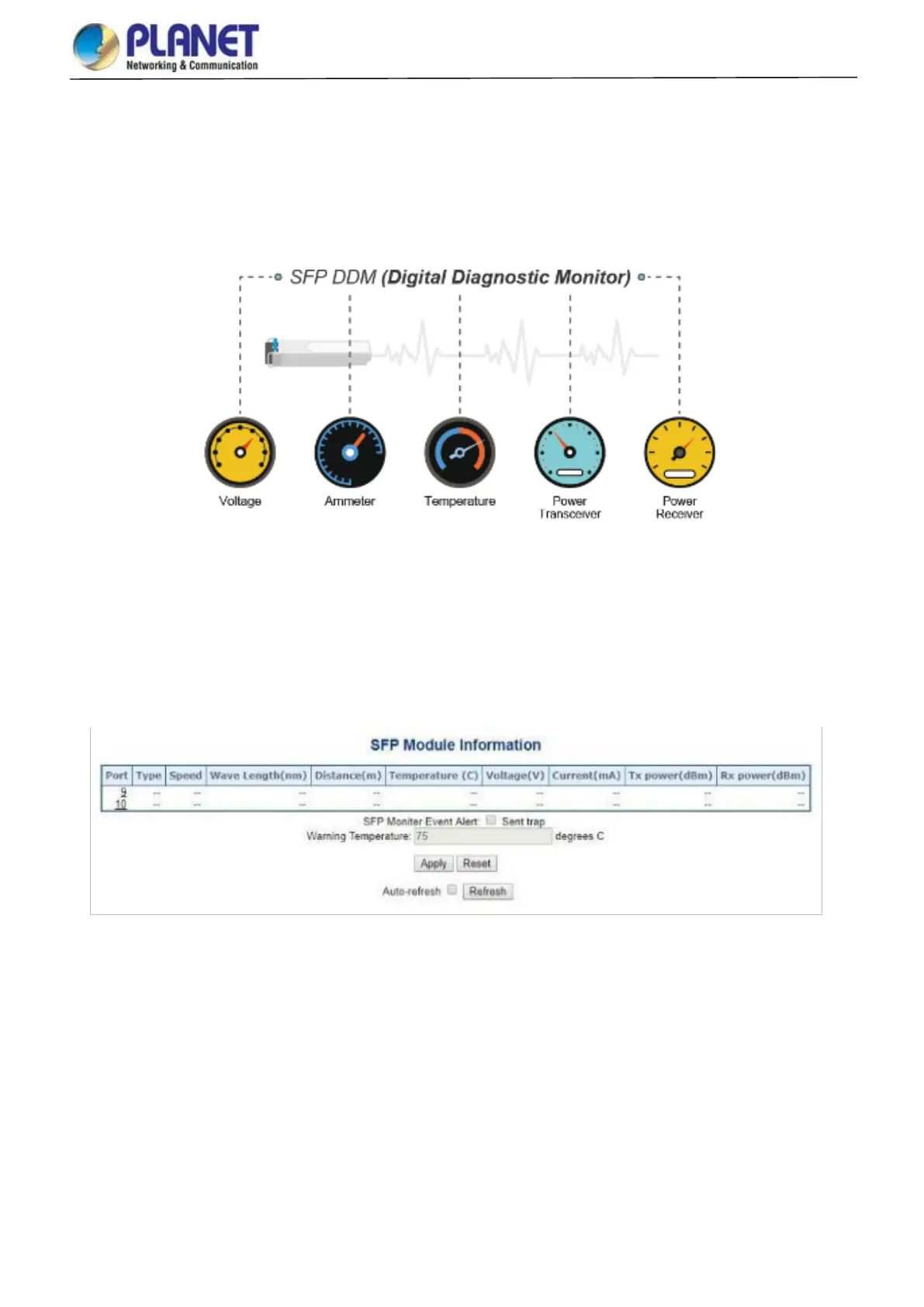

Figure 4-3-1-4: SFP Module Information for Switch Page Screenshot
