User’s Manual of IGS-5225 series
164
4.3 Switching
4.3.1 Port Management
Use the Port Menu to display or configure the Industrial Managed Switch's ports. This section has the following items:
Port Configuration
Configures port connection settings
Port Statistics Overview
Lists Ethernet and RMON port statistics
Port Statistics Detail
Lists Ethernet and RMON port statistics
SFP Module Information
Display SFP information
Port Mirror
Sets the source and target ports for mirroring
4.3.1.1 Port Configuration
This page displays current port configurations. Ports can also be configured here. The Port Configuration screen in Figure 4-3-
1-1 appears.

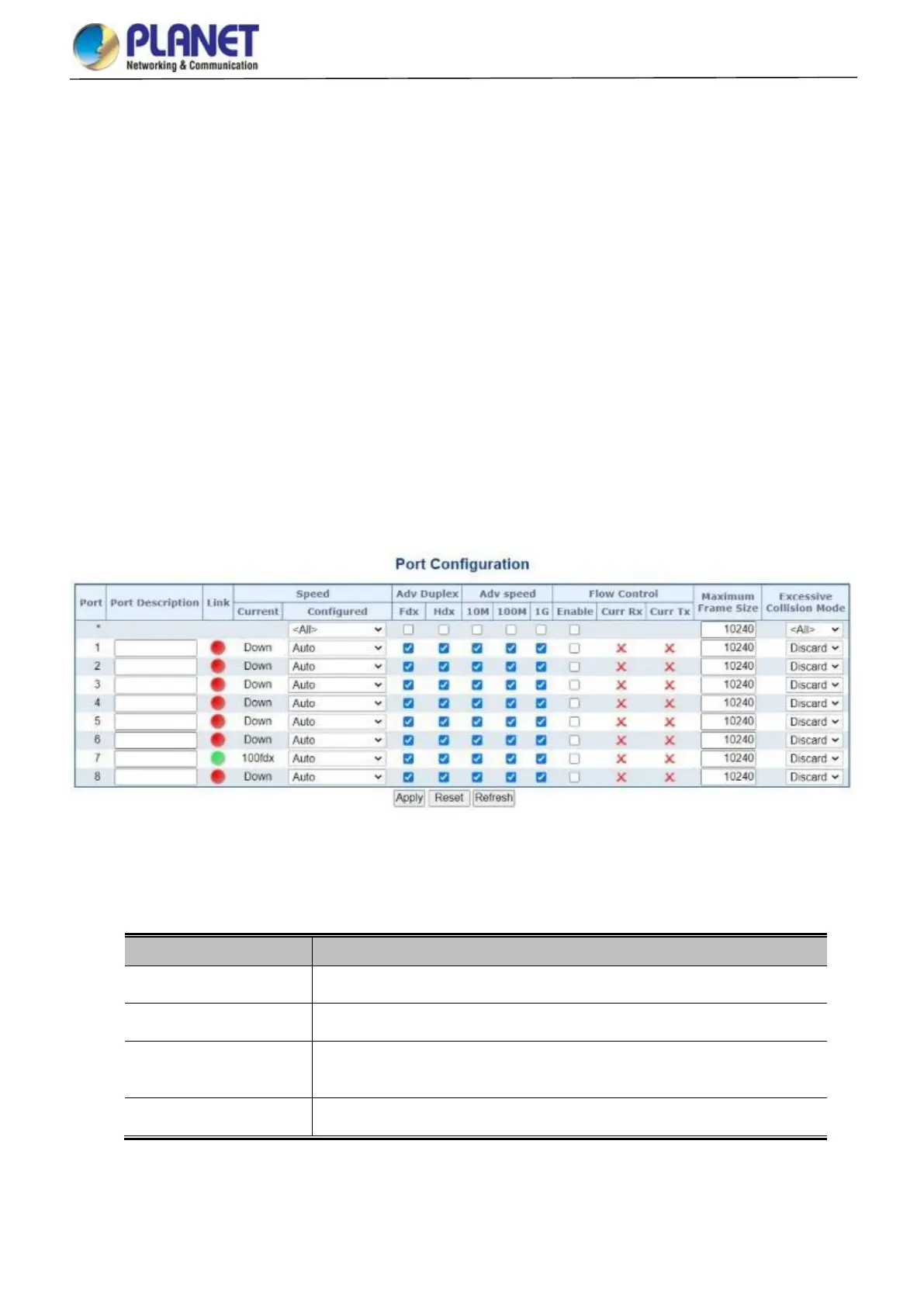

Figure 4-3-1-1: Port Configuration Page Screenshot
The page includes the following fields:
Object
Description
Port
This is the logical port number for this row.
Port Description
Indicates the per port description.
Link
The current link state is displayed graphically. Green indicates the link is up and
red indicates the link is down.
Current Link Speed
Provides the current link speed of the port.
