User’s Manual of IGS-4215 DIN-rail Series
48

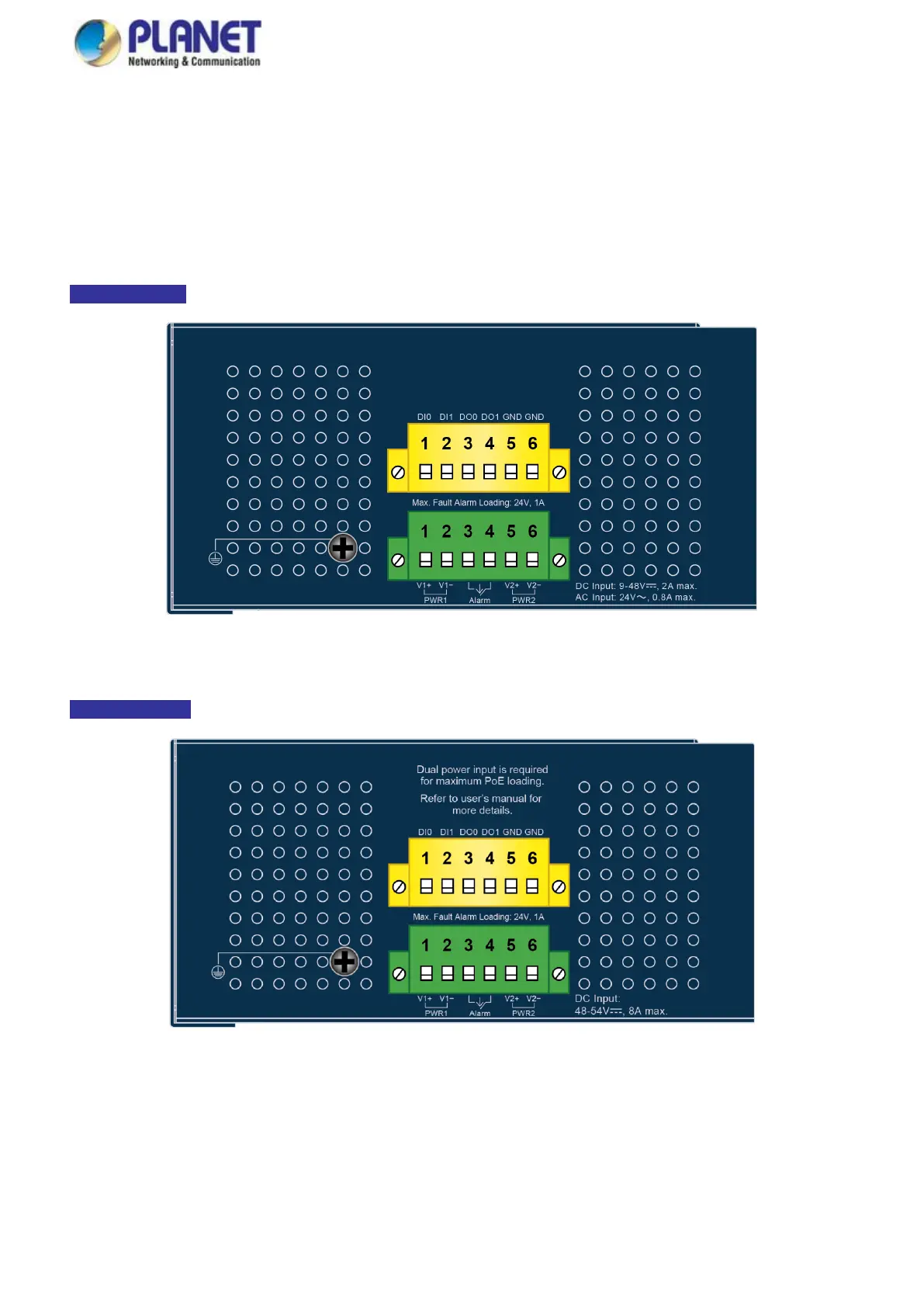

2.1.4 Switch Upper Panel
On the industrial managed switch, the upper panel features two terminal block connectors for easy identification and use: the
green connector is for the dual DC power inputs and fault alarm, while the yellow connector is designated for the digital inputs
and outputs, offering two pairs for versatile connectivity options. Figures 2-1-4a, Figures 2-1-4b, Figures 2-1-4c, Figures 2-1-
4d, and Figures 2-1-4e show the upper panels of the Industrial Managed Switch series.
IGS-4215-8T4X
Figure 2-1-4a: Upper Panel of IGS-4215-8T4X
IGS-4215-8UP4X
Figure 2-1-4b: Upper Panel of IGS-4215-8UP4X
