5

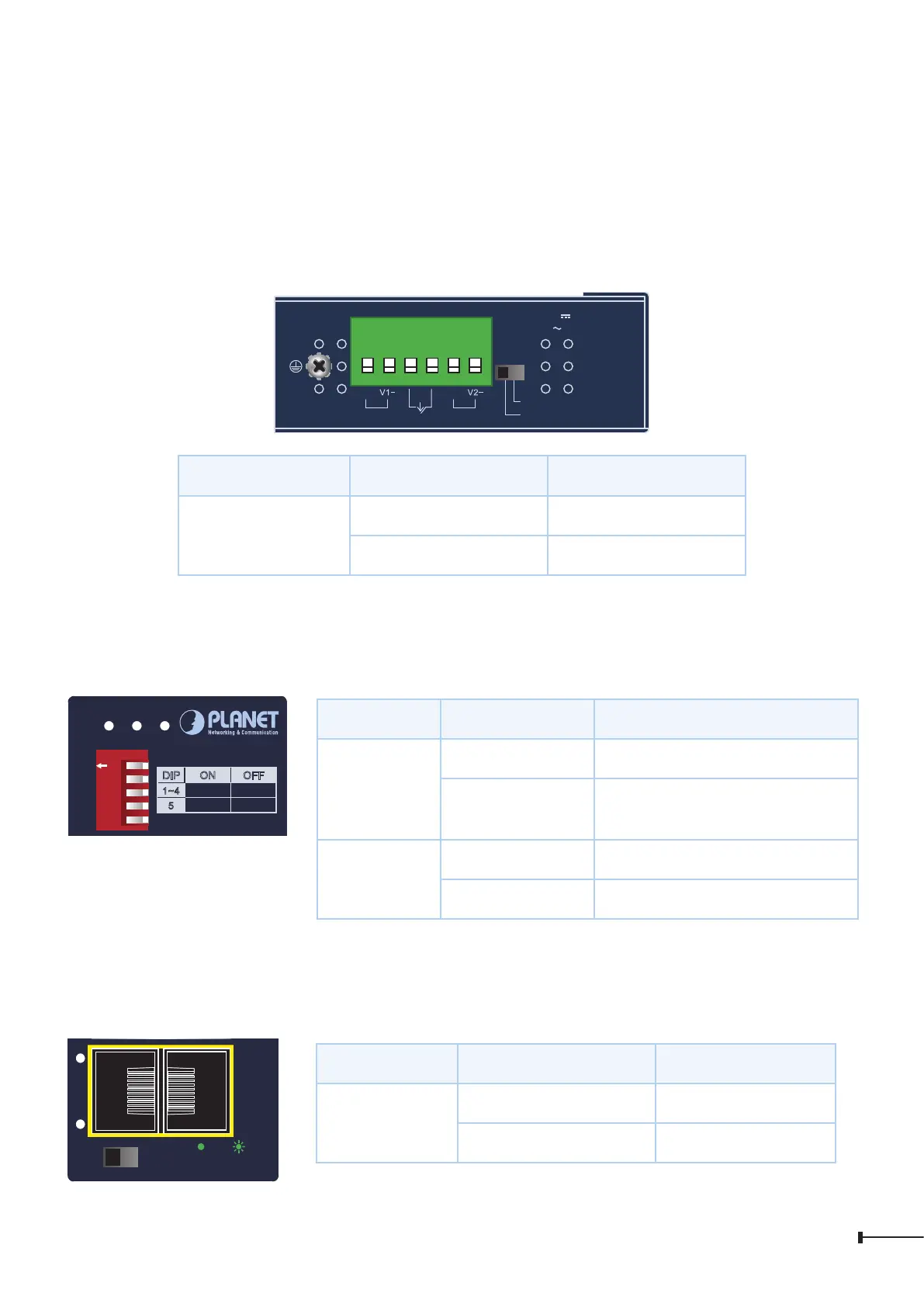

DIP Switch
The front panel of the Industrial Ring Ethernet Switch provides DIP Switch which is
forconguringRingfunctionandPoEextension.
IFGS-620TF
The DIP Switch settings and descriptions:
DC Input: 9-48V
, 1A max.
AC Input: 24V
, 0.8A max.
Switch
Ring
Fiber
Mode
V1+
V2+
PWR1
PWR2Alarm
Max. Fault Alarm Loading: 24V, 1A
1 2 3 4 5 6
DIP Switch Position Function
Mode
Ring Ring Mode
Switch (default) Switch Mode
IFGS-624PTF
The DIP Switch settings and descriptions:
P1 P2 Alarm
挖孔
DIP
Ring
ON
Extended
OFF
Standard
Standard
5
1~4
1 2 3 4 5
ON DIP
DIP Switch Position Function
DIP-1-4
OFF (default) Standard (Switch Mode)
ON
Ports 1-4 Extend Mode
(250m)
DIP-5
OFF (default) Standard (Switch Mode)
ON Ring Mode
IFGS-1222TF
The DIP Switch settings and descriptions:
IFGS-1222TF
RingSwitch
11
12
ACT1000 LNK
11 12
挖孔
DIP Switch Position Function
Mode
Ring Ring Mode
Switch (default) Switch Mode
