User’s Manual of ICA-x80 series

70

③ Loiter Detection (For ICA-M3580P and ICA-M4580P)

The loiter detection function is used to detect that the target stays within the set area for more than

the set time threshold, and then alarms according to the judgment result.

The specific operation steps are as follows:

Step 1: In the main interface click on the "Configuration → Events → Smart Event →

Loiter Detection" to enter the Loiter Detection settings interface, as shown in Figure 8-36.

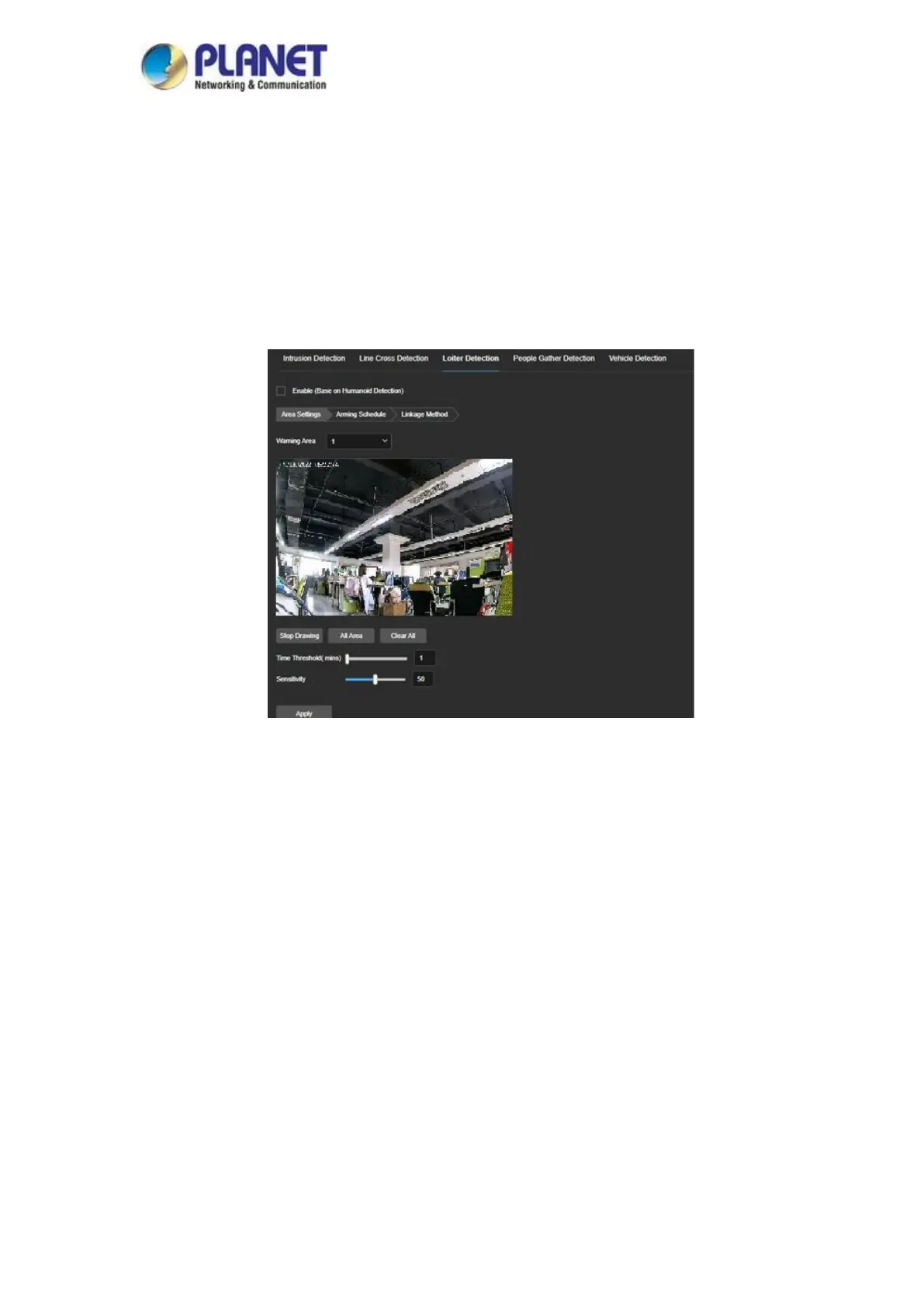

Figure 8-36

Step 2: Check "Enable" to enable loiter detection.

Step 3: Select "Warn Region": The system supports setting up to 4 warn region. After selecting a

warn region, you need to make the following settings. After setting, please click "Save" below.

【Drawing Area】 Click "Drawing Area", move the mouse to the preview screen, click the left

mouse button and draw the endpoint of the quadrilateral guard area, then click the preview interface

to complete the area drawing.

【All Area】 When need all areas to be detected, click "All Area" to automatically select all areas.

【Clear All】 Used to delete the selected alert area.

【Time threshold(min)】 Indicates that the target generates an alarm after continuous movement

in the detection area. The larger the time threshold, the longer the target continues to move in the

detection area to trigger an alarm.

【Sensitivity】 Used to set the sensitivity of detected area intrusion. The default is 50. Drag the

progress bar or enter the value directly in the value box to modify the sensitivity. The greater the

sensitivity, the easier it is to trigger an alarm.

Step 4: When you need to set other Warn Region, repeat step 3 to complete the setup.
