User’s Manual of ICA-x80 series
48
In the main interface, click "Config Video" to enter the video and audio configuration interface,
where you can set the device video, audio and other functions.
8.4.1 Video
In the main interface click "Config Video Video" into the video configuration interface, where
you can set the IP Camera device name, stream type, encoding and other video parameters, as
shown in Figure 8-9:

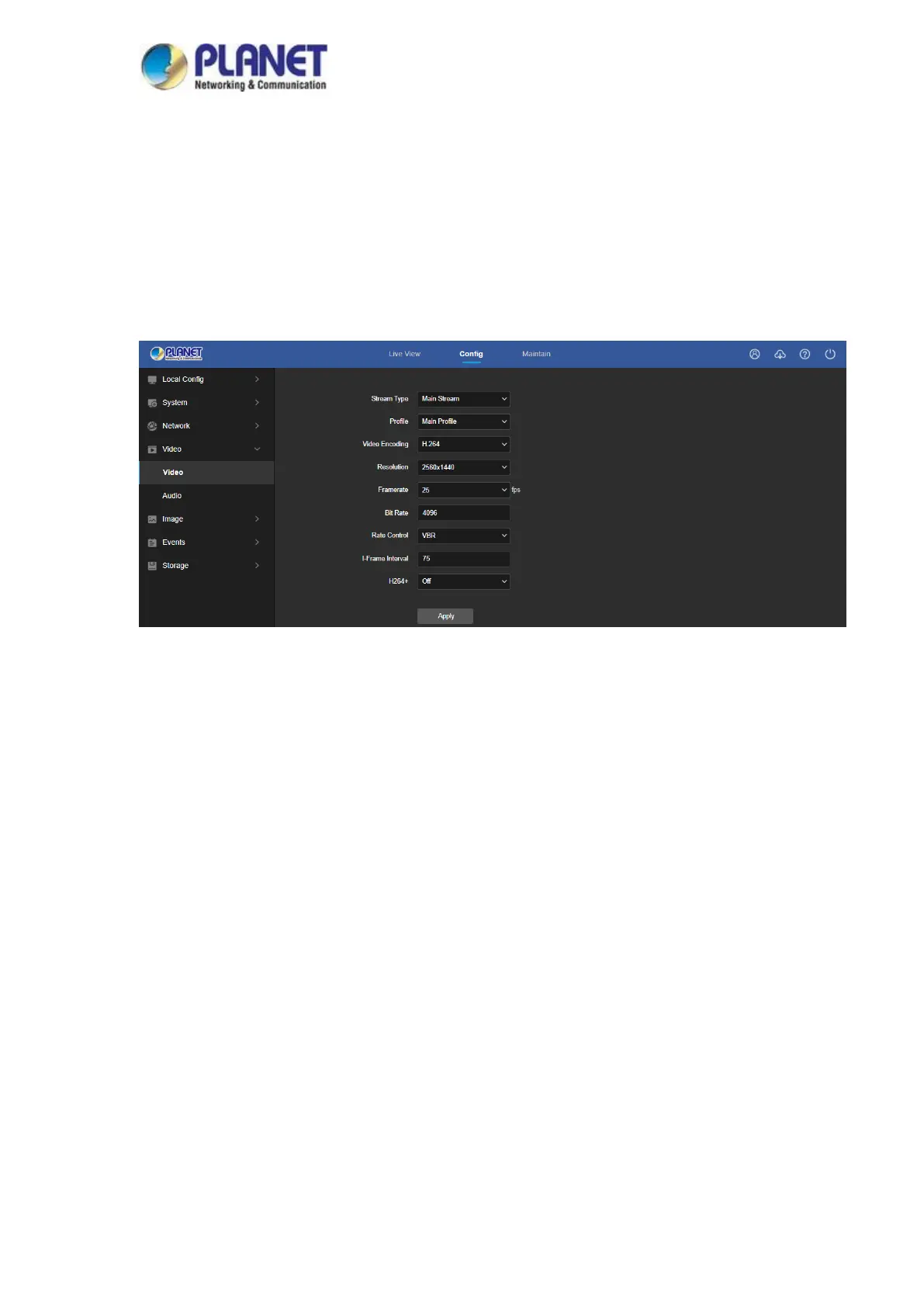

Figure 8-9
【Stream Type】Default is the Main Stream, you can select Sub Stream.
【Profile】Default is the Main Profile; you can select Baseline Profile or High Profile.
【Video Encoding】Switch the encoding method in the drop-down menu.
【Resolution】Switch the output resolution in the drop-down menu.
【Framerate】Set the frame rate of the current output video of the device.
【Bit Rate】Supports 64-12000kbps. The higher the bit rate goes, the better the video quality will
be, but it occupies the greater network bandwidth and the greater the pressure transmission.
【Rate Control】 Switch the code rate output mode in the drop-down menu, fixed rate and
variable rate.
【I-Frame Interval】IP Camera acquisition key frame interval.
【H265+/H264+】Turn on/off the camera H265+/H264+.
