3. Device Upper Panel
The Upper Panel of the Industrial 802.11be Wireless AP consists of two terminal
block connectors within 6 contacts. Please follow the steps below to insert the power
wire.
3.1 Wiring the Power Inputs
1. Input Voltage: 9-54V DC.(For IAP-3600BE)
2. Input Voltage: 48-54V DC.(For IAP-3600BE-4PF)
3. Insert positive and negative DC power wires into Contacts 1 and 2 for Power 1,
or Contacts 5 and 6 for Power 2, respectively.
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1
PWR2Alarm
DC Input:
9-54V
, 1.8A max.
1 2 3 4 5 6
1 2 3 4 5 6

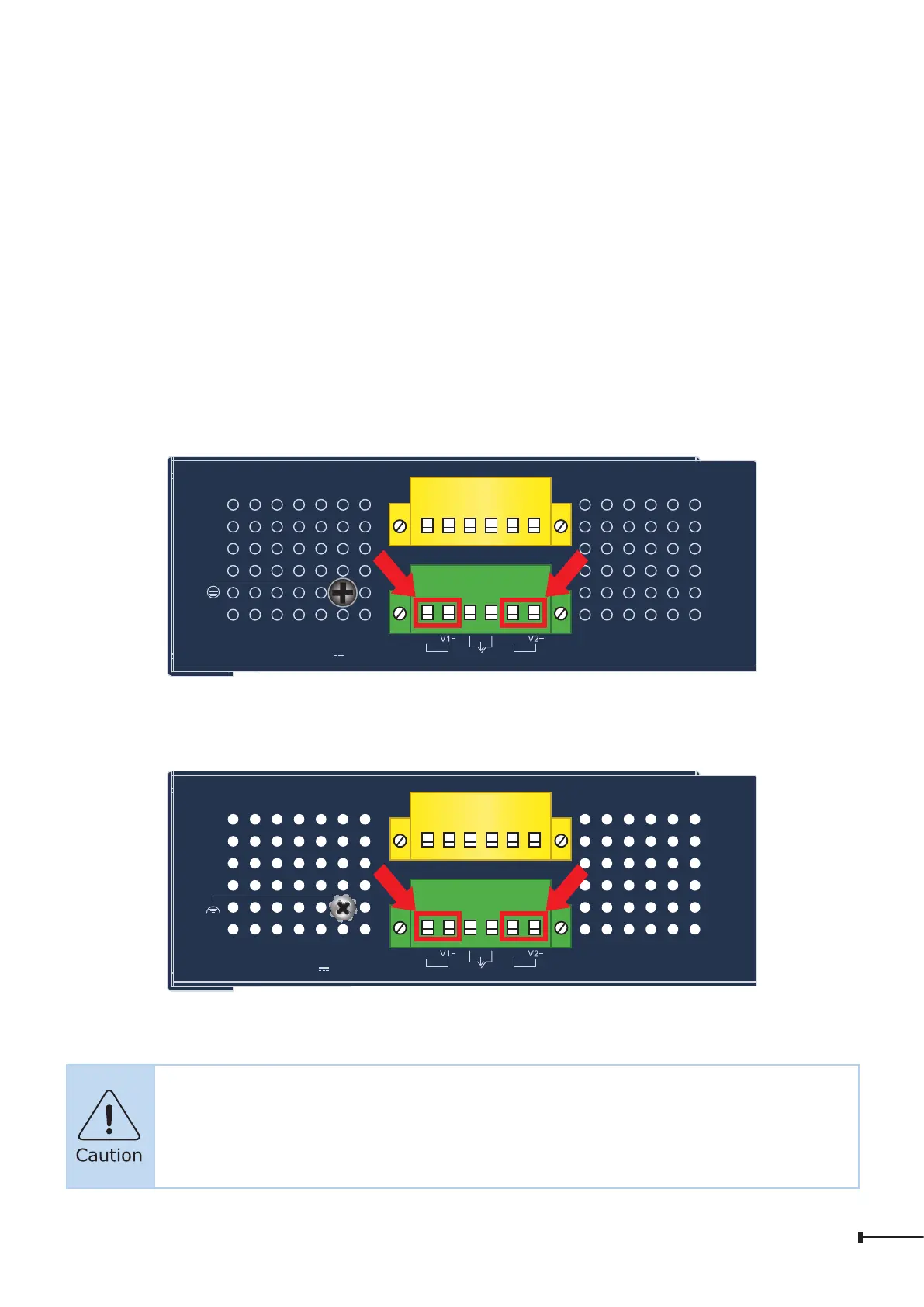

Figure 3-1: IAP-3600BE Upper Panel Power Input
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1
PWR2Alarm
DC Input:
48-54V
, 3.5A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-2: IAP-3600BE-4PF Upper Panel Power Input
When performing any of the procedures like inserting the wires or tight-
ening the wire-clamp screws, make sure the power is OFF to prevent
from getting an electric shock.
