User’s Manual of GS-6322 Managed Switch Series
50
3.3 Administration Console
The administration console is an internal, character-oriented, and command line user interface for performing system
administration such as displaying statistics or changing option settings. Using this method, you can view the administration
console from a terminal, personal computer, Apple Macintosh, or workstation connected to the Managed Switch's console
(serial) port.

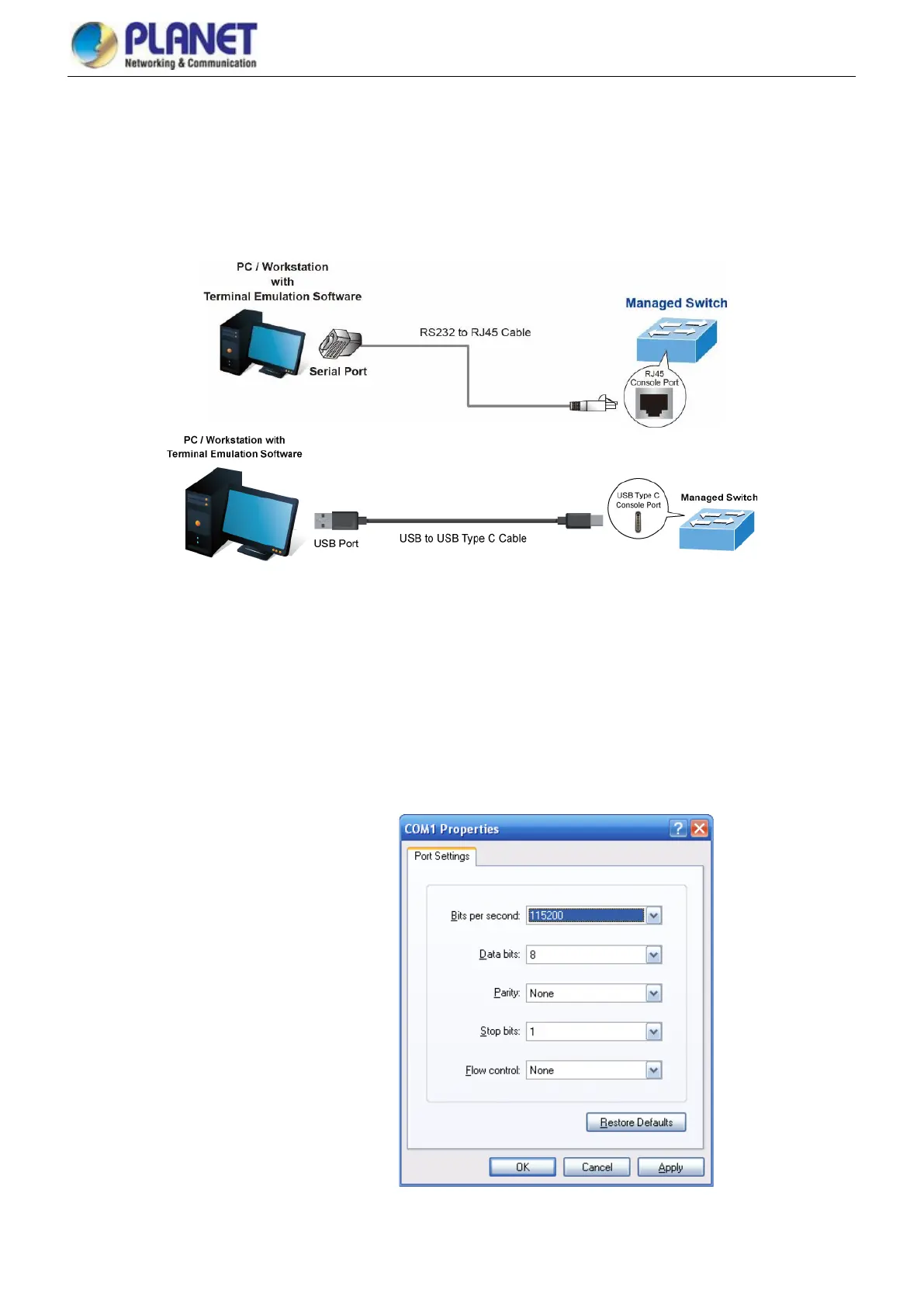

Figure 3-3-1: Console Management
Direct Access
Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a terminal-
emulation program (such as HyperTerminal) to the Managed Switch console (serial) port. When using this management
method, a straight DB9 RS232 cable is required to connect the switch to the PC. After making this connection, configure the
terminal-emulation program to use the following parameters:
The default parameters are:
◼ 115200 bps
◼ 8 data bits
◼ No parity
◼ 1 stop bit
Figure 3-3-2: Terminal Parameter Settings
