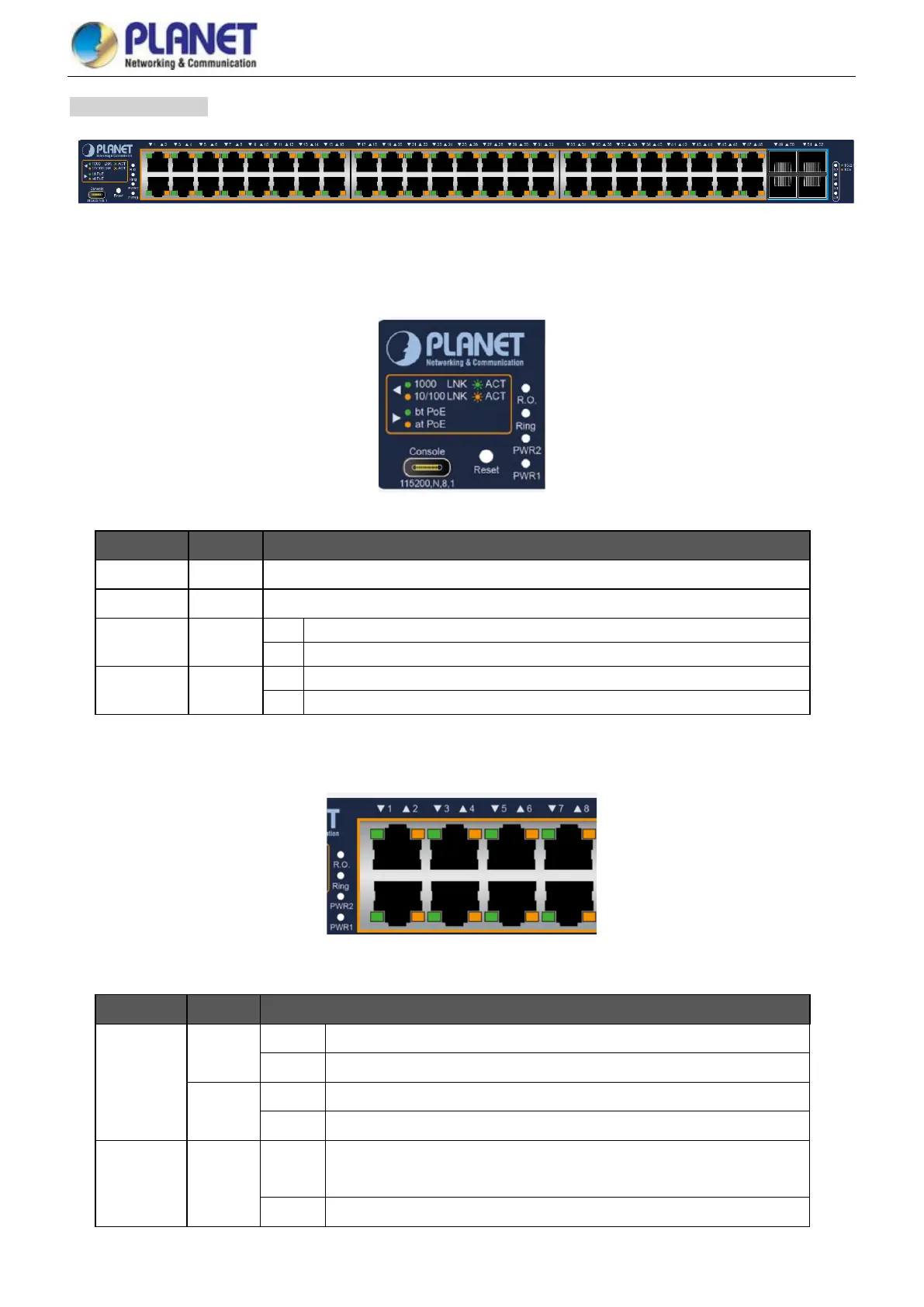

User’s Manual of GS-6322 Managed Switch Series
35
GS-6322-48UP4X
Figure 2-1-4: Front Panel of GS-6322-Series
➢ System and Power
LED
Color
Function
R.O.
Green
Lights to indicate that Switch has enabled Ring Owner.
Ring
Green
Lights to indicate that the ERPS Ring has been created successfully.
PWR2
Green
Lit:
Power 2 is activated.
Off:
Power 2 is inactivated.
PWR1
Green
Lit:
Power 1 is activated.
Off:
Power 1 is inactivated.
➢ 10/100/1000BASE-T Interfaces (Port-1 to Port-48)
LED
Color
Function
Ethernet
Green
Lights:
To indicate that the port is operating at 1000Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
Amber
Lights:
To indicate that the port is operating at 10/100Mbps.
Blinks:
To indicate that the switch is actively sending or receiving data over that port.
PoE
Green
Lights:
To indicate the port is providing DC in-line power with 802.3bt PoE++ mode
or PoH mode.
Off:
To indicate the connected device is not a PoE Powered Device (PD)
