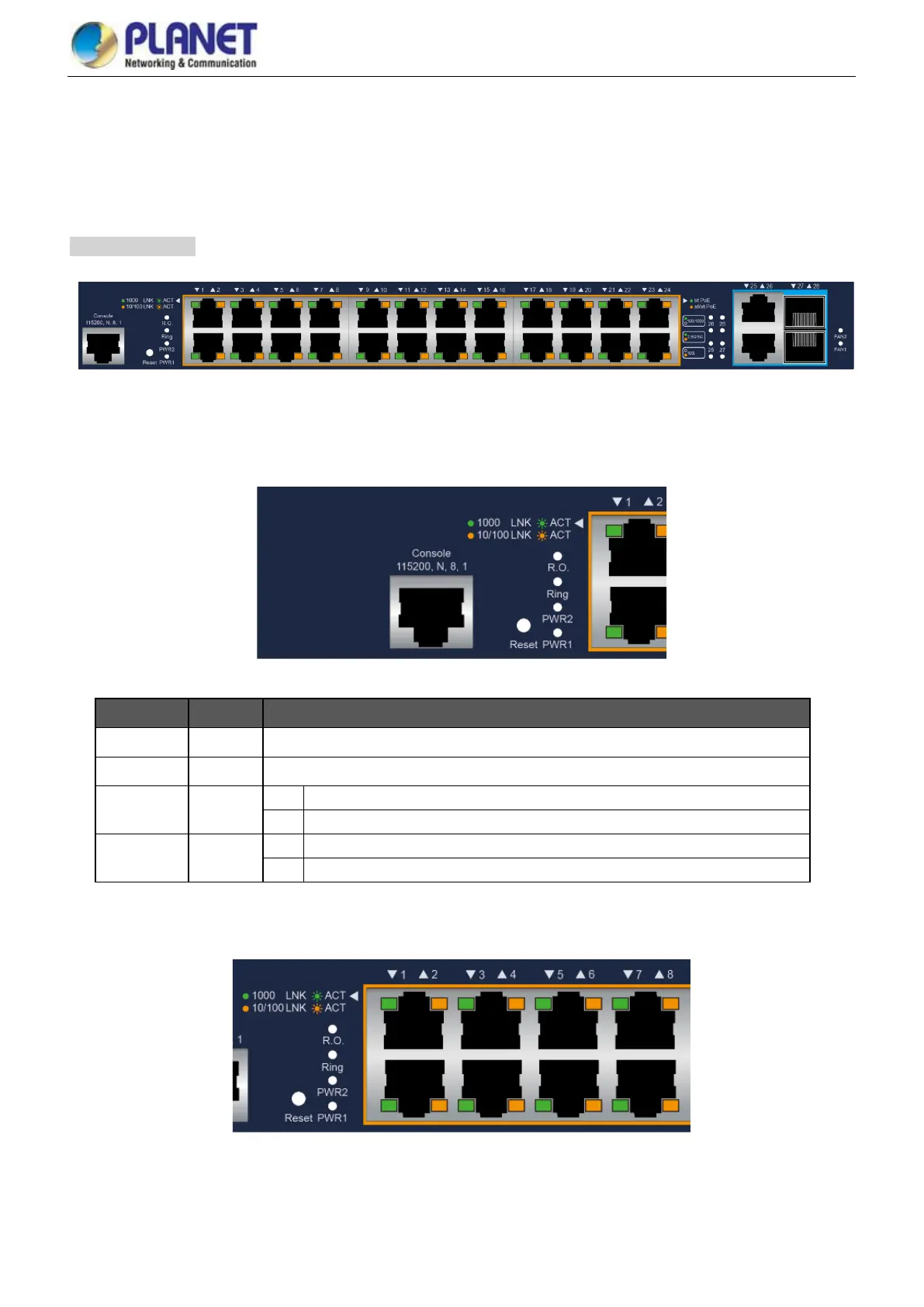

User’s Manual of GS-6322 Managed Switch Series
33
2.1.2 LED Indications
The front panel LEDs indicate instant status of power and system status, Ring, port links and data activity; they help monitor
and troubleshoot when needed. Figures 2-1-2 show the LED indications of the Managed Switches.
GS-6322-24P4X
Figure 2-1-3: Front Panel of GS-6322-Series
➢ System and Power
LED
Color
Function
R.O.
Green
Lights to indicate that Switch has enabled Ring Owner.
Ring
Green
Lights to indicate that the ERPS Ring has been created successfully.
PWR2
Green
Lit:
Power 2 is activated.
Off:
Power 2 is inactivated.
PWR1
Green
Lit:
Power 1 is activated.
Off:
Power 1 is inactivated.
➢ 10/100/1000BASE-T Interfaces (Port-1 to Port-24)
