User’s Manual of GS-6322 Managed Switch Series
31
2. INSTALLATION
This section describes the hardware features and installation of the Managed Switch on the desktop or rack mount. For easier
management and control of the Managed Switch, familiarize yourself with its display indicators, and ports. Front panel
illustrations in this chapter display the unit LED indicators. Before connecting any network device to the Managed Switch,
please read this chapter completely.
2.1 Hardware Description
2.1.1 Switch Front Panel
The front panel provides a simple interface monitoring the Managed Switch. Figures 2-1-1 show the front panels of the
Managed Switches.

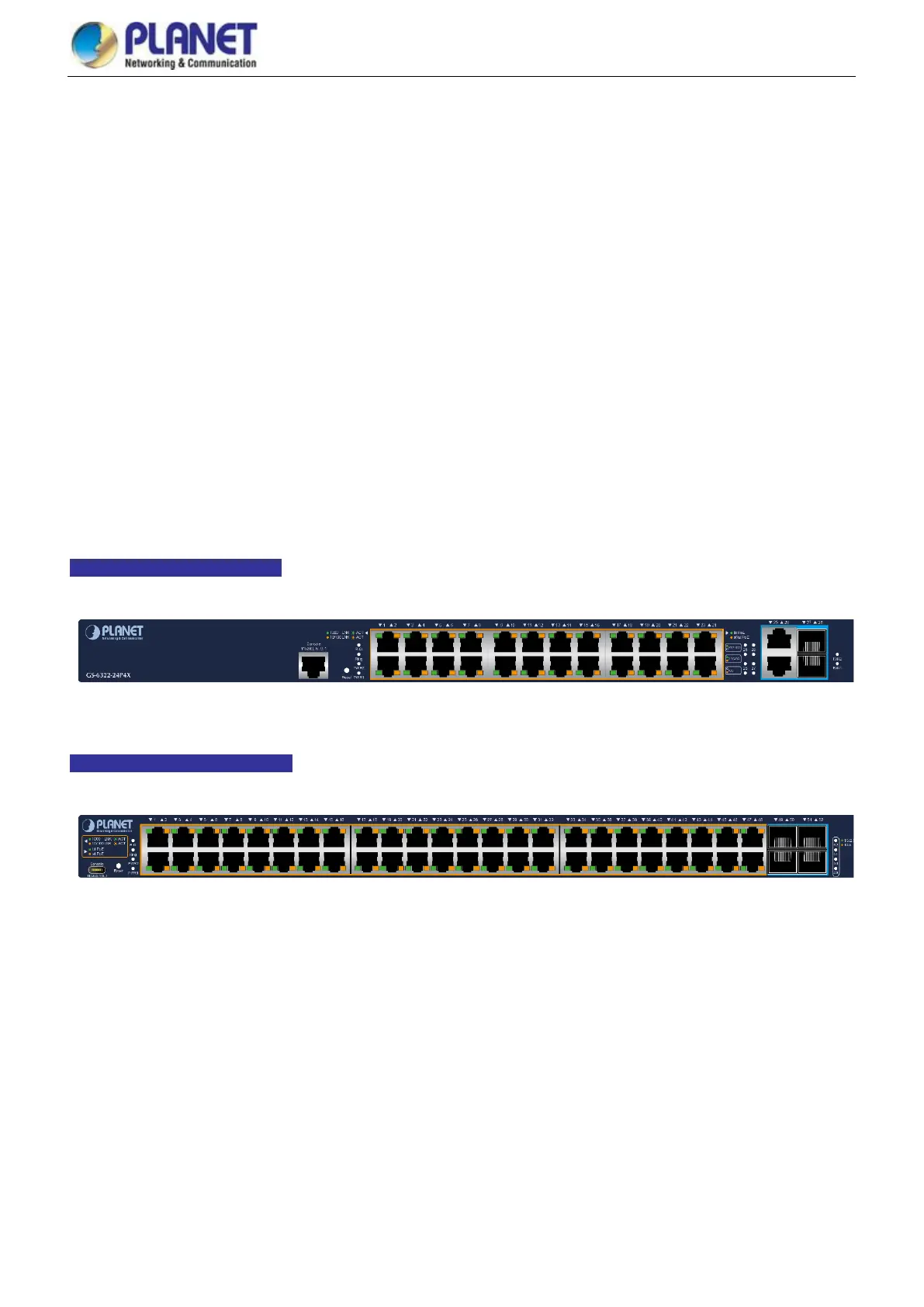

GS-6322-24P4X Front Panel
Figure 2-1-1: Front Panel of GS-6322-24P4X
GS-6322-48UP4X Front Panel
Figure 2-1-2: Front Panel of GS-6322-48UP4X
■ Gigabit TP interface
10/100/1000BASE-T Copper, RJ45 twisted-pair: Up to 100 meters
■ 10Gigabit TP interface
10M/100M/1G/2.5G/5G/10G BASE-T Copper, RJ45 twisted-pair: Up to 100 meters
■ 10 Gigabit SFP+ slot
1/10GBASE-SR/LR mini-GBIC slot, SFP+ (Small Factor Pluggable Plus) Transceiver module supports from 300 meters
(multi-mode fiber) up to 10 kilometers (single mode fiber)
