User’s Manual of GS-6322 Managed Switch Series
148

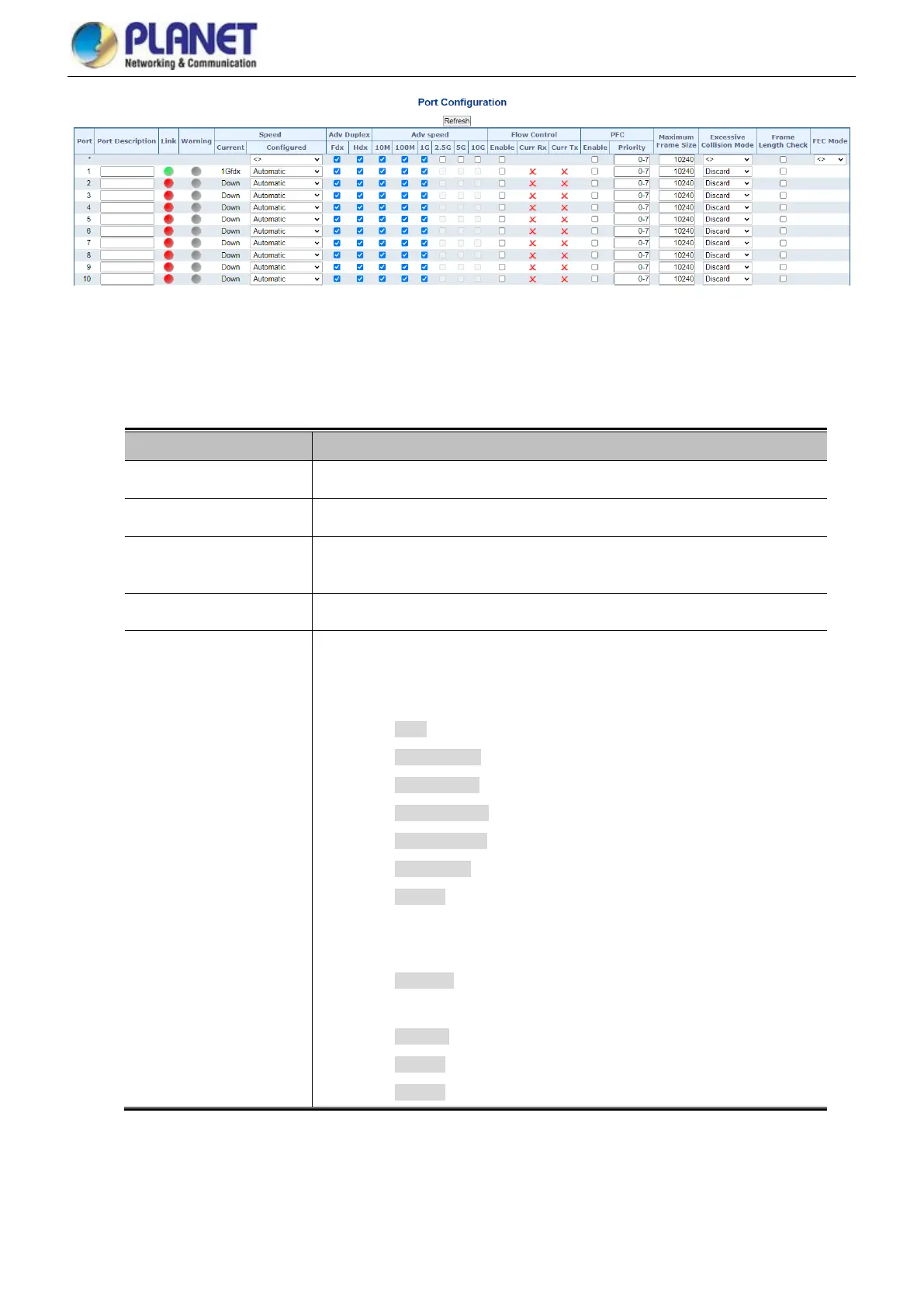

Figure 4-3-1-2: Port Configuration Page Screenshot
(Only applies to switches installed with firmware after vx.2112bxxxxxx )
The page includes the following fields:
Object
Description
• Port
This is the logical port number for this row.
• Port Description
Indicates the per port description.
• Link
The current link state is displayed graphically. Green indicates the link is up and
red indicates the link is down.
• Current Link Speed
Provides the current link speed of the port.
• Configured Link Speed
Select any available link speed for the given switch port. Draw the menu bar to
select the mode.
Copper interface:
◼ Auto – It is default mode. Set up Auto negotiation.
◼ 10Mbps HDX - Force sets 10Mbps/Half-Duplex mode.
◼ 10Mbps FDX - Force sets 10Mbps/Full-Duplex mode.
◼ 100Mbps HDX - Force sets 100Mbps/Half-Duplex mode.
◼ 100Mbps FDX - Force sets 100Mbps/Full-Duplex mode.
◼ 1Gbps FDX - Force sets 1000Mbps/Full-Duplex mode.
◼ Disable – Shut down the port manually.
Fiber interface:
◼ 10G FDX –It is default mode. Force sets 10000Mbps/Full-Duplex
mode.
◼ 1G Auto – Set up 1G Auto negotiation. (Only supports 1000Mbps)
◼ 1G FDX - Force sets 1000Mbps/Full-Duplex mode.
◼ Disable – Shut down the port manually.
