the size and installation instructions for screws or mounting devices may
result in electrical hazards. RISK OF ELECTRIC SHOCK!
WARNING! Do not damage the wiring in the wall while drilling. RISK
OF ELECTRIC SHOCK!
NOTICE! Two assistants are required for installation.
NOTICE! Any damage caused by an appliance that is improperly installed
and improperly connected to the mains is not covered by the warranty or
guarantee.
We recommend carrying out the installation of the extractor hood by qualified
personnel. Damages caused by improper installation of the appliance are not
subject to the guarantee or warranty!

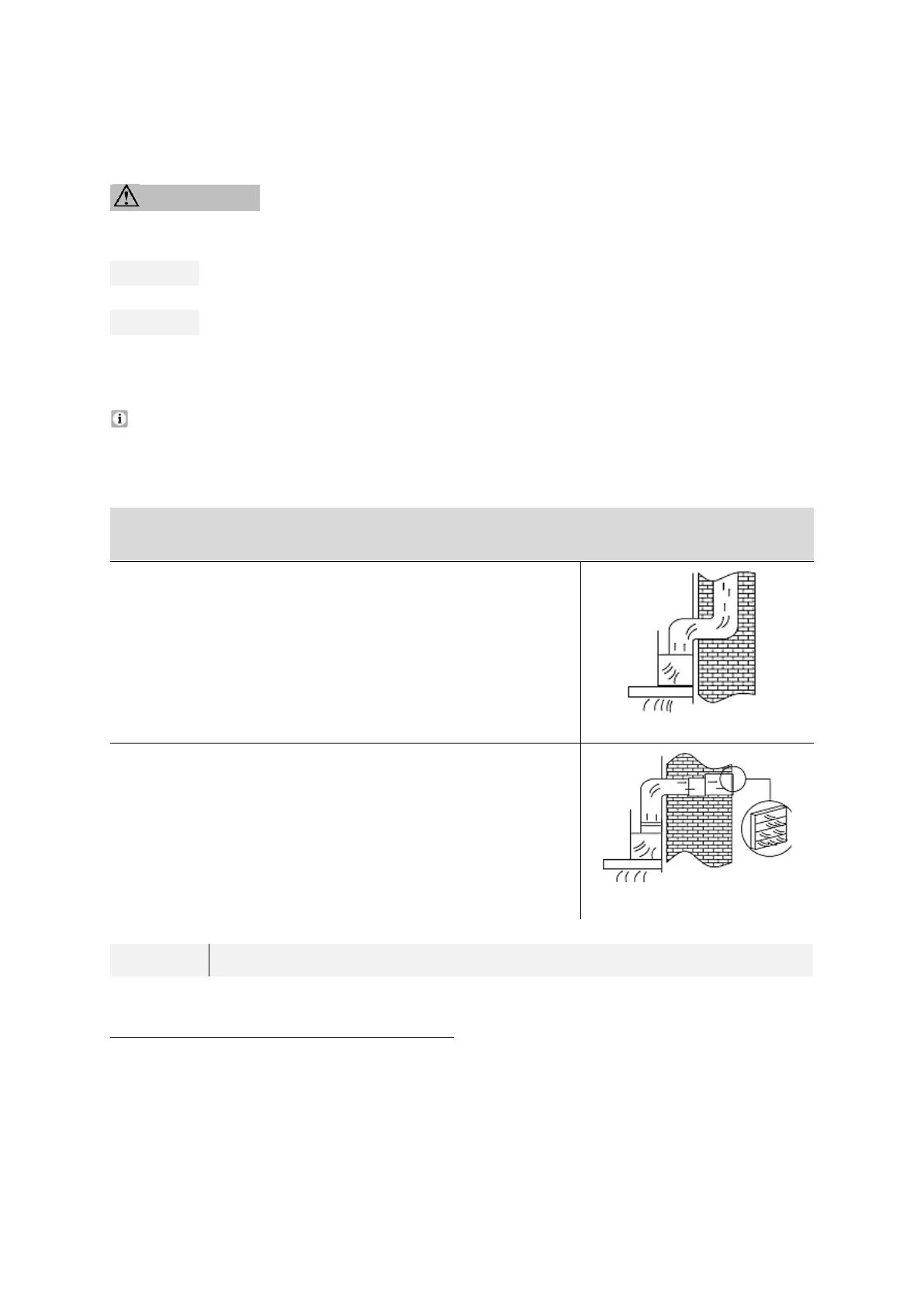

YOU CAN LAY THE EXHAUST HOSE AS FOLLOWS
(FOR EXTRACTION MODE ONLY)
VERTICALLY: lay the exhaust hose to a roof cap*.
Fig. similar.
HORIZONTALLY: lay the exhaust hose to an exhaust
outlet equipped with an air grille*.
Fig. similar.
*
Article not included in the scope of delivery.
2.5.1 Installation of the one-way valve
ā If your appliance does not have the one - way valve installed at the factory, you
still need to install it. The following figures only show an example of the standard
installation of an one - way valve, as the exhaust air outlet may vary depending on
the model and configuration of the appliance.
ā The one - way valve consists of two flap parts (a / b). You must install both flap
parts individually in the housing of the exhaust air outlet (c / s. fig. below).
