accumulated fat in the filters can catch fire due to the heat emission of the
hob. RISK OF FIRE!
CAUTION! Any potential user must be careful not to hit their head on
the corners and edges of the extractor hood. RISK OF BRUISES! RISK
OF INJURIES IN THE OCULAR AREA!

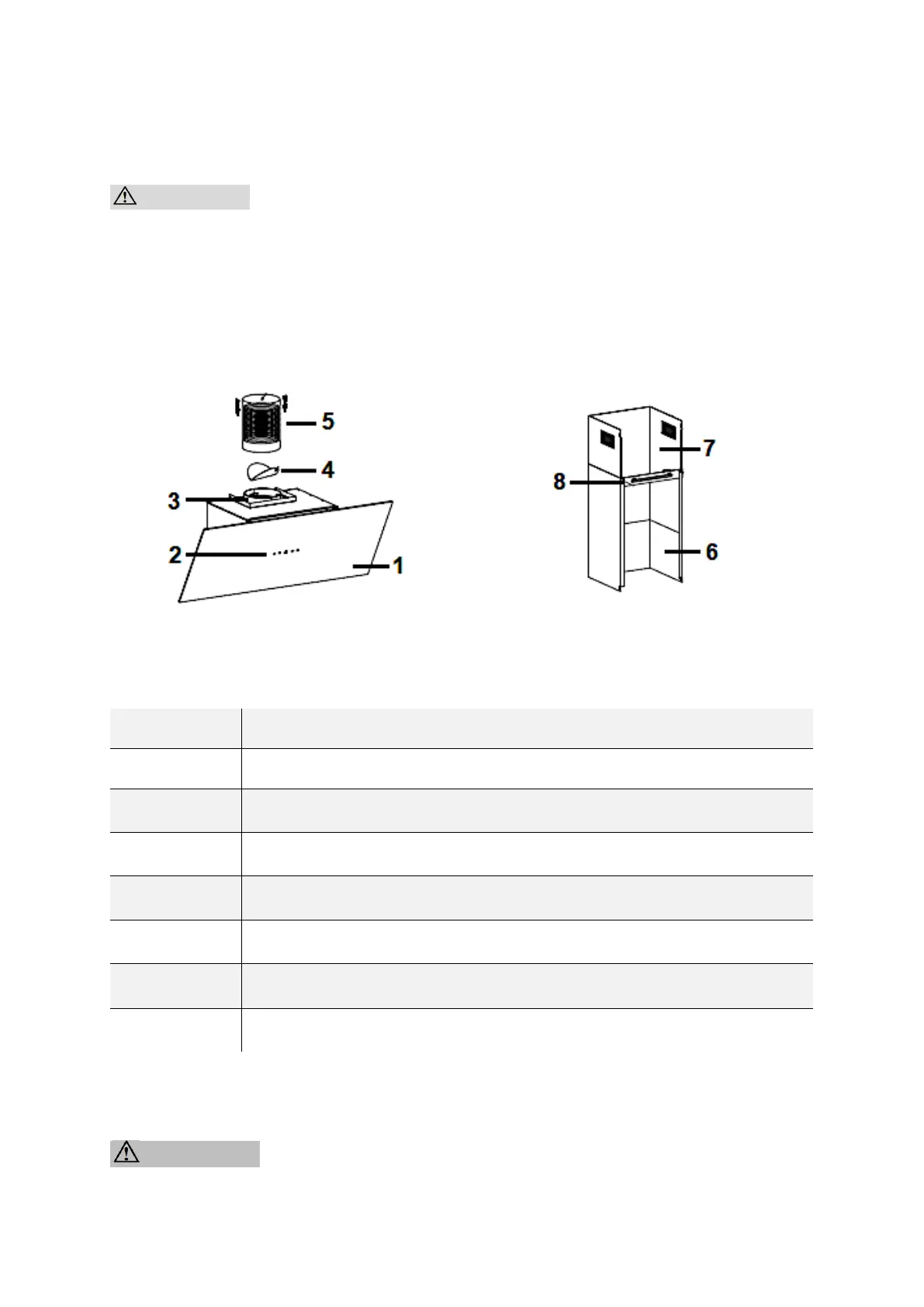

2.4 View of the appliance
Fig similar: figures serve as examples only.
1
HOUSING OF THE EXTRACTOR HOOD
2
CONTROL PANEL
3
ONE - WAY VALVE
4
EXHAUST AIR OUTLET
5
EXHAUST HOSE (for extraction mode only)
6
OUTER CHIMNEY
7
INNER CHIMNEY
8
FIXING BRACKET
2.5 Installation: one way valve / extractor hood
WARNING! For safety reasons, use only fastening or installation
screws of the sizes specified in this instruction manual. Failure to follow
