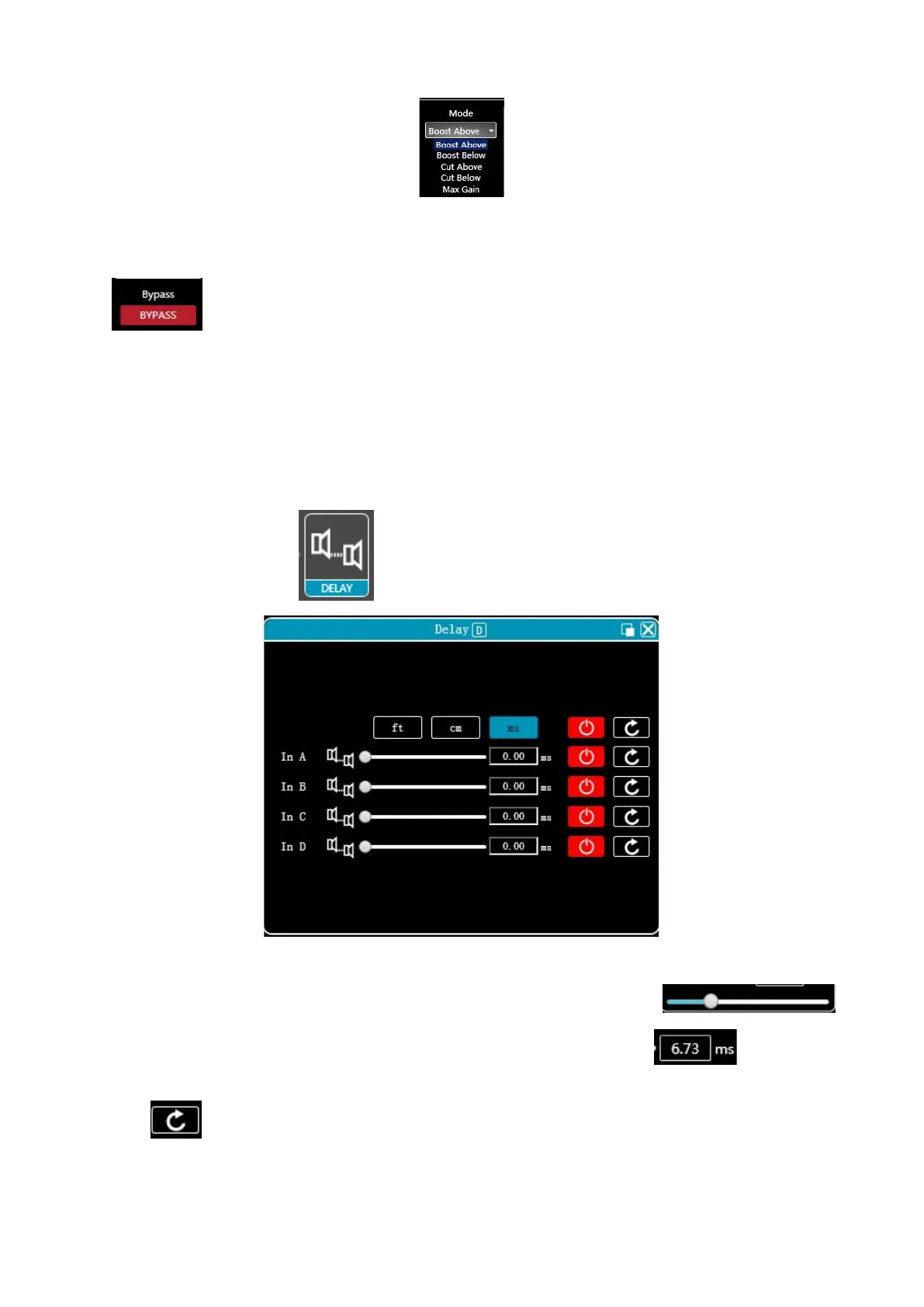

2. As shown in Figure, 4 kinds of DEQ modes: Boost Above, Boost Below, Cut Above, Cut Below, Max Gain.
Figure. DEQ mode
3. Click to choose BYPASS type or PEQ typ e.
4. Threshold, Q value, Ratio, Max Gain, Attack, Frequency, and Release time for the DEQ corresponding parameters,
which can be set by modifying the numeric box value.
7.6 Input delay
Double- click in the module button , the following figure 7.6 input delay function interface will pop up.
Figure 7.6 Input delay setting module
As shown above, the delay lists all input channels control content, drag the left slider can
directly adjust the delay value corresponding to the channel, box or value corresponding to the input values,
the right side of the switch delay function , Red is off, green is on, the reset button on the far right can directly reset the
default value of the channel delay.
