7.7 Input and output with FIR
Double-click in the function button , and the following figure 7.6 FIR function page will pop up. Upper right
corner can zoom the interface.

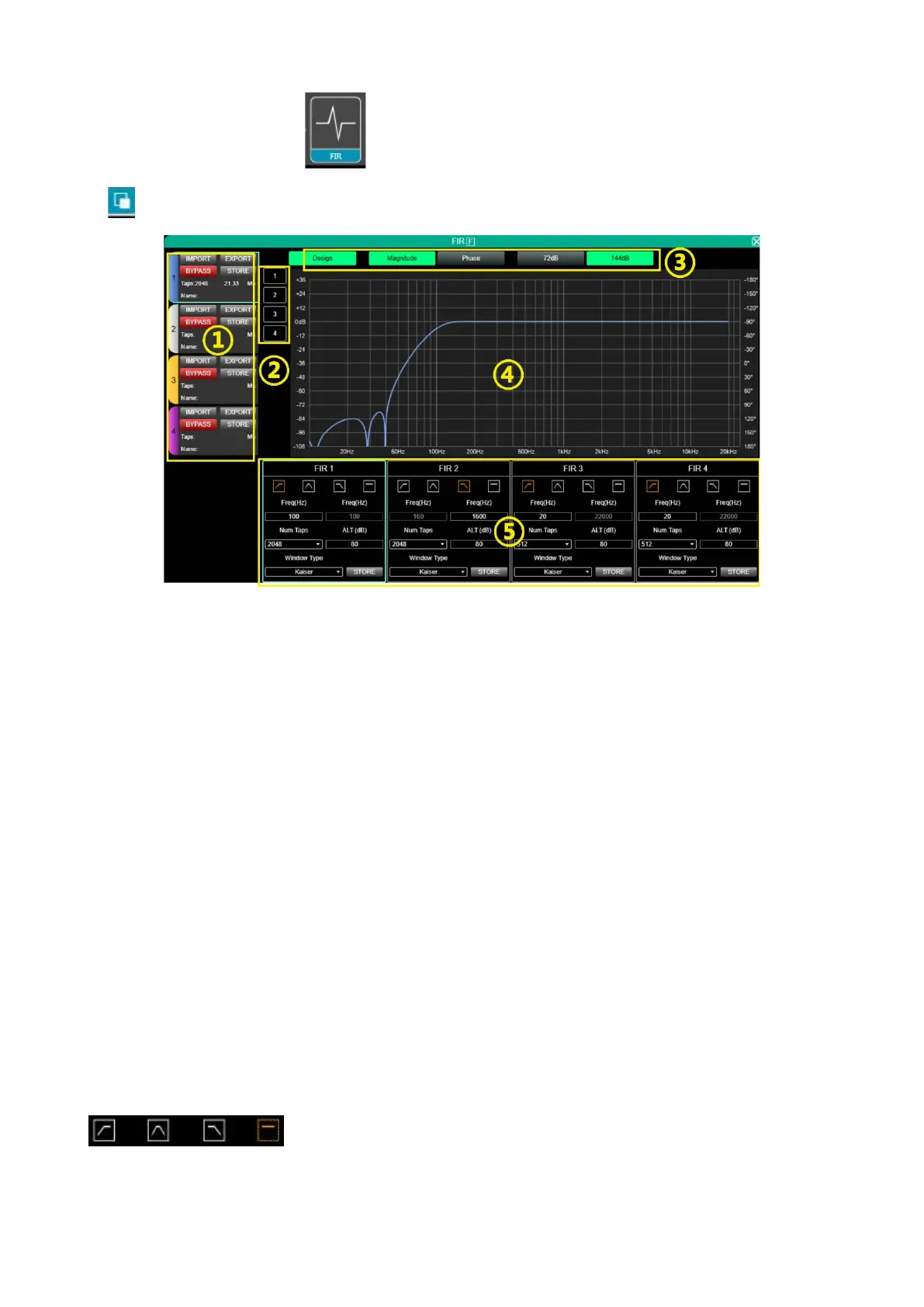

Figure 7.6 FIR setting module
～ Setting area:
IMPORT: import FIR preset file to current channel.
EXPO RT: export FIR preset file of current channel.
BYPASS: EQ is straight after bypass available, red for open, turn off manually when using FIR.
STO RE: store FIR parameters in the device.
Taps: current Taps quantity
Ms: current delay
Name: current name of FIR preset file
～ Channels select: click and show current channel with FIR curve, support multiple channels.
～ Parameters select:
Design: design switch button for interface.
Magnitude: show magnitude curve.
Phase: show phase curve.
72dB: show content accuracy within 72dB amplitude.
144dB: show content accuracy within 144dB amplitude.
～ Curve area:
- 108～ +36: amplitude accuracy, the value used for reference when the current display is an amplitude curve.
- 180°～ +180°: phase accuracy, the value used for reference when the current display is a phase curve.
20Hz～ 20kHz: bands.
～ Design area:
: high pass, frequency band, low pass, flat.
Freq(HZ): start frequency setting, high pass on the left, low pass on the right.
