17
English
DMP1616 / DMP1616D
RM-4 Preset Recall Remote
With a single RM-4 you will be able to recall up to 4
independent presets. The DMP1616 can use up to two
RM-4 remotes.
Wiring
The RM-4 can be wired to the “Preset” section on the
rear of the DMP1616.
As shown, there are 8 pins for each of the 4 preset buttons
on the RM-4, as well as grounding pins to the left. Each
of the 8 pins corresponds with a user-selected “Scene”
within the control software. The DMP1616 allows for up
to 2 RM-4 preset recall controllers to be connected.

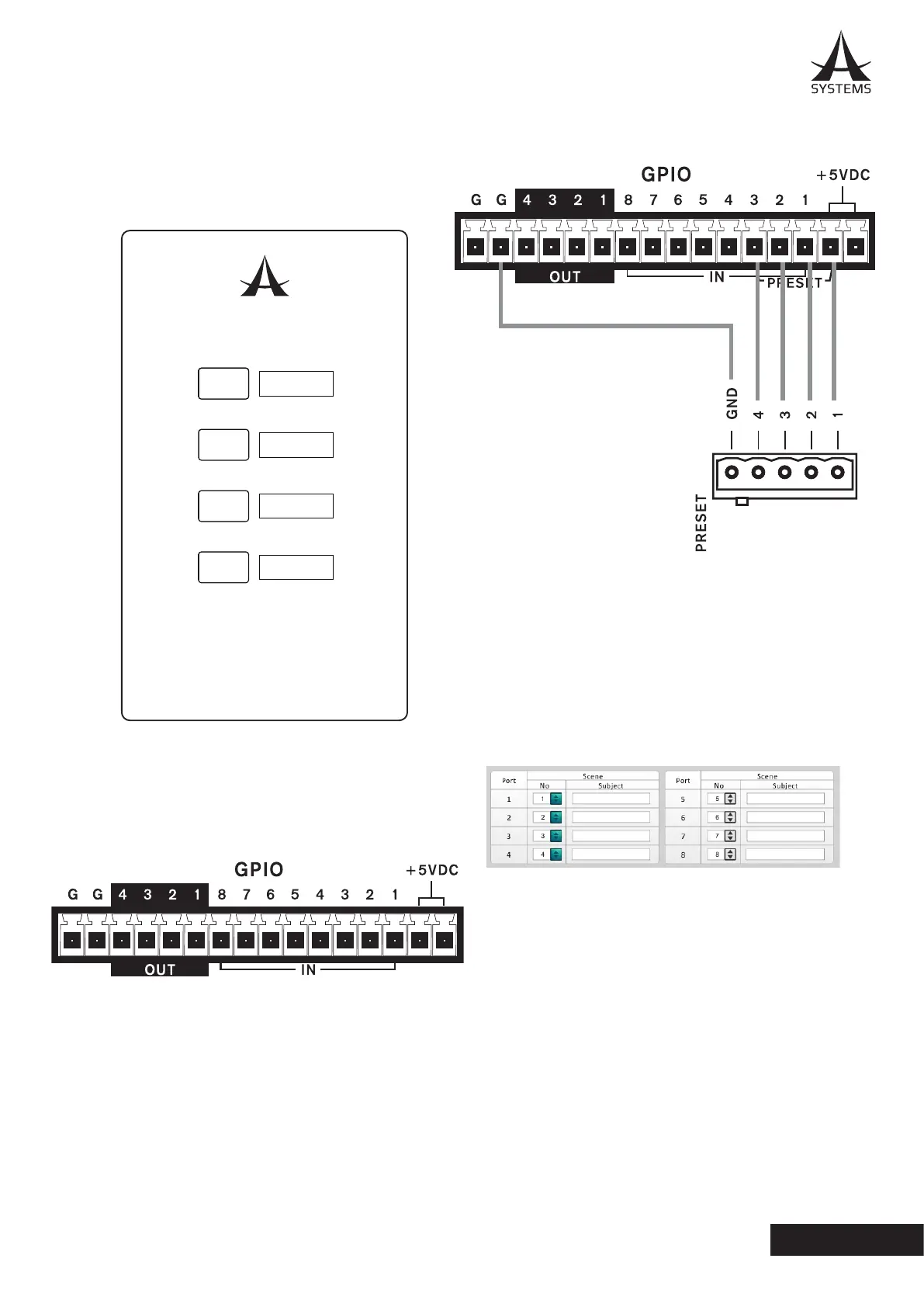

Suggested wiring:
Setup And Operation
To utilize the RM-4, you simply need to assign a preset
to each of the buttons. This is done within the Control
Software of the DMP 1616. First, enter the “Global
Settings” menu and find the GPIO submenu. Here you
will find the “Preset” panel (shown below). Each of the
pins on the rear of the device will correspond to the Ports
listed here. You can then select which “Scene” (or preset)
you wish to assign to that port.
The pre-saved scenes are all listed within the Utility
menu. Scenes can be saved (and recalled) in this
menu. The “No” in the Preset window on the GPIO
page will correspond with the ‘Scene’ numbers found
here. The Subject in the Preset window will be updated
automatically.
A single preset can be recalled at any one time. The
button selected on the RM-4 will lock down, releasing
any other preset button that may have previously been
selected.
