3.7.2 TC MOBILE I/O X200-4G AC (AC device)

WARNING: Danger to life from electric shock

During operation, certain parts of the device may be under hazardous voltages! Dis-

regarding this warning may result in property damage and/or serious personal inju-

ry!

• Never carry out work when voltage is present.

• This device is not suitable for monitoring sensitive systems or time-critical pro-

cesses. Cellular network failures or power supply interruptions may adversely

affect monitoring.

• The device is intended for installation in a control cabinet or a comparable con-

tainer. The device may only be operated once it has been installed. The control

cabinet must meet the requirements for fire protection housing in accordance

with safety standard EN 62368-1. In addition, it must provide adequate protec-

tion against electric shock (touch protection).

• It must be possible to disconnect the device from all phases of the power supply.

Install an appropriate disconnect device (all-phase fuse, miniature circuit break-

er, etc.) for this purpose.

• During electrical installation, current standards and regulations must be com-

plied with, and installation must be carried out by an expert.

WARNING: Danger to life from electric shock

Voltages above 230 V AC may not arise at the device itself. Ensure that all of the sig-

nals and the supply voltage are connected to the same neutral conductor.

• Connect the device.

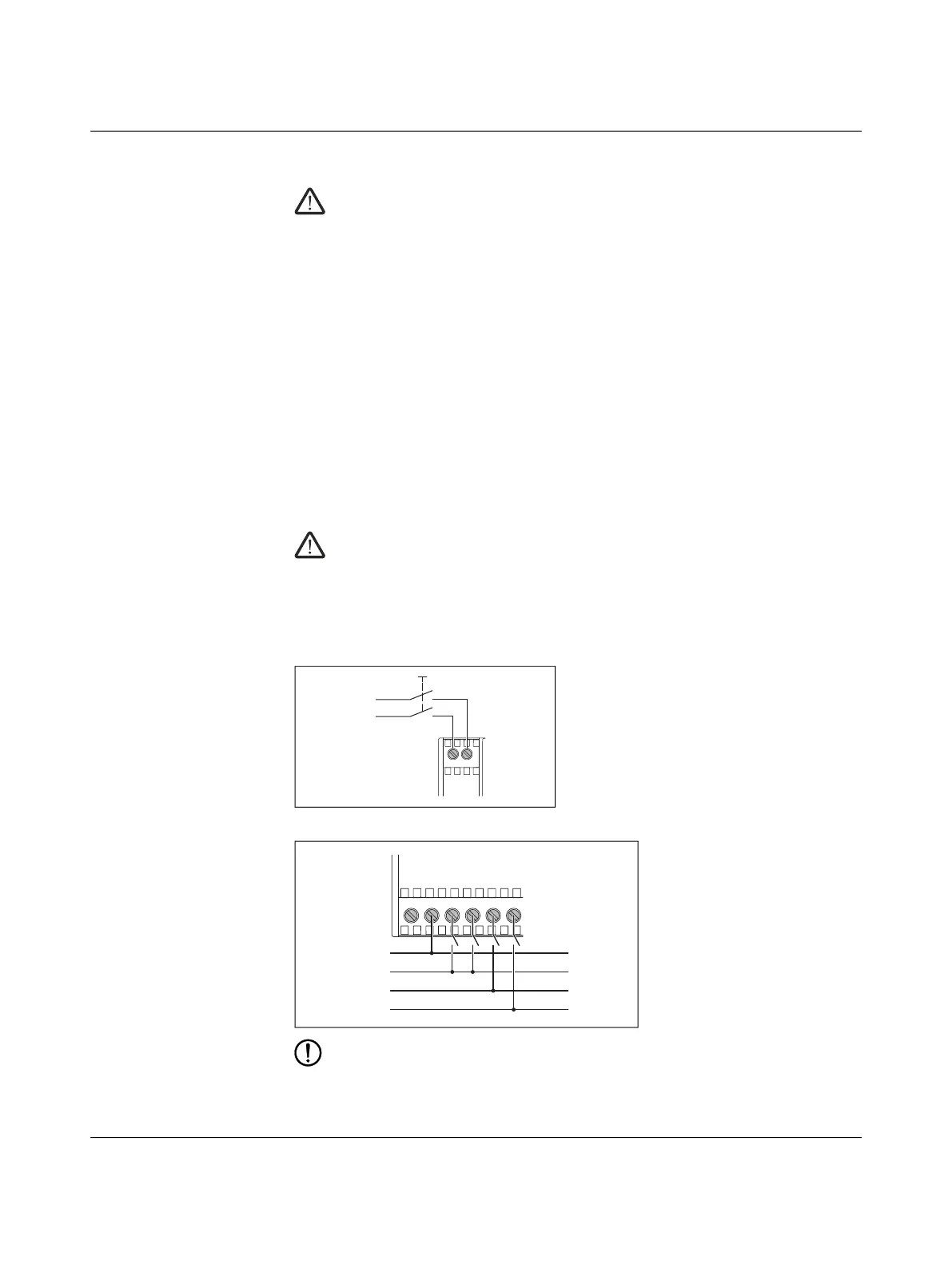

Figure 3-9 Supply voltage: 93 V AC ... 250 V AC

Figure 3-10 Digital inputs (AC device)

NOTE: Device damage

Always connect the voltage source to the center contact of the relay (UB1, UB2) and

the load to the N/O contact (O1, O2, O3, O4).

ND ND DI1 DI2 DI3 DI4
