SOLARCHECK family

56

PHOENIX CONTACT 105608_en_01

6.7 Installing the SCK-M-U-1500V voltage measuring

module

NOTE: Risk of property damage

Maintain the specified distance between the voltage measuring input and other con-

ductive parts in the vicinity. This safety distance must be observed in order to avoid

electrical sparkovers.

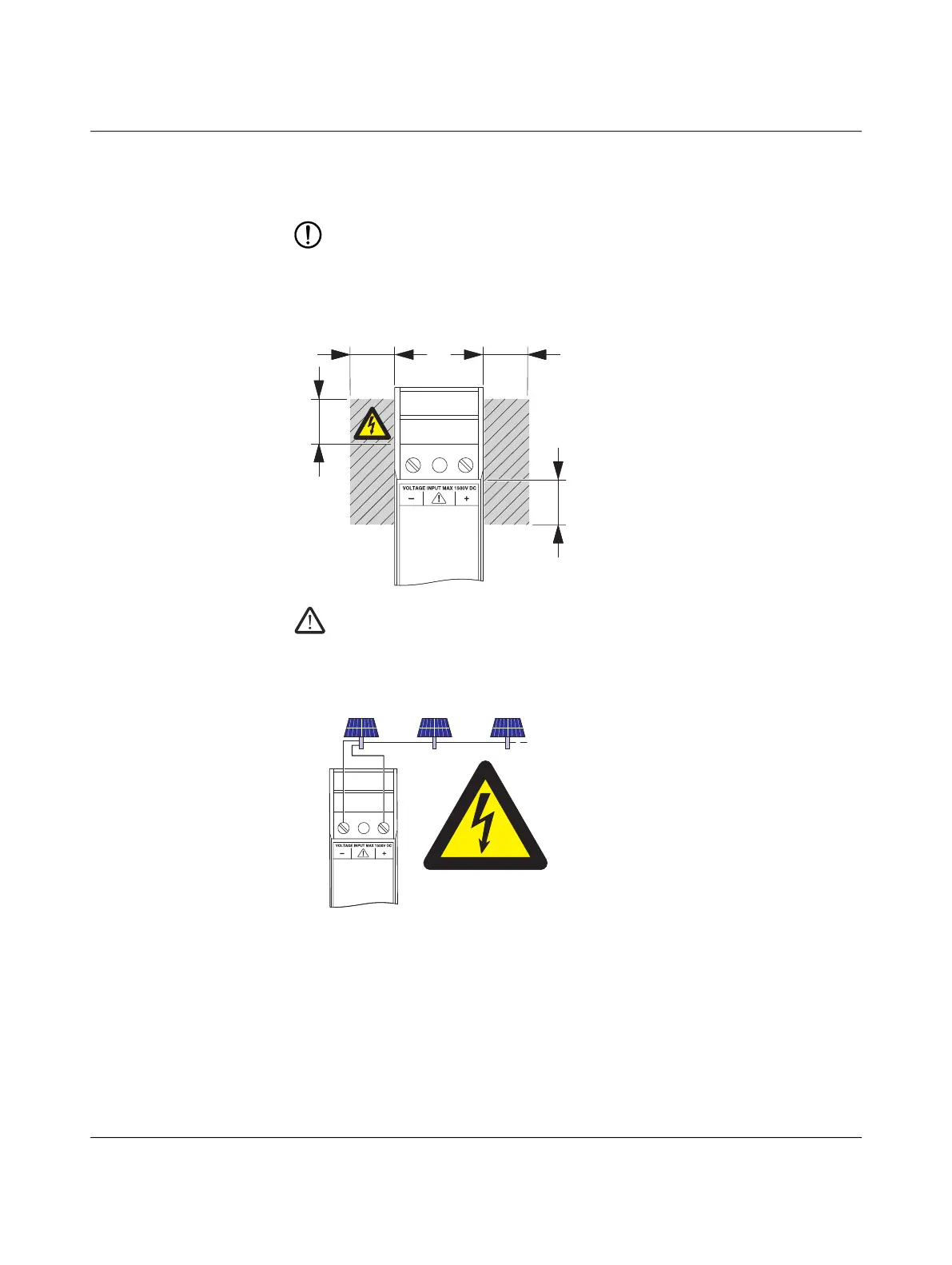

Figure 6-10 Mounting distances

WARNING: Risk of fatal electric shock

Do not install the voltage measuring device while the system is in operation. High volt-

ages may be present in parts of the system even in diffuse daylight. Observe all stat-

utory requirements for working on live parts.

Figure 6-11 High-voltage measurement connection

The module is usually connected to the corresponding 8-channel current measuring module

(SCK-M-I-8S-20A, item no. 2903241).

As an option, the voltage measuring module can also be operated as a simple analog mea-

suring device outside of the SOLARCHECK device family. Both options are described be-

low.

Opening or modifying the device is not permitted.

In the control cabinet, snap the device onto a 35 mm DIN rail in accordance with EN 50022.

32

3232

32

1500 V DC!!!
