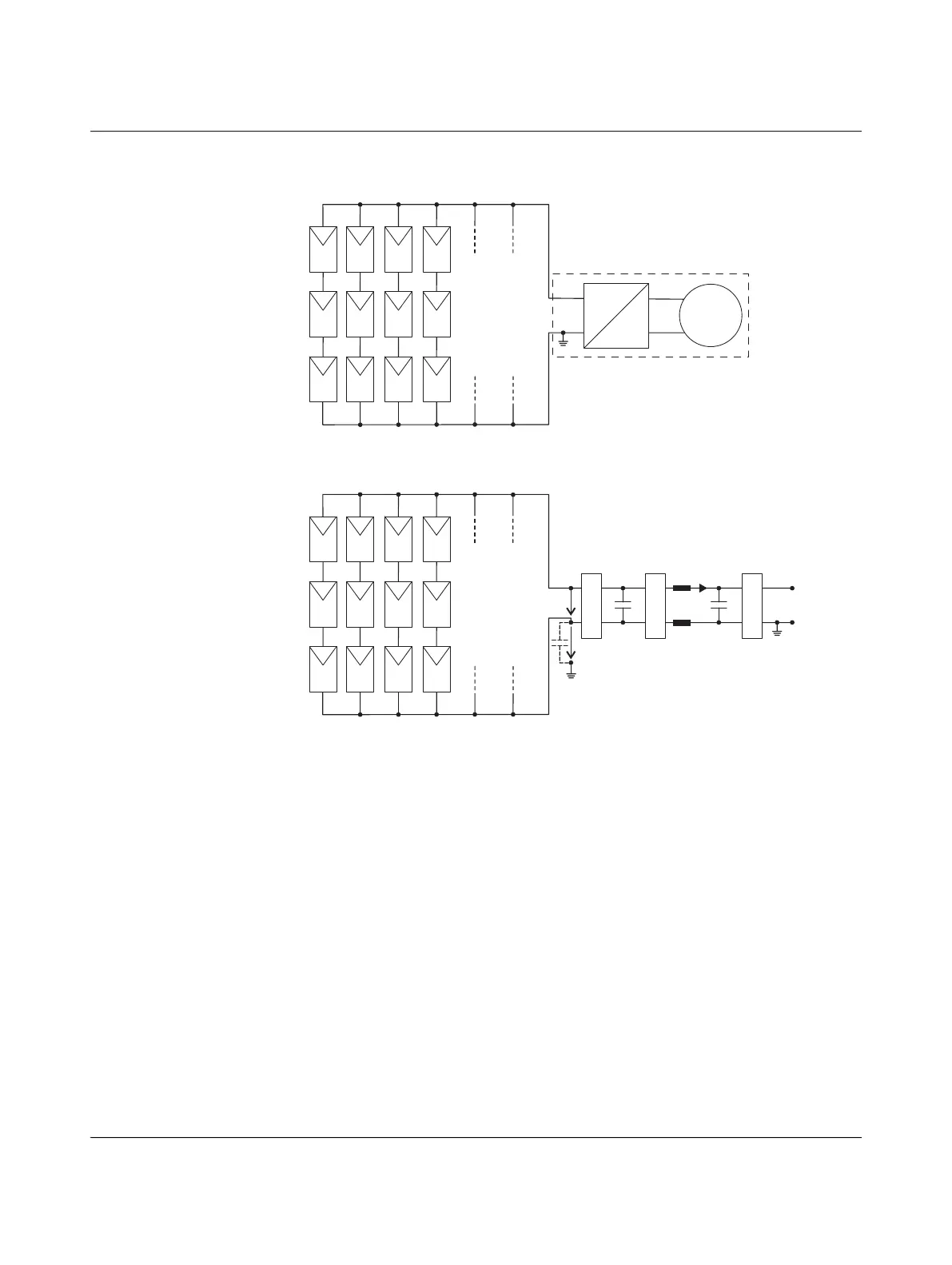

Figure 2-6 Example diagram of a generator with transformer inverter and grounding on

the negative side

Figure 2-7 Example diagram of generator with inverter without transformer

The individual strings of a PV generator, particularly in large systems with central inverters,

are connected in string combiner boxes. In these string combiner boxes, multiple PV strings

are connected together in parallel and appropriate protective devices and monitoring de-

vices are provided.

When creating your photovoltaic system, observe the necessary standards for planning and

installing photovoltaic systems, such as IEC 60364-7-712, together with corresponding

cross-references and equivalent standards.

+

–

L

N

~

=

~

V

DC

Filter Filter

H-Bridge

I

AC

V

PV-PE
