General notes on photovoltaic systems
105608_en_02 PHOENIX CONTACT 11
2 General notes on photovoltaic systems
2.1 Typical structure of large photovoltaic systems
and photovoltaic power stations

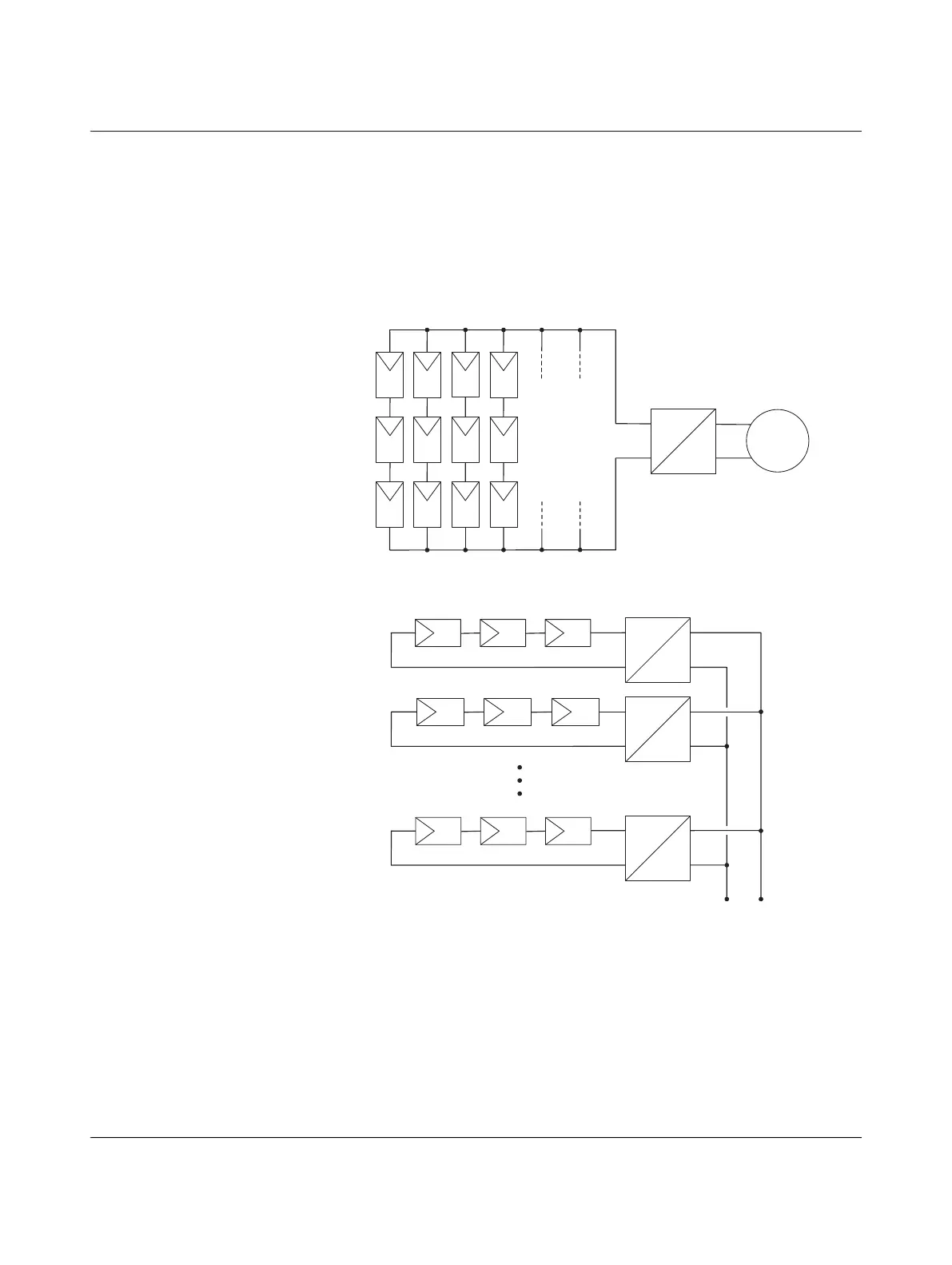

Figure 2-1 PV generator with central inverter
Figure 2-2 Generator with string inverters
Inverters with and without an internal transformer are used in photovoltaic systems. This re-
sults in various electrical characteristics, which must be considered with regard to the de-
sign of the system, cabling, the use of other devices, and the grounding concept.
Inverters with transformers, for example, can be arranged without grounding as well as with
grounding on the negative or positive side.
+
–
