Power manual for signal conditioners and MINI Analog, MINI Analog Pro, MACX Analog measuring transducers

22 / 56 Phoenix Contact

105810_en_02

3.4 Monitoring the supply voltage using

MINI MCR-SL-FM-RC... fault signaling modules

As described in Section 3.2 on page 14, the MINI Analog modules can be supplied with

power via a MINI MCR-SL-PTB power terminal. If the MINI MCR-SL-PTB-FM... modules

(item no. 2864134) and the MINI MCR-SL-FM-RC... error message modules

(item no. 2902961) are used, it is possible to establish redundant monitoring of the

supply voltage. Mount a power terminal and a fault signaling module of the same shape

side by side without spacing, see Figure 3-9 on page 22.

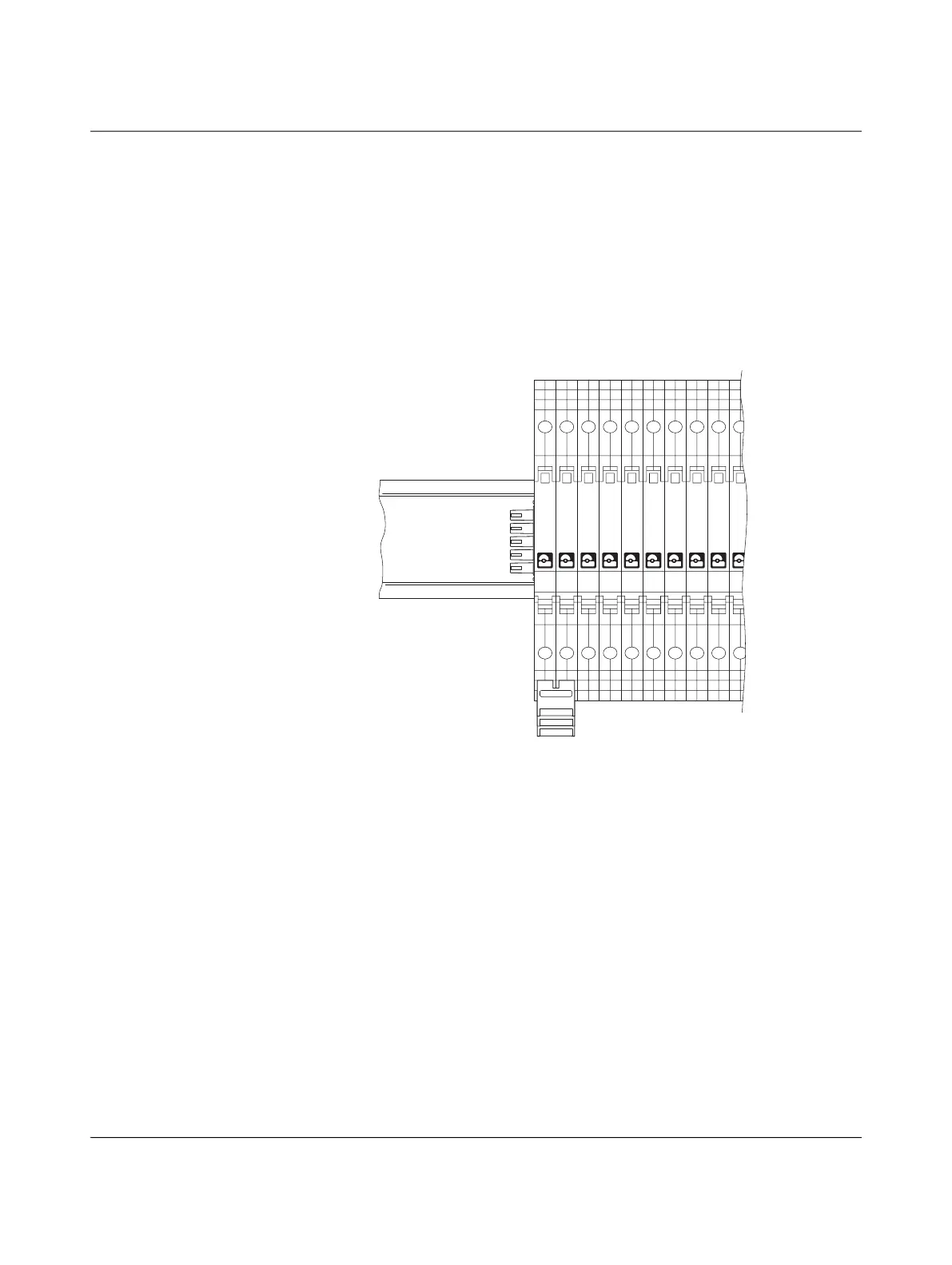

Figure 3-9 Redundancy monitoring of the supply voltage

Then bridge terminal blocks 1 to 4 of the power terminal with terminals 1 to 4 of the fault

signaling module. Use the FBSR 2-6 plug-in bridges supplied with the fault signaling

module (plug-in bridge item no. 3033715) or normal cables. Now if one of the power

supplies fails, this is indicated via an N/C contact. For additional mechanical redundancy,

as shown in Section 3.2.2 on page 18, two power terminals and two fault signaling

modules can be used, see Figure 3-10 on page 23. Again only one supply may be

connected to each power terminal here. In the second fault signaling module, fault

monitoring of external measuring transducers must be deactivated because evaluation

can only take place via one module in a group.

MINI MCR-SL-PTB-FM

8

7

6

5

1

2

3

4

MINI MCR-SL-FM-RC

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PT100-UI

8

7

6

5

1

2

3

4

MINI MCR-SL-PTB-FM

MINI MCR-SL-FM-RC-NC

MINI MCR-SL-PT100-UI-200-NC
