MINI Analog supply options

105810_en_02 Phoenix Contact 19 / 56

The total current consumption of 1914 mA is less than the maximum permissible current

for supply via the MINI MCR-SL-PTB…. The fuses connected upstream of both power

terminals should each have a nominal current of 2.5 A. In order to ensure the guaranteed

tripping of the fuses in the event of a short circuit, the supply with 24 V DC in this example

is provided by two QUINT4-PS/1AC/24DC/3.8/SC (item no. 2904599). The structure is

shown in Figure 3-7 on page 19. The wiring is as shown in Figure 3-6 on page 18.

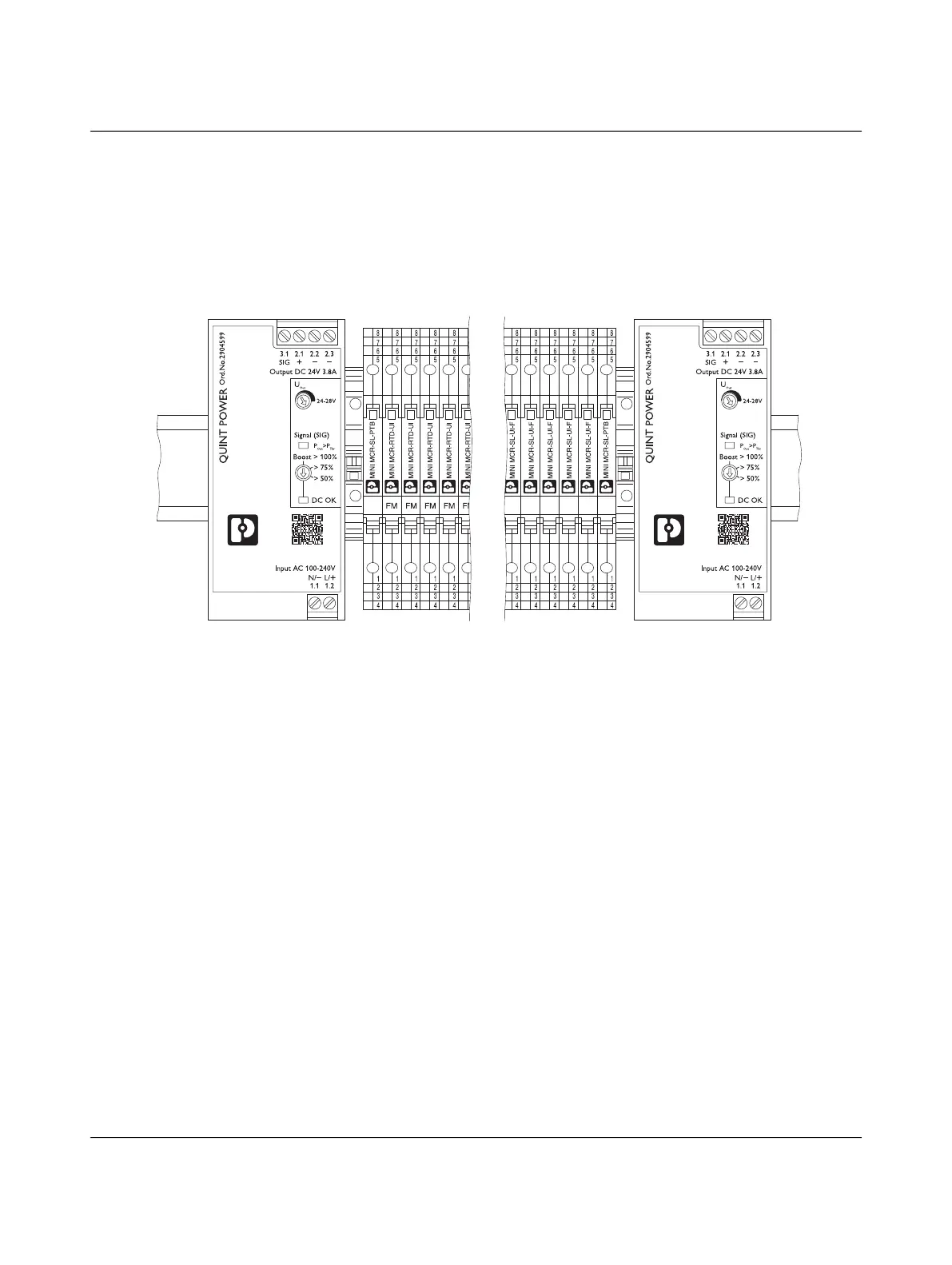

Figure 3-7 Example for the supply via two MINI MCR-SL-PTB… power terminals

The failure of either or both of the power terminals can be indicated by means of an

N/C contact by using a MINI MCR-SL-FM-RC-NC(-SP) fault signaling module and the

MINI MCR-SL-PTB-FM(-SP) power terminals.

QUINT4-PS/1AC/24DC/3.8/SC

UT 4-HESILED 24 (5X20)

MINI MCR-SL-PTB

MINI MCR-RTD-UI-NC

MINI MCR-SL-PTB

MINI MCR-SL-UI-F

UT 4-HESILED 24 (5X20)
