Diagnostic and status indicators

6452_en_11 Phoenix Contact 97 / 188

Assignment between status LED and input/output

The figure shows the general principle of the assignment of a status LED to its input or

output.

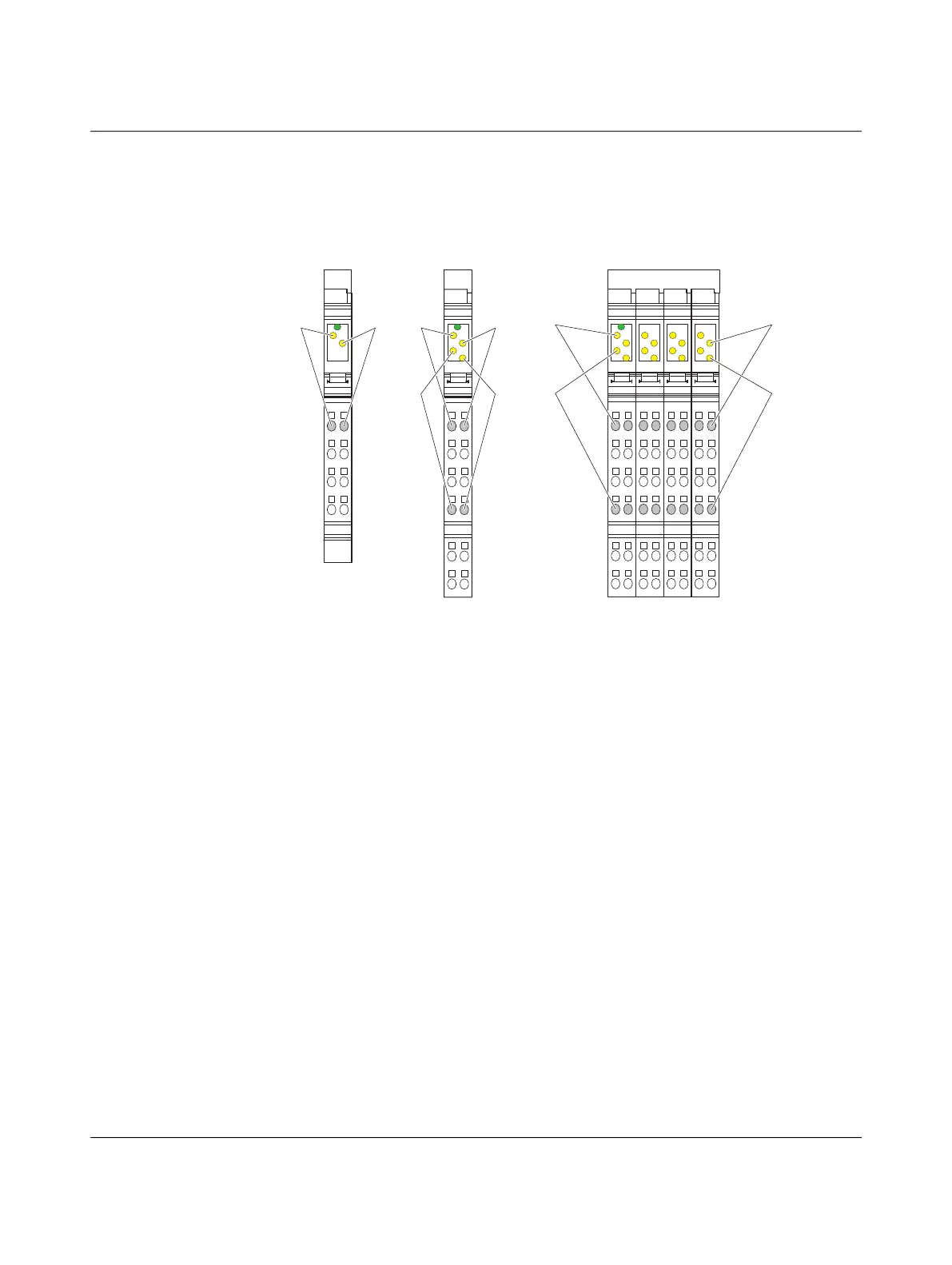

Figure 9-3 Assignment between status LED and input/output

Please refer to Section “Function identification” on page 62 for an explanation of the

numbering.

With an 8-slot terminal, the LEDs of a slot belong to the terminal points of this slot. Every

slot can be considered a 2-slot terminal.

For a 2-slot terminal with four inputs or outputs (middle example in Figure 9-3), the fol-

lowing LEDs belong to the following terminal points:

On the 8-slot terminal in Figure 9-3 and Figure 9-4, e.g., with 4/2, LED 2 on slot 4 is indi-

cated. The LED belongs to input 14 at terminal point 4.2.1 (slot 4, terminal point 2.1).

LED 1 Terminal point 1.1

LED 2 Terminal point 2.1

LED 3 Terminal point 1.4

LED 4 Terminal point 2.4

1

2

3

4

D

DI16

1

2

3

4

1

2

3

4

1

2

3

4

1

2

3

4

1/1

1/3

4/2

4/4

1

2

D

DI 2

12

1

2

3

4

D

DI4

12

3

4
