IL SYS INST UM E

76 / 188 Phoenix Contact

6452_en_11

Internal jumpering and

special features of the ter-

minal points

Depending on their function, the connectors may support internal jumpering. In addition,

some terminal points are not used or are indeed closed.

NOTE: Disregarding this warning may result in malfunction

To avoid malfunction, only snap the connector onto an appropriate terminal. Refer

to the relevant terminal-specific data sheet to select the correct connectors.

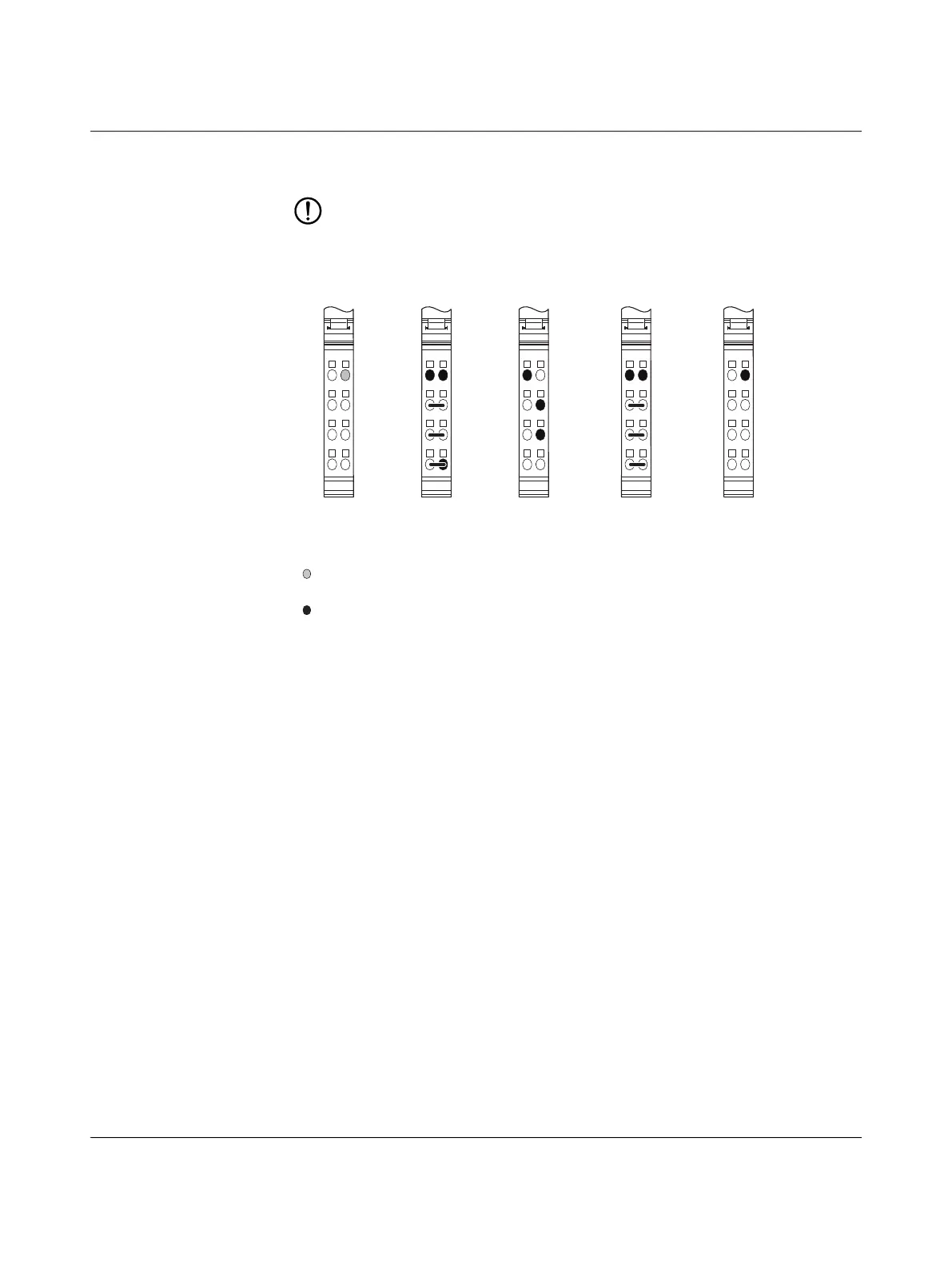

Figure 7-5 Internal jumpering and special features of connectors for the

120 V AC/230 V AC area

A Gray connector for plugging onto the left-hand side of a power terminal (start of

the AC area)

B Gray connector for supplying the supply voltage

C Gray connector for connecting the I/O

D Gray connector for connecting the cables to a relay terminal

E Gray connector for plugging onto an end terminal

X Connector contact not present

Terminal point without metal contact

Terminal point closed

BA

X

C

X

D

E

X

1.1

2.1

1.2

2.2

1.3

2.3

1.4

2.4

1.1

2.1

1.2

2.2

1.3

2.3

1.4

2.4

1.1

2.1

1.2

2.2

1.3

2.3

1.4

2.4

1.1

2.1

1.2

2.2

1.3

2.3

1.4

2.4

1.1

2.1

1.2

2.2

1.3

2.3

1.4

2.4
