Inline connectors

6452_en_11 Phoenix Contact 71 / 188

7 Inline connectors

Inline connectors are used on Inline terminals and Inline Block IO modules.

7.1 Basic structure and dimensions of Inline connec-

tors

Connector width The connectors have a width of two terminal points.

Connector colors To distinguish between the functions and voltage areas, the connectors have been as-

signed different colors:

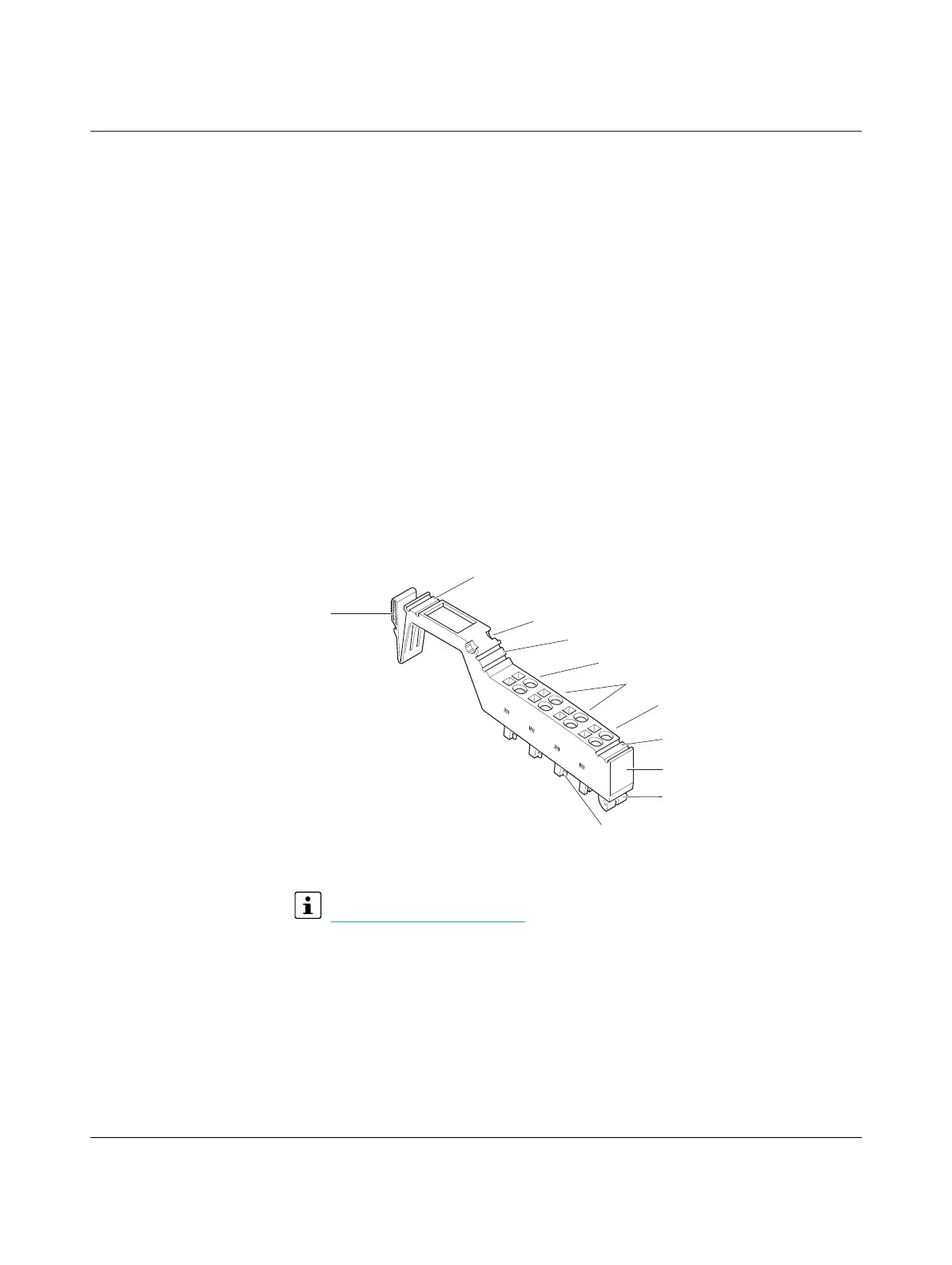

Basic structure Figure 7-1 Basic structure of an Inline connector

The components required for marking are listed on the item page at

phoenixcontact.com/products

.

Green Connectors for extra-low voltage terminals (24 V DC, excluding

power/segment terminals)

Black Connectors for extra-low voltage power/segment terminals (24 V DC)

Gray Connectors for terminals in the 120 V AC and 230 V AC areas (not required

for Inline Block IO modules)

Slot encoding

ZBFM field for connectormarking

Keyway for attaching fieldmarking

Back connector

shaft latching

ZBFM field for signal 1/2marking

ZBFM field for signal 3/4marking

Front

connector shaft latching

Signal terminals 1/2

FE or signal terminals 3/4

Potential terminals

Connector

ZBFM: Zack marker sheets, flat
