IL SYS INST UM E
70 / 188 Phoenix Contact
6452_en_11
6.2.3 Housing dimensions
Today, small I/O stations are frequently installed in 80 mm standard control boxes.
Inline Block IO modules are designed so that they can be used in this type of control box.
The terminal housing dimensions are determined by the dimensions of the electronic
module and the dimensions of the connector.
The width of the electronic modules depends on the function and is either 95 mm or
156 mm.
When a connector is plugged in, each terminal has a depth of 55 mm.
The height of the terminal depends on the connector used and is a maximum of 141 mm.
For the dimensions of the modules, please refer to the relevant module-specific data
sheet.

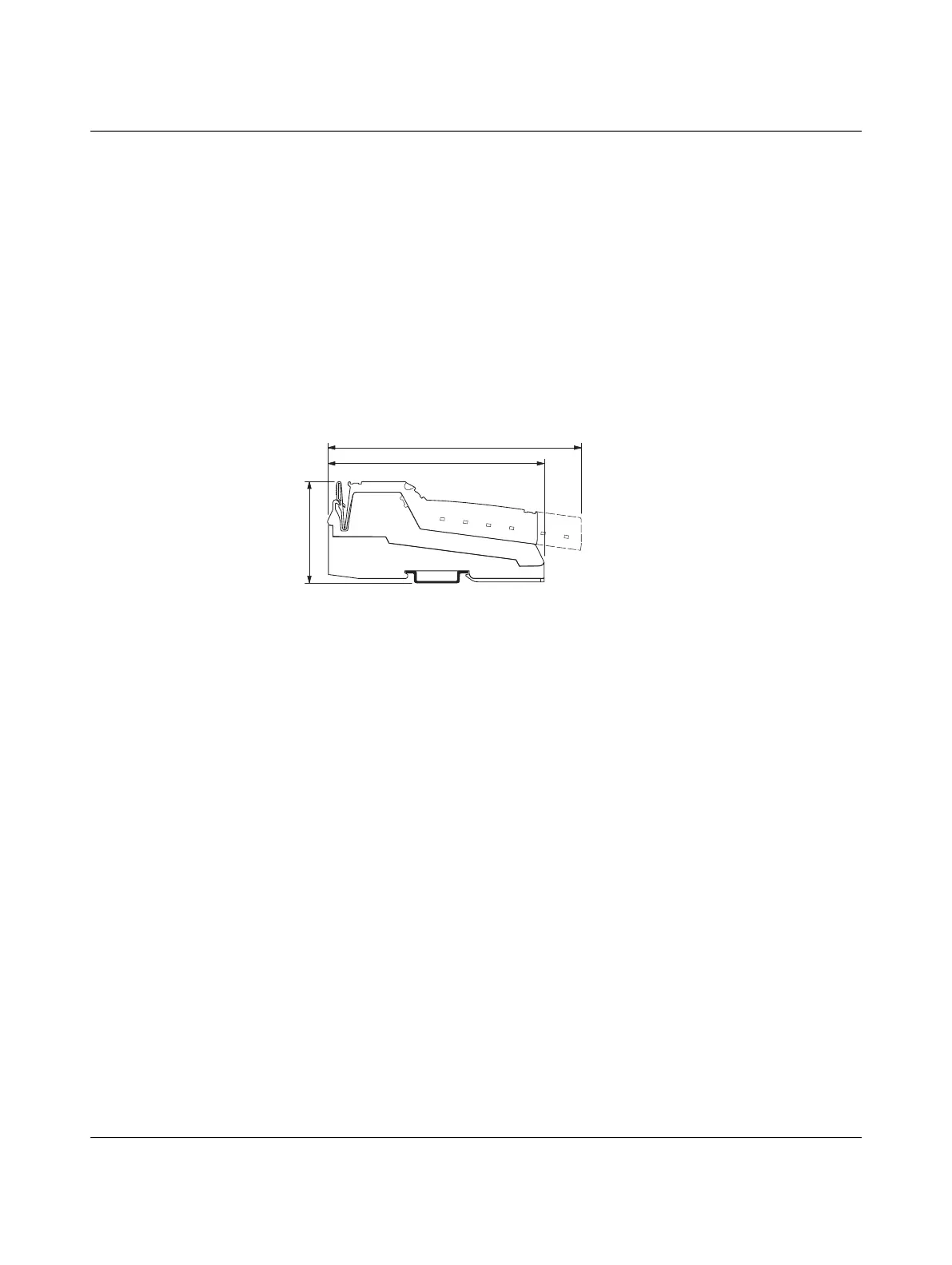

Figure 6-17 Maximum dimensions (in mm)
55
141
120
