IL SYS INST UM E

68 / 188 Phoenix Contact

6452_en_11

6.2 Structure and dimensions of Inline Block IO

modules (no longer in product range)

6.2.1 Basic structure of modules

Regardless of the function, an Inline Block IO module consists of the electronic module

and the snap-on connectors (Inline connectors).

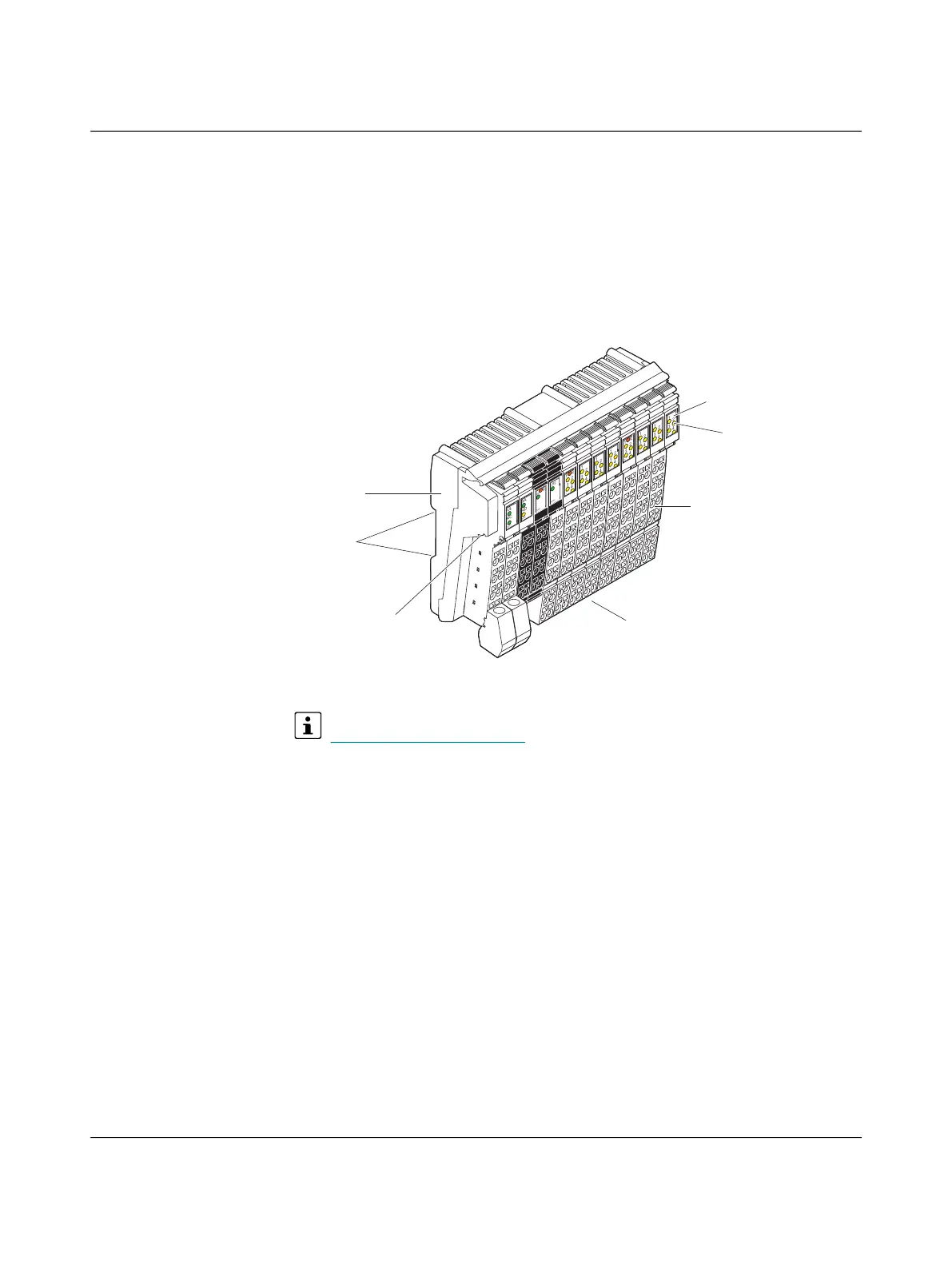

Figure 6-15 Basic structure of an Inline Block IO module

The components required for marking can be found at

phoenixcontact.com/products

.

Electronic module The electronic module holds the entire electronics for an Inline Block IO module.

Pressing the snap-on mechanism releases the latching, enabling the terminal to be re-

moved by pulling it straight back from the DIN rail (see Section “Basic information about

mounting” on page 105).

Connector The I/O or supply voltages are connected using a pluggable connector. For more detailed

information about the Inline connectors, please refer to Section 7, “Inline connectors”.

1

2

3

4

E

I1

1

2

3

4

I2

1

2

3

4

I3

1

2

3

4

I4

U

L

RC

BUS1

BA

RD

BUS2

US1

PWR1

E

U

S

2

PWR2

1

2

3

4

E

I5

1

2

3

4

I6

1

2

3

4

I7

1

2

3

4

I8

Ele tronics modulec

Connector

ZBFM fieldmarking

for module marking

Colored

function encoding

Diagnostic and status

indicators

Latching on

DIN rail

Snap-on mechanism

ZBFM: Zack marker sheets, flat
