Structure and dimensions

6452_en_11 Phoenix Contact 63 / 188

The following colors indicate the functions:

Identification of transmis-

sion speed

Terminals with a transmission speed of 500 kbps have solid color-coding.

Terminals with a transmission speed of 2 Mbps are identified by a white stripe at the level

of the D LED.

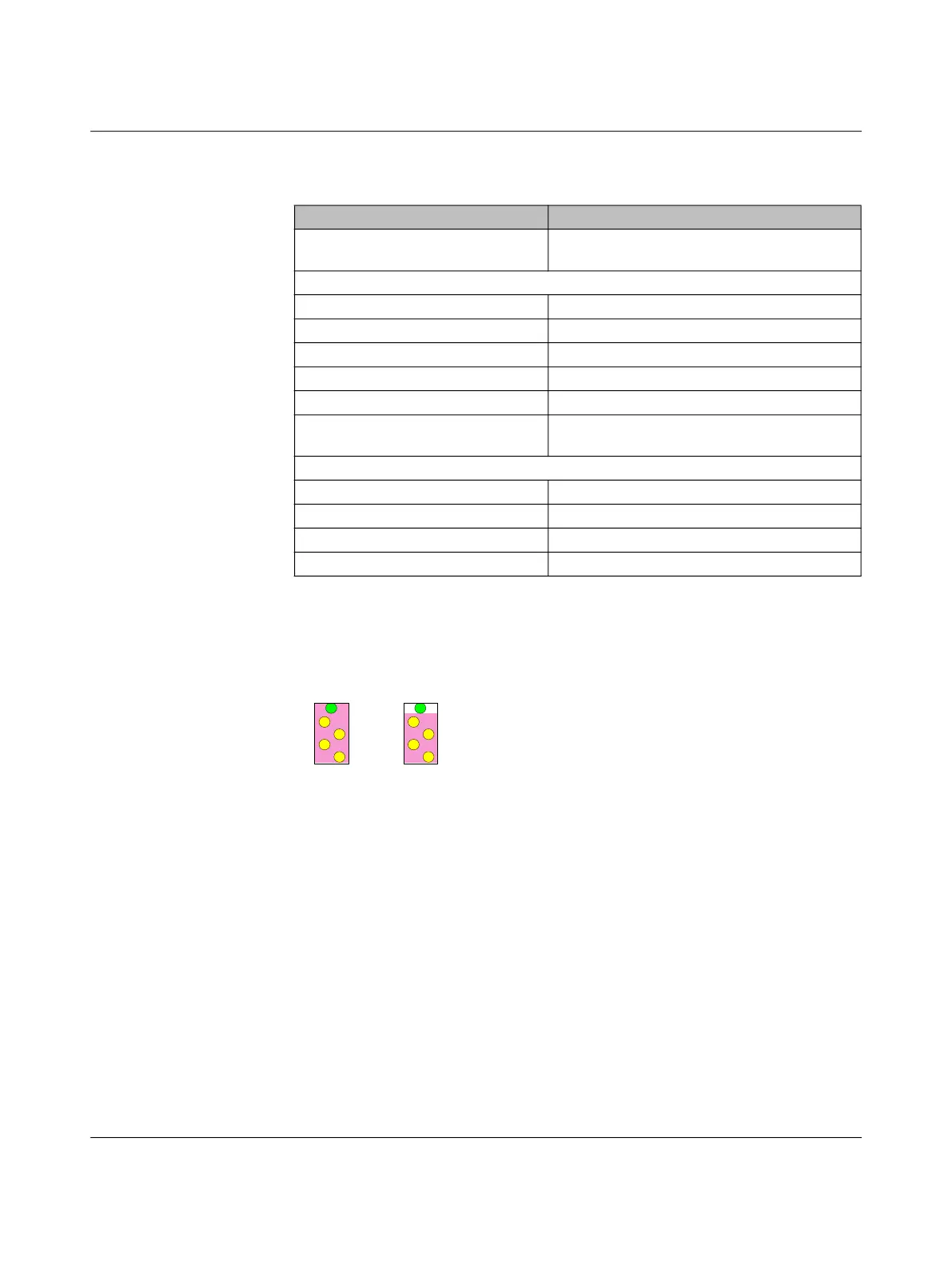

Figure 6-6 Identification of transmission speed

6.1.8 Housing dimensions of terminals in the 24 V DC and

120 V AC/230 V AC areas

Today, small I/O stations are frequently installed in 80 mm standard control boxes. Inline

terminals are designed so that they can be used in this type of control box.

The terminal housing dimensions are determined by the dimensions of the electronics

base and the dimensions of the connector.

The width of the terminal depends on the electronics base used (housing).

When a connector is plugged in, each terminal has a depth of 71.5 mm (exception:

container housing 4).

The height of the terminal depends on the connector used and is a maximum of

140.5 mm.

For the dimensions of the terminals, please refer to the relevant terminal-specific data

sheet.

Table 6-2 Color-coding of terminal function

Color Terminal function

Gray Bus couplers, terminals with remote bus

branch

24 V DC area

Black Supply/segmentation

Light blue, blue Digital input

Pink, red Digital output

Light green, green Analog input, temperature recording

Light yellow, yellow Analog output

Orange Open and closed-loop control, communication,

position detection, programmable terminals

120 V AC/230 V AC area

White Distance

White with lightning bolt Supply

Dark blue with lightning bolt Digital input

Dark red with lightning bolt Digital output

1

2

D

DO 4

3

4

1

2

D

DO 4

3

4

500 kBit/s

2 MBit/s
