6.1.7 Function identification

Housing The basic fields of application for Inline terminals can be identified by their housing type

or color.

Function identification The area for the diagnostic and status indicators on the terminals is color-coded to enable

visual identification of the functions (1 in Figure 6-5).

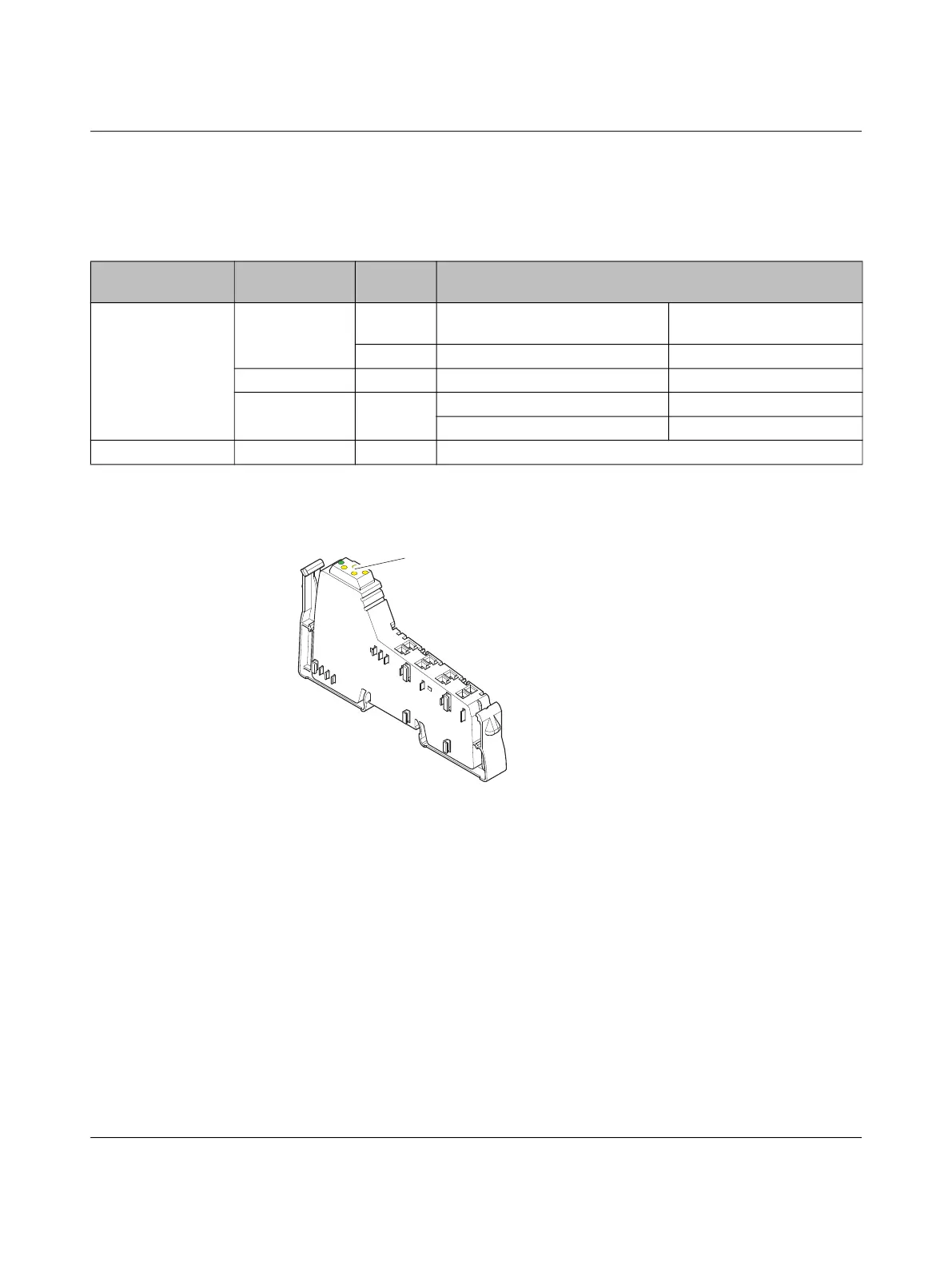

Figure 6-5 Function identification

Table 6-1 Field of application and housing

Housing type Housing color Connec-

tor color

Field of application

Extra-low voltage

housing

Green Green Extra-low voltage (24 V DC) All functions except supply,

safety, DALI

Black Extra-low voltage (24 V DC) Supply, segmentation

Yellow Yellow Extra-low voltage (24 V DC) Safety

Gray Gray Extra-low voltage (24 V DC) DALI

Low voltage (120 V AC/230 V AC) I/O, supply

Power housing Green Power

1

2

3

4

D

DI 4
