IL SYS INST UM E

60 / 188 Phoenix Contact

6452_en_11

The entire electronics for the Inline power-level terminal, the potential routing for the 24

V DC area, and the data routing are located in the power housing.

Potential and data routing The potential and data jumpers that are led through the 24 V DC terminals are not

interrupted by the power-level terminals. For more detailed information about the jump-

ers, please refer to Section “Electrical potential and data routing (Inline)” on page 80.

Release flaps Remove the power-level terminal from the DIN rail by pulling both release flaps (see Sec-

tion “Mounting/removing power-level terminals” on page 122).

Keyway/featherkey con-

nection

The featherkeys are on the left-hand side of the terminal (Figure 6-2). They snap into the

keyways of the next terminal on the left when the terminal is mounted on the DIN rail.

6.1.5 Connectors for power-level terminals

(no longer in product range)

The mains voltage, motor output, brake module, hand-held operator panel mode, and the

enable power level/24 V isolation functions are connected via connectors.

Power connector/

power bridge/

cover

A power connector is available for supplying the mains voltage (IB IL 400 CN-PWR-IN).

A power bridge is available for forwarding the mains voltage between power-level termi-

nals (IB IL 400 CN-BRG).

A cover is available for covering unused connections for the 400 V mains connection of

the Inline power-level terminals (IB IL 400 CN-COV).

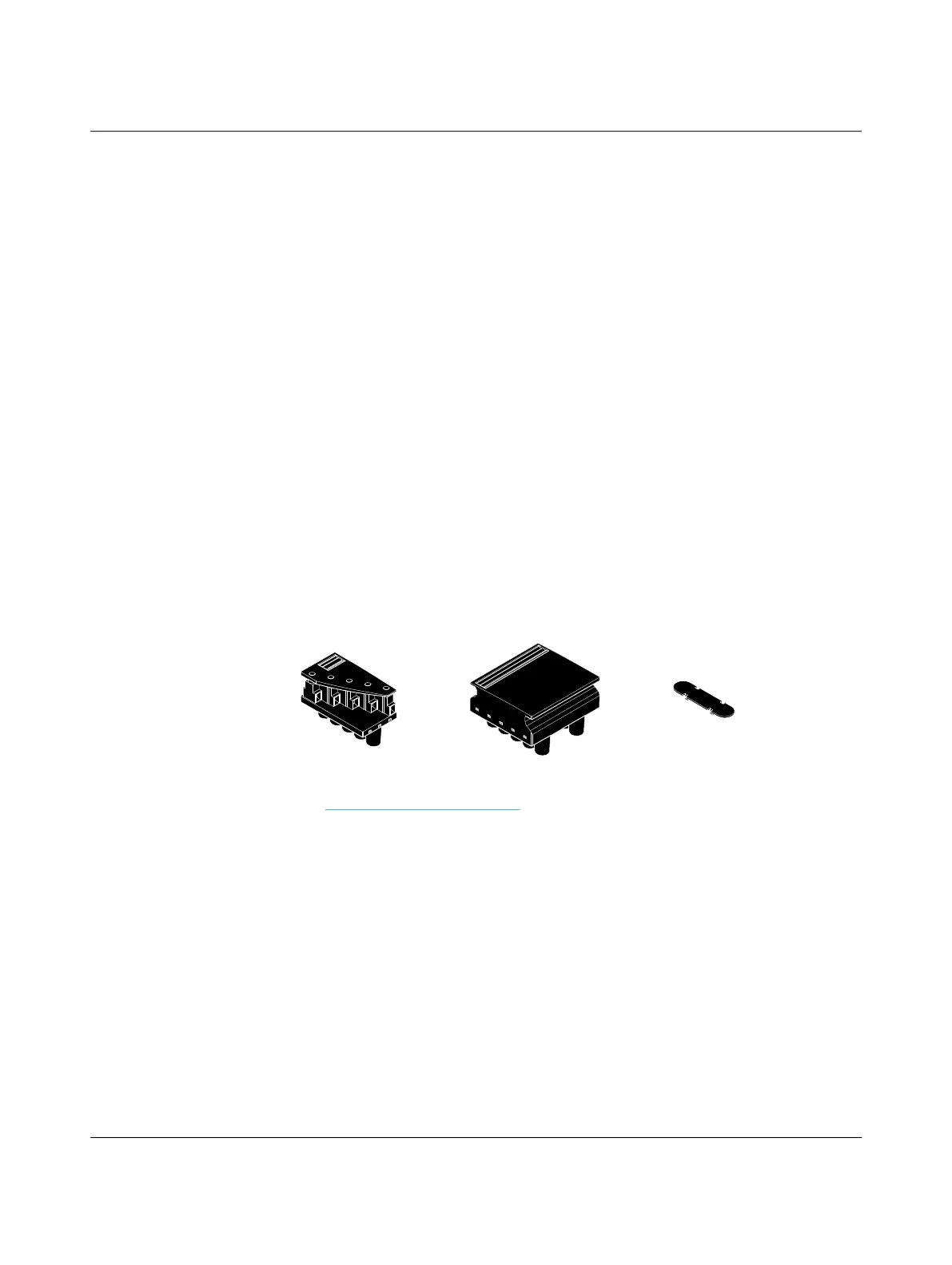

Figure 6-3 Power connector, power bridge, and cover

Other connectors All other connectors are connected using COMBICON or MINI-COMBICON connectors

(see phoenixcontact.com/products

).
