Inline product groups

6452_en_11 Phoenix Contact 41 / 188

5.2.9.2 Safety modules in a bus system with a safe protocol

In addition to the use of bus-independent, conventional safety modules (such

as IB IL SAFE 2-ECO (discontinued)) in an Inline station, safety modules can also be used

in a bus system with a safe protocol (SafetyBridge technology, PROFIsafe). In this type of

bus system, the safe data is transmitted between the safe controller and the safety mod-

ules via the bus using a safe protocol. This means that the same cable is used for both

safety-related communication and standard communication.

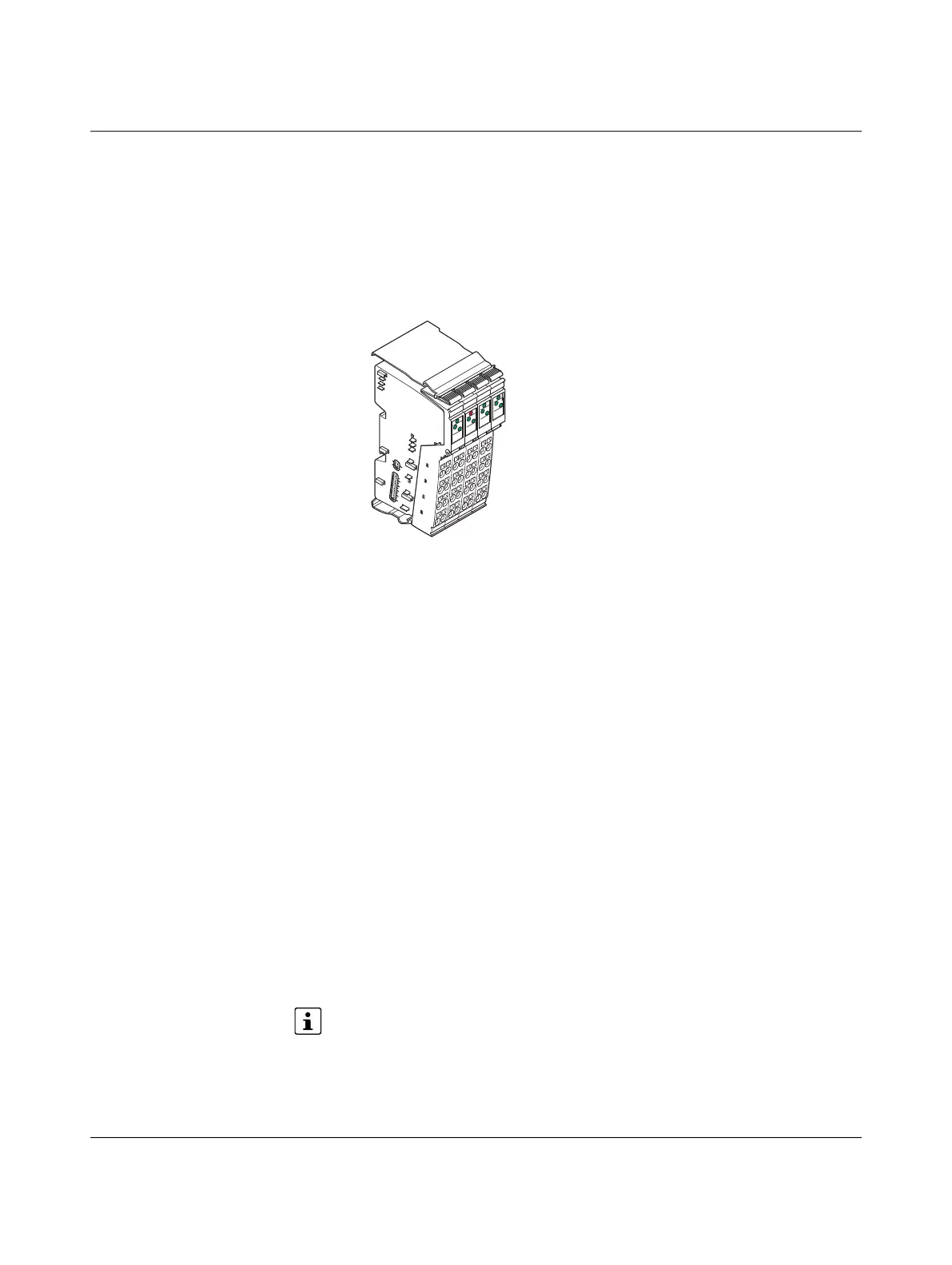

Figure 5-12 Example of a safety module: IB IL 24 PSDO 8-PAC

SafetyBridge Technology SafetyBridge Technology means that input and output modules exchange safety-related

signals with each other. Since the modules process the safety functions themselves, they

use the standard controller and network only for transport purposes.

Without a safety controller or safe fieldbus system, this is a cost-effective solution for

functional safety in standard applications.

With SafetyBridge Technology, safety functions with the following requirements can be

met:

– up to category 4, PL e according to standard EN ISO 13849-1,

– up to SILCL 3 according to standard EN 62061.

Within the Inline product group, the following safety modules, for example, are available

for SafetyBridge Technology:

– IB IL 24 LPSDO 8-PAC (No longer in product range)

– IB IL 24 LPSDO 8 V2-PAC

– IB IL 24 LPSDO 8 V3-PAC

– IB IL 24 PSDI 8-PAC

– IB IL 24 PSDI 16-PAC

– IB IL 24 PSDO 8-PAC

– IB IL 24 PSDO 4/4-PAC

– IB IL 24 PSDO 4/4-R-PAC

– IB IL 24 PSDOR 4-PAC

– IB IL 24 PSDOR 4-F-PA

For detailed information, please refer to the module-specific user manuals.

1

2

PSDO8

0

1

2

1

2

1

2

3

D

FS

UM

P

9

8

7

6

5

4

3

2

1

0

Mode2

500KBD

2MBD

Mode1
