Inline product groups

6452_en_11 Phoenix Contact 39 / 188

5.2.8 Power-level terminals (no longer in product range)

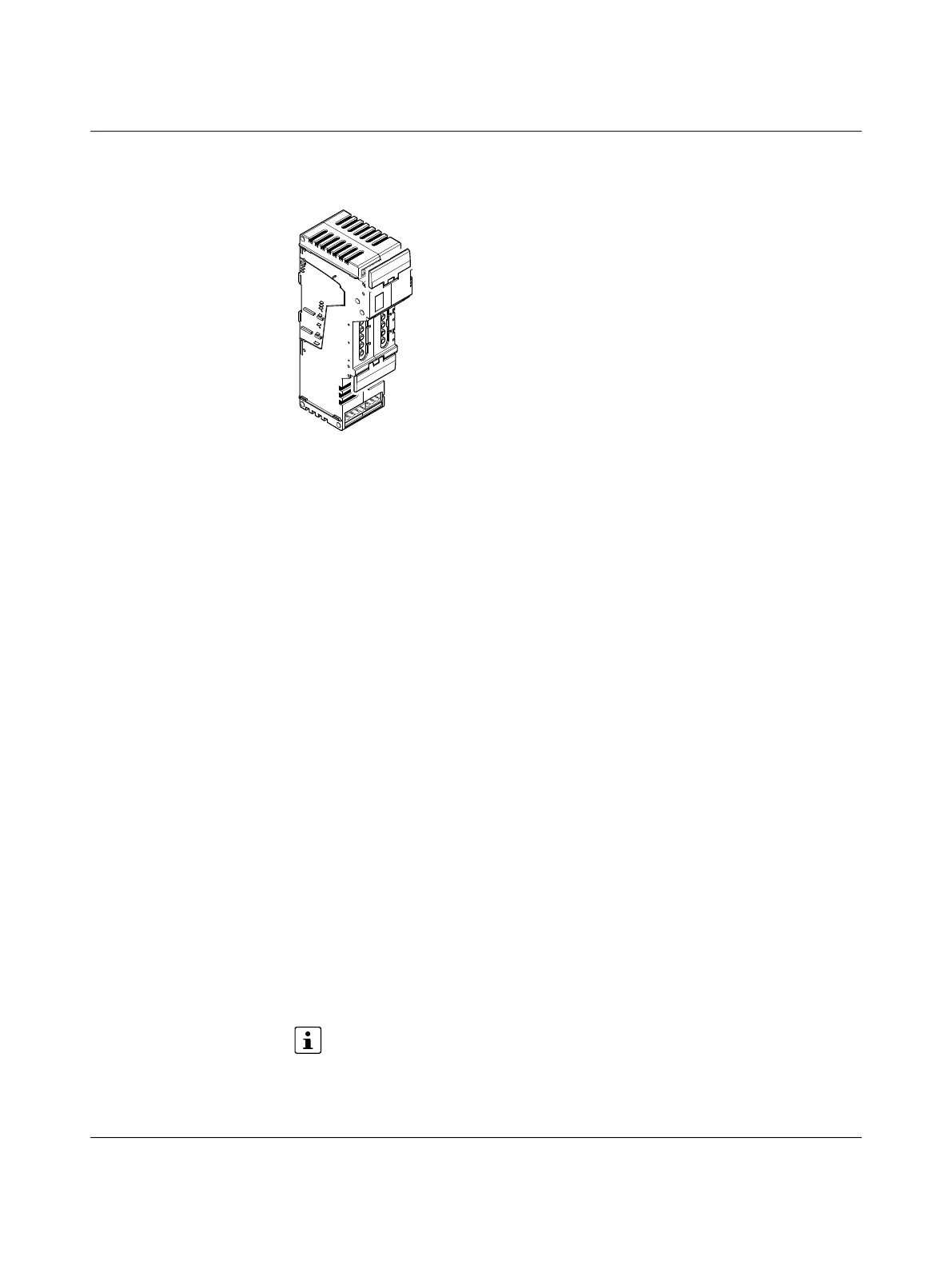

Figure 5-10 Power-level terminal

Different power-level terminals are available for direct switching, protection, and moni-

toring of three-phase standard motors via a bus system:

– Power-level terminal as electronic direct starter

for motors up to 1.5 kW/400 V AC

– Power-level terminal as electromechanical direct starter

for motors up to 3.7 kW/400 V AC

– Power-level terminal as electronic reversing load starter

for motors up to 1.5 kW/400 V AC

Features – Electronic motor protection

– Motor current parameterization via a bus system

– Motor current monitoring

– Quick shutdown

– Mains voltage up to 400 V AC or 520 V AC, maximum (without tolerance in electro-

mechanical versions)

– Nominal output power of 1.5 kW to 3.7 kW depending on the version

– Hand-held operator panel mode

– Can be extended with brake function as an option

– Thermal motor monitoring using connected thermistor terminal

Connections Connections for the mains supply input, remote cabling, motor output, hand-held opera-

tor panel mode, and a brake are available on a power-level terminal.

Carrying capacity of the

jumper contacts

The maximum current carrying capacity of the jumper contacts on the side is specified in

Section “Current and voltage distribution” on page 91.

Protective grounding (PE) The power-level terminal is connected to protective ground via the mains connection.

Voltage area Power-level terminals must be installed in a 24 V DC area within an Inline station. Oper-

ation in a different voltage area is not permitted.

Additional documentation For more detailed information about the function, properties, wiring, and parame-

terization of the individual terminals, please refer to the terminal-specific docu-

mentation.
